Description

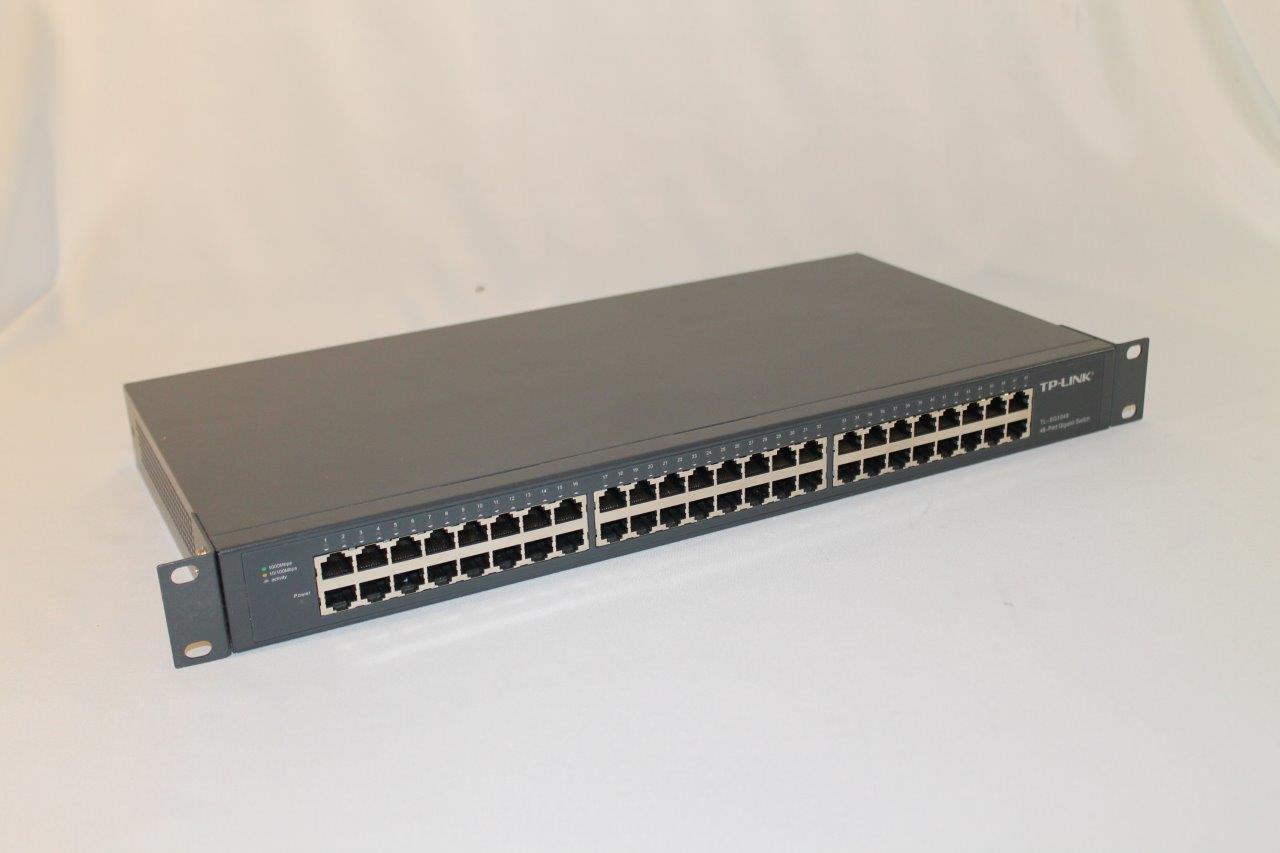

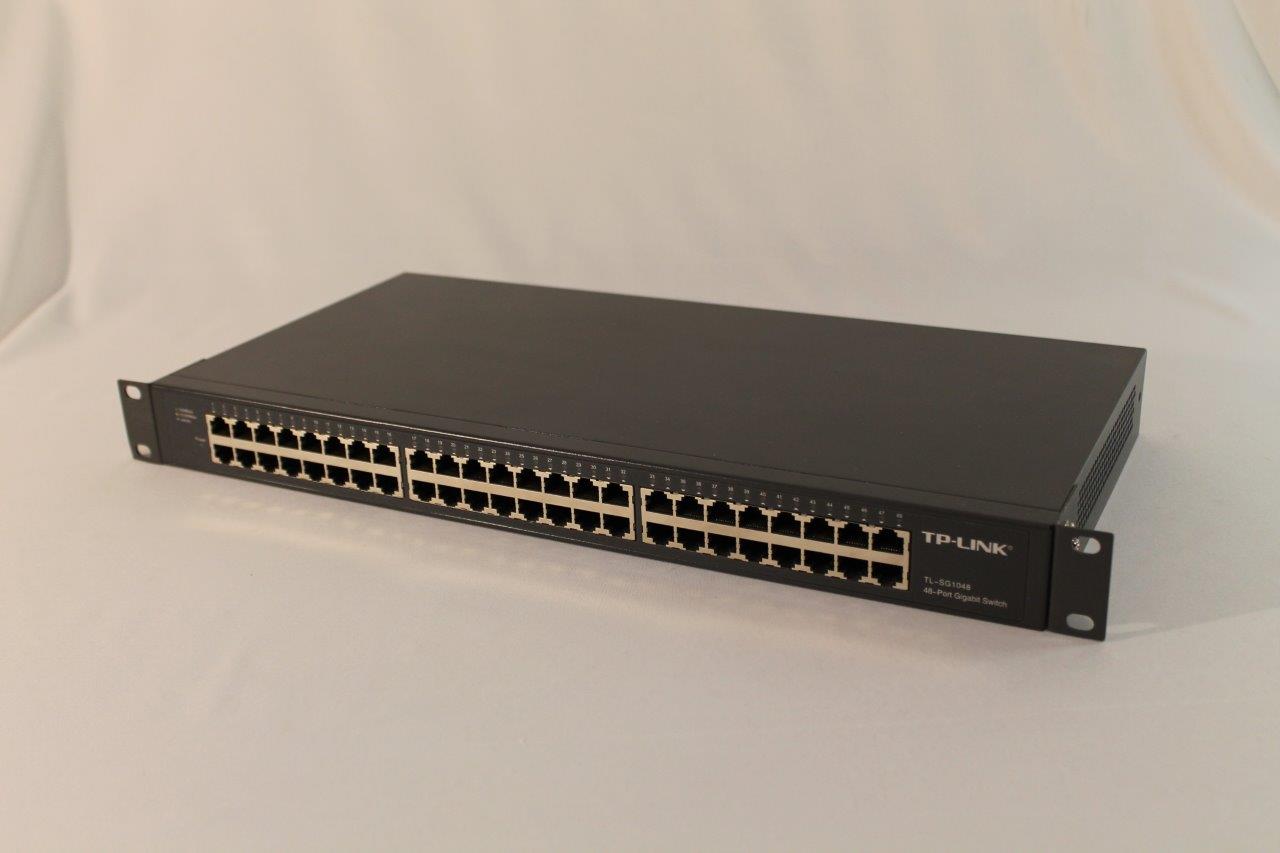

TP-Link TL-SG1048 48-Port Gigabit Rackmount Switch

Description:
– 48 10/100/1000Mbps RJ45 ports
– Innovative energy-efficient technology saves power consumption
– Supports MAC address self-learning and auto MDI/MDIX
– Standard 19-inch rack-mountable steel case
The 48-Port Gigabit Switch TL-SG1048 is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. A reliable, easy-to-use switch without the complexity of management, the TL-SG1048 provides 48 10/100/1000Mbps ports.
Specifications:
HARDWARE FEATURES
Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Interface: 48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Physical Security Lock: No
Power Supply: 100-240VAC, 50/60Hz
Dimensions ( W x D x H ): 17.3 x 8.7 x 1.7 in.; (440 x 220 x 44 mm)
Mounting: 19″ 1U Rack Mountable; (Mounting bracket included)
Max Power Consumption: 32.3W
Max Heat Dissipation: 110.2BTU/h
PERFORMANCE
Switching Capacity: 96Gbps
Packet Forwarding Rate: 71.4Mpps
MAC Address Table: 16K
Buffer Memory: 12Mb
Jumbo Frame: 12KB
Transfer Method: Store-and-Forward
OTHERS
Certification: FCC, CE, RoHS
Package Contents: 48-Port Gigabit Rackmount Switch; Power Cord; Installation Guide; Rackmount Kits; Rubber Feet
Environment: Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
