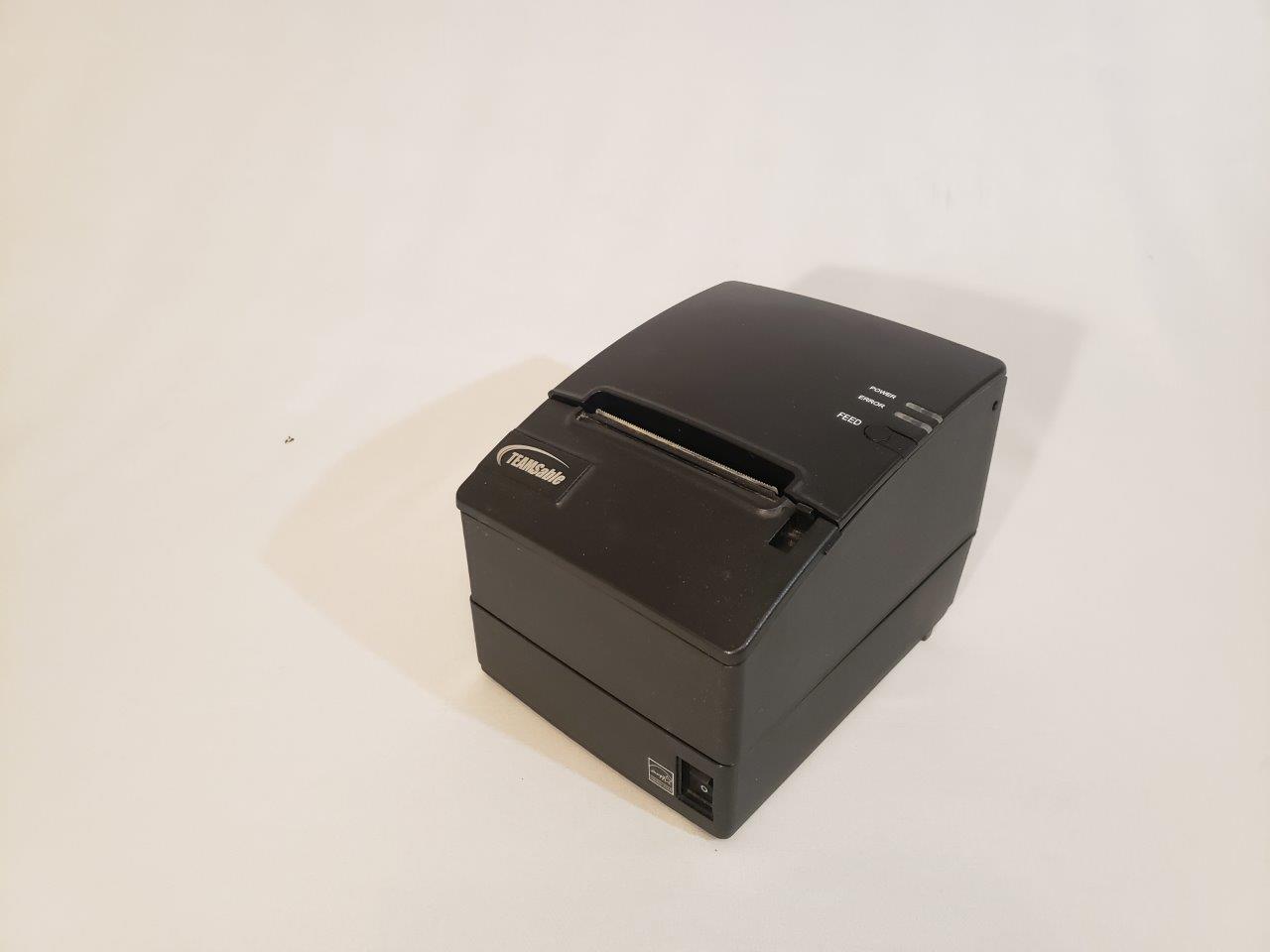

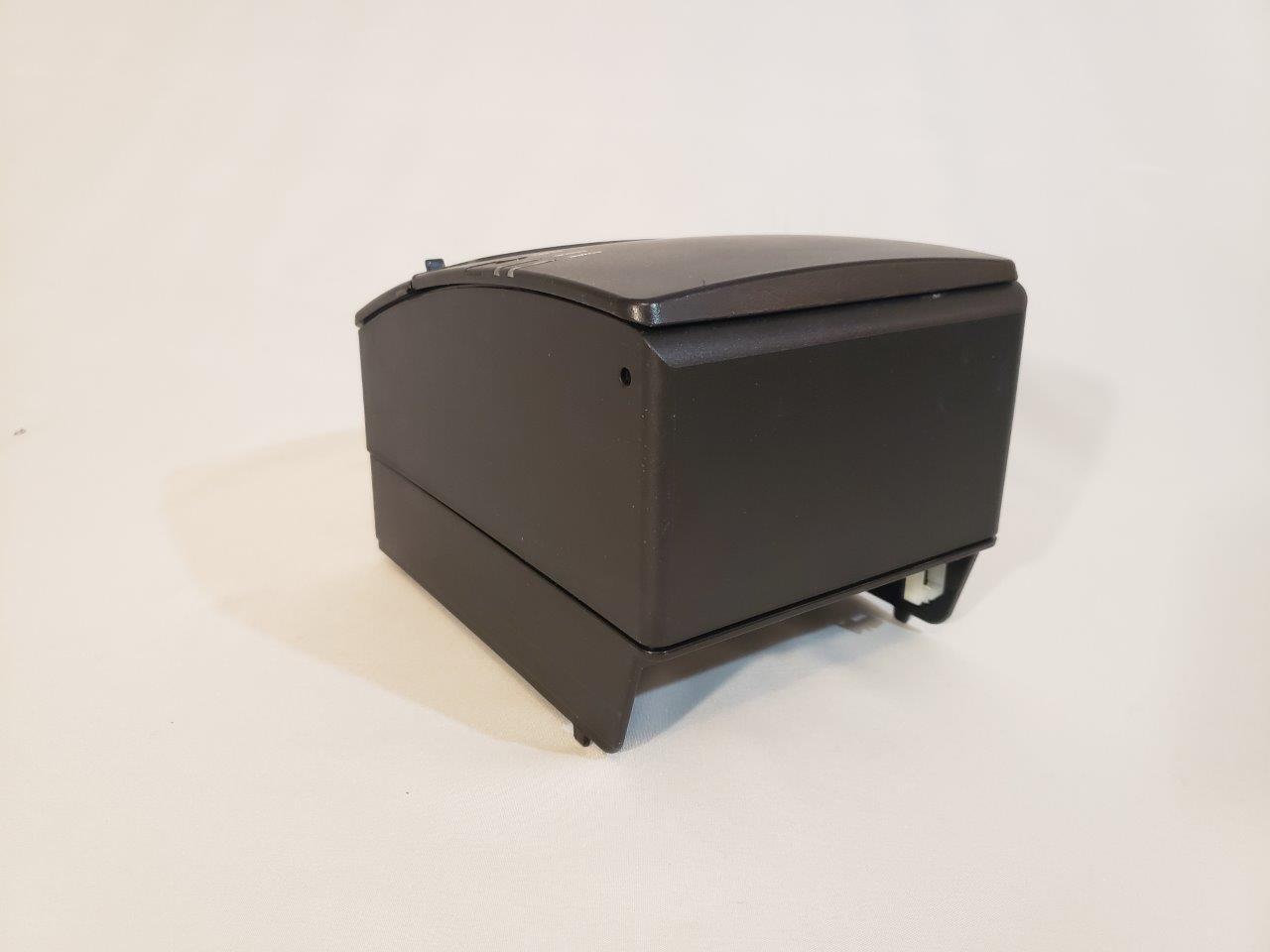

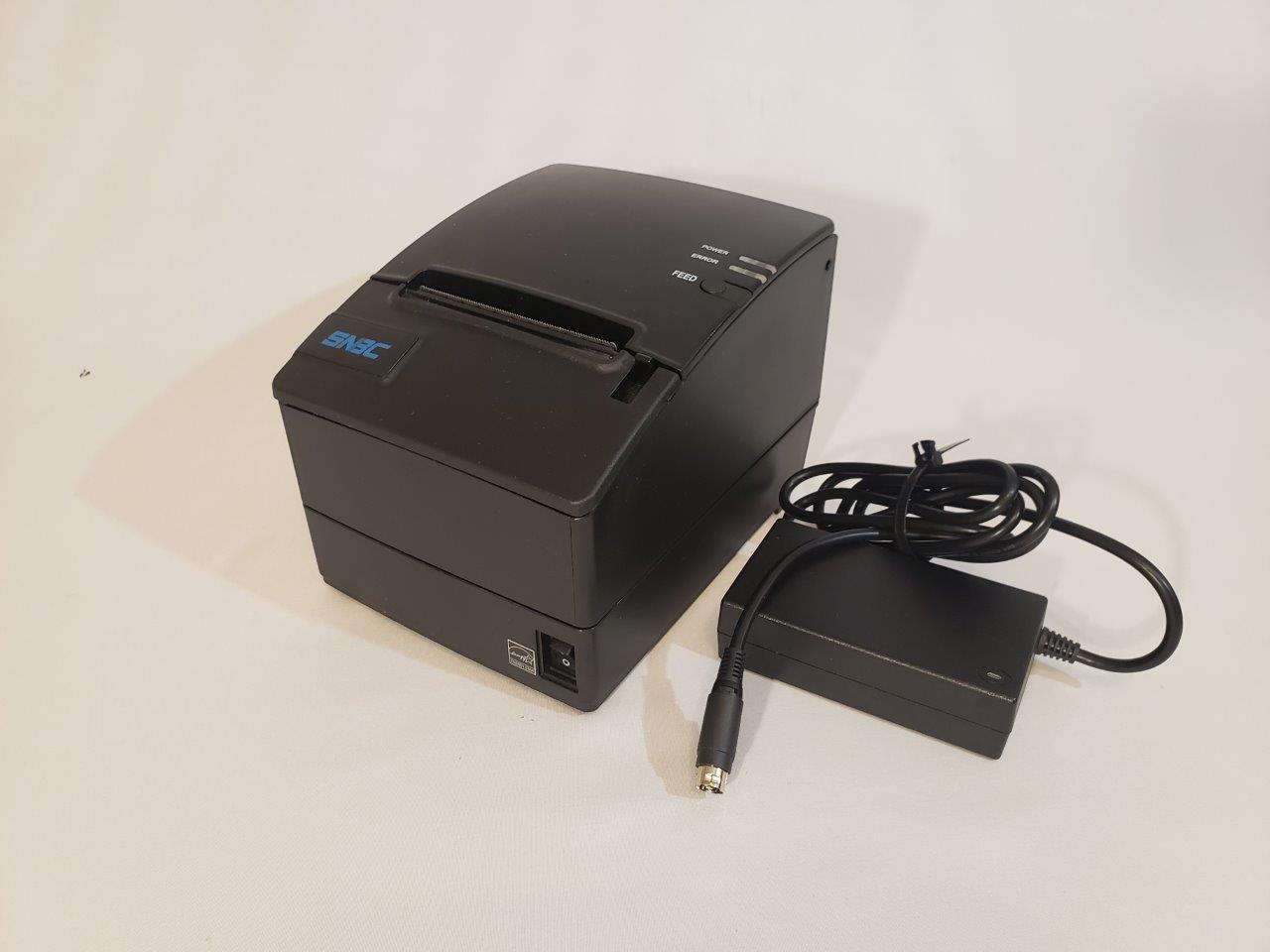

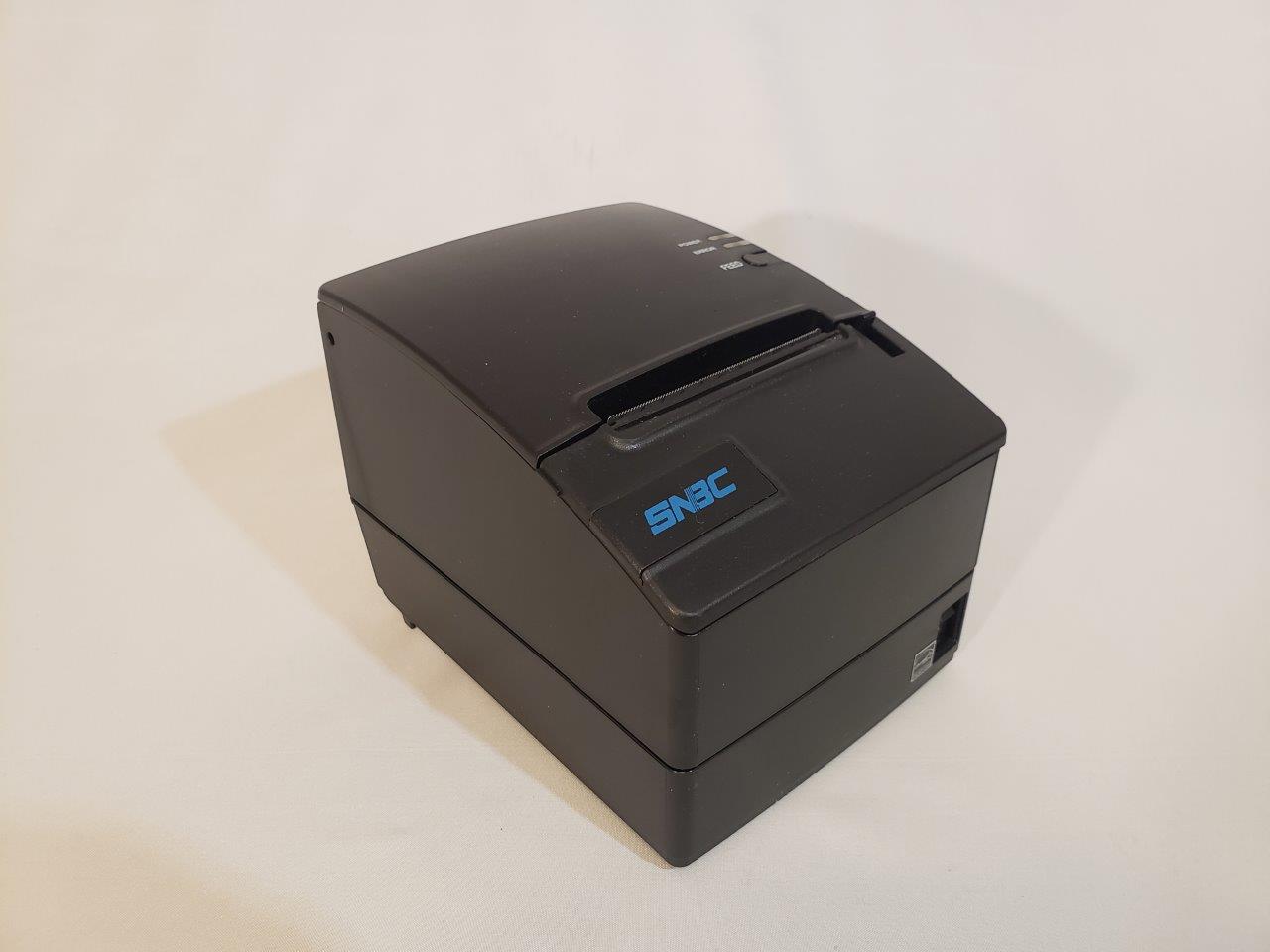

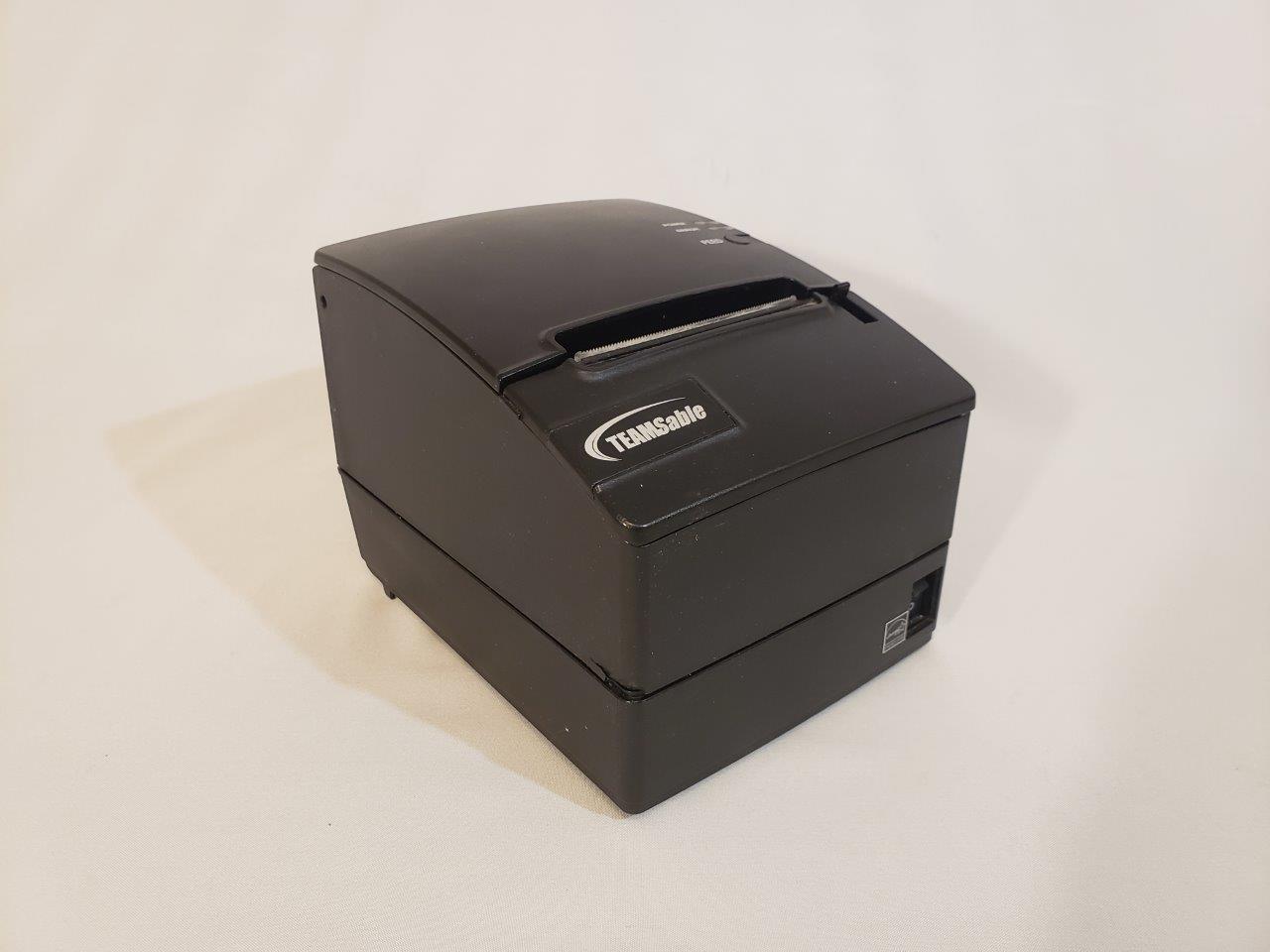

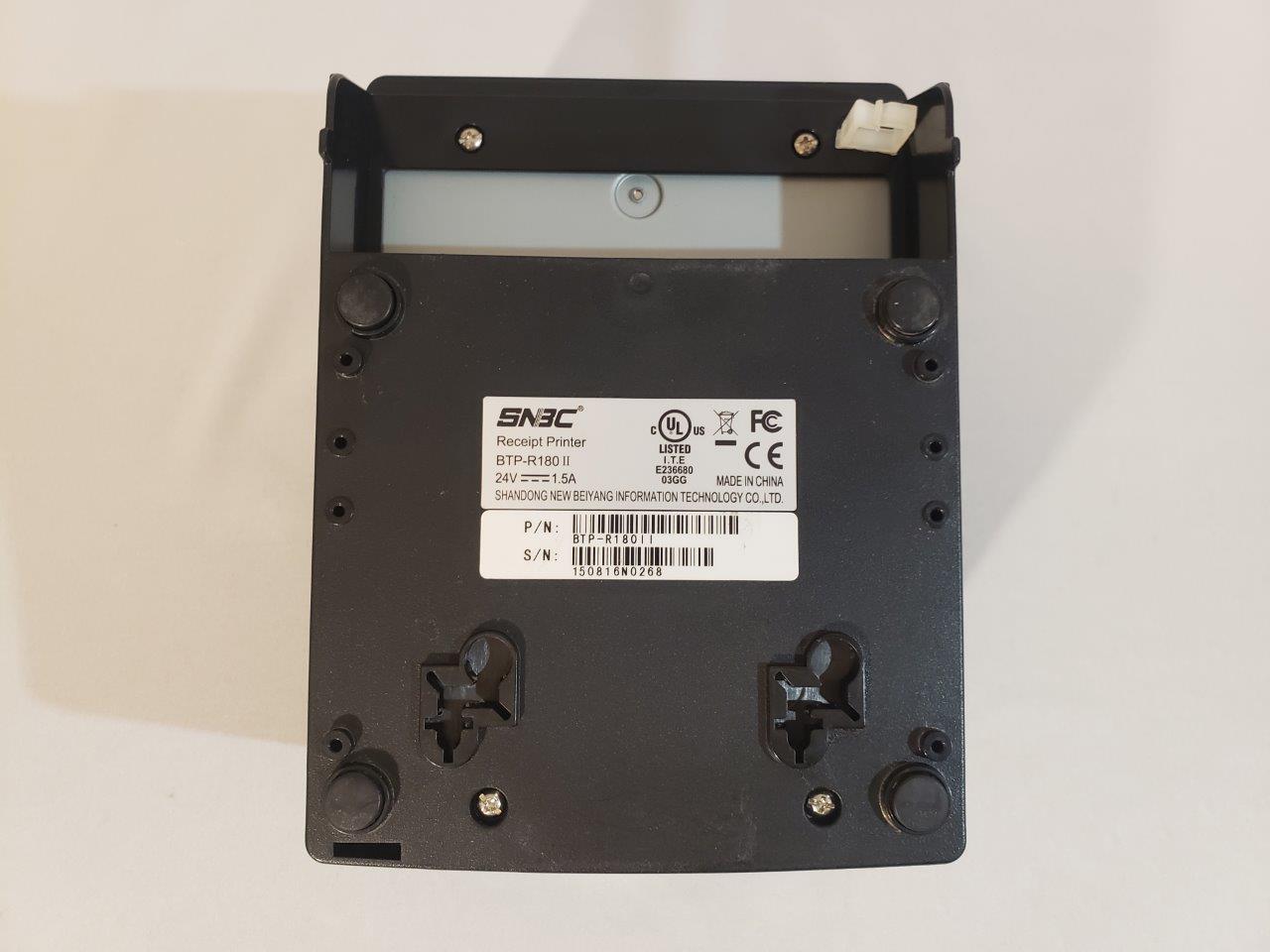

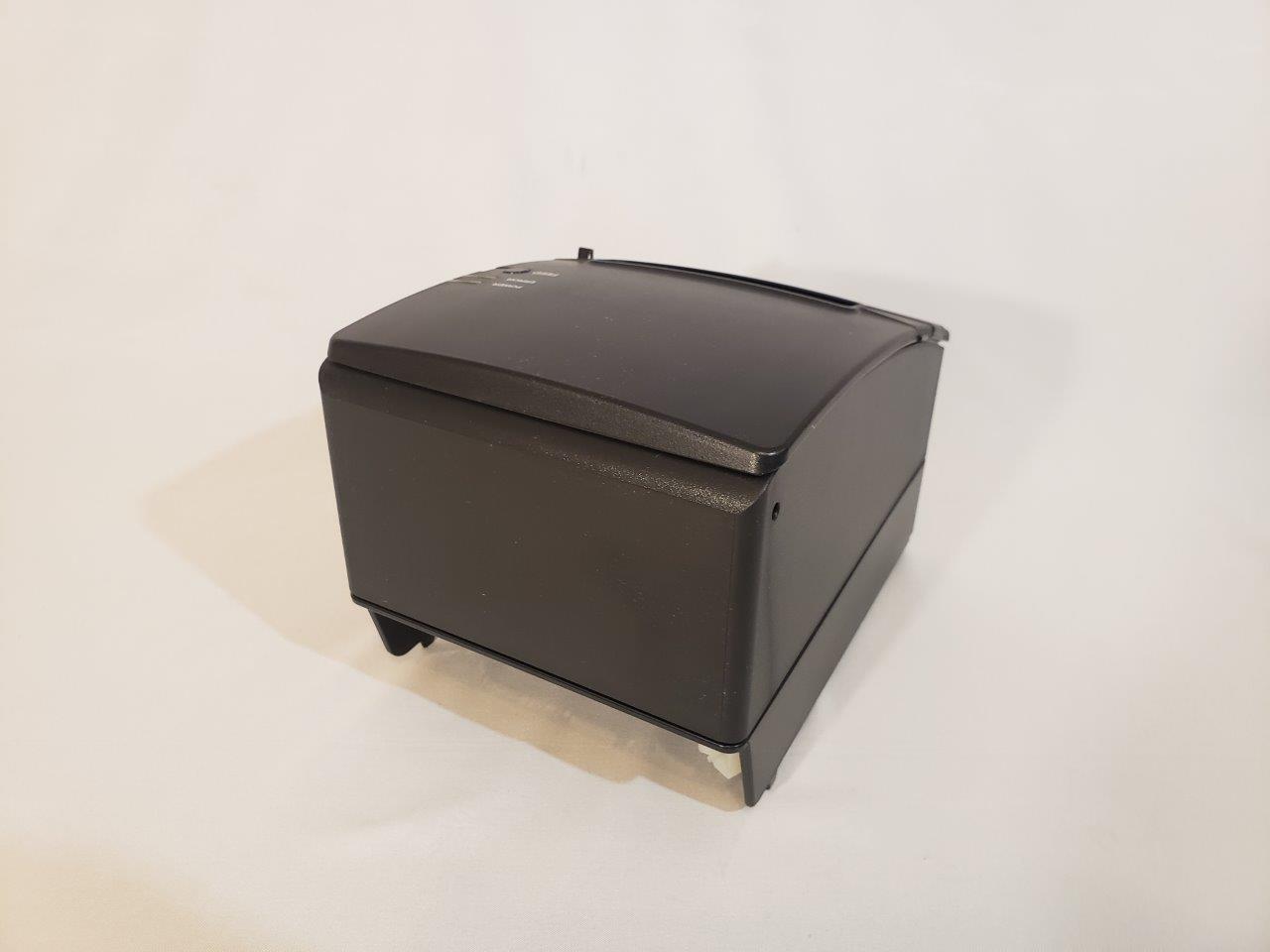

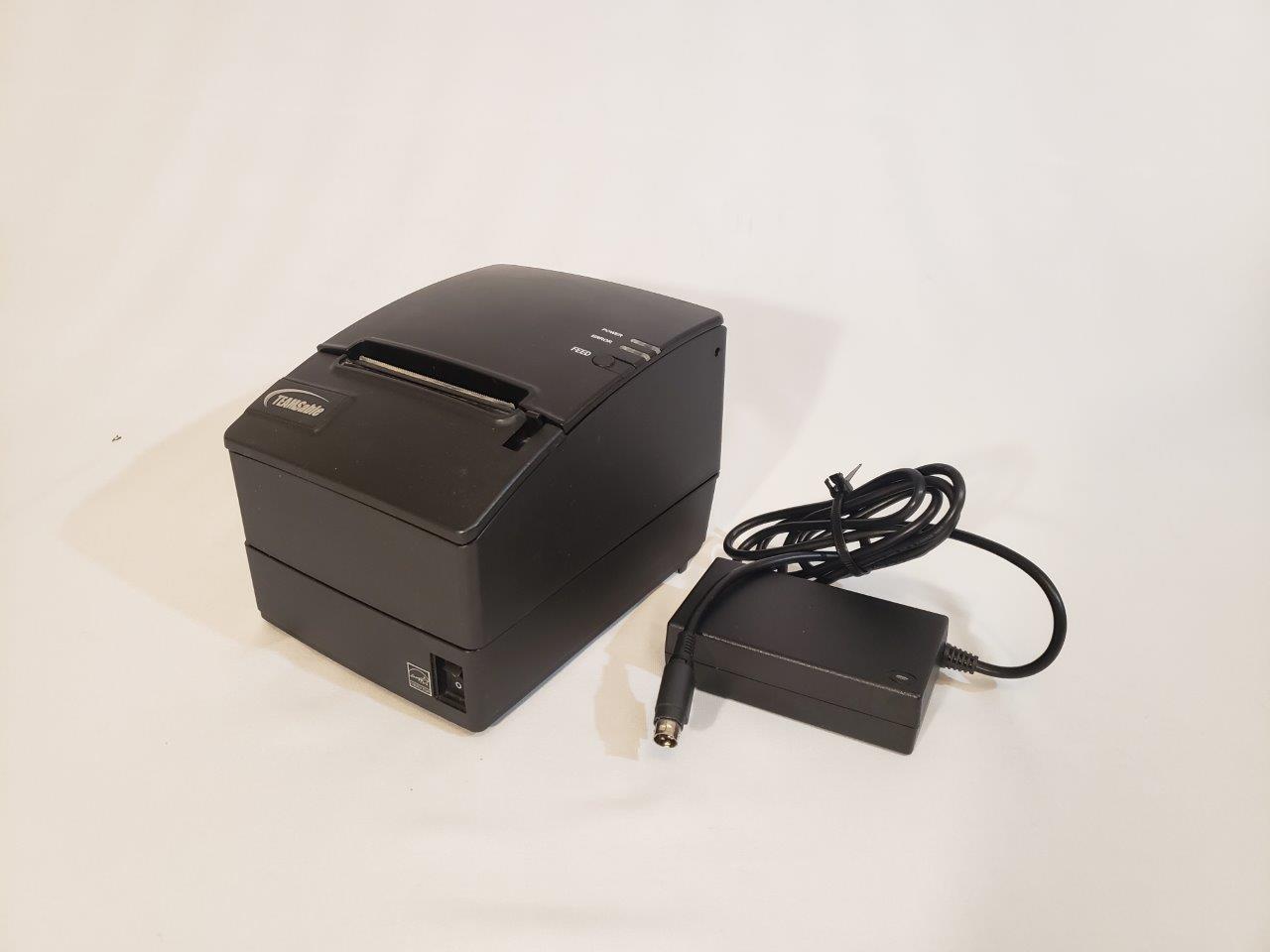

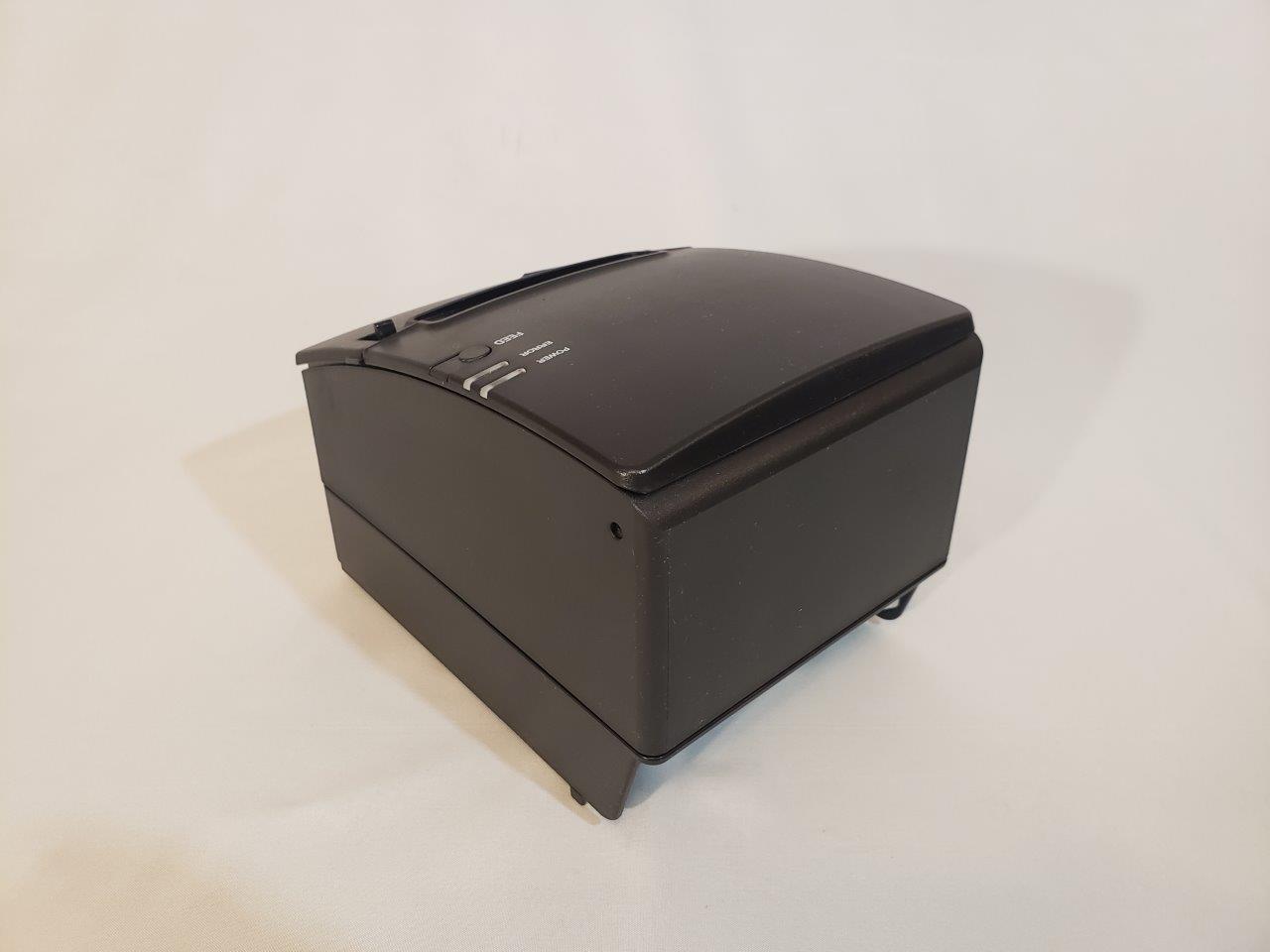

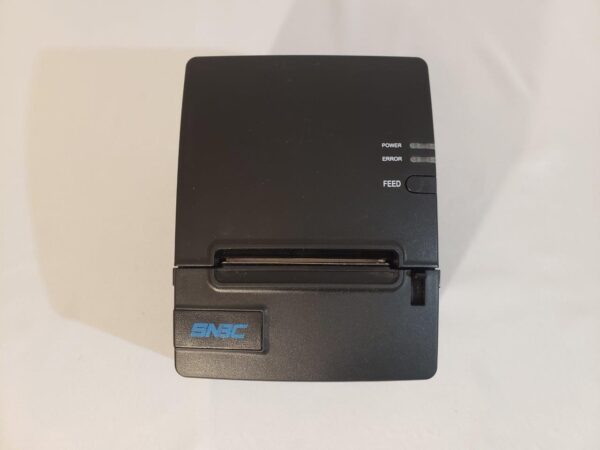

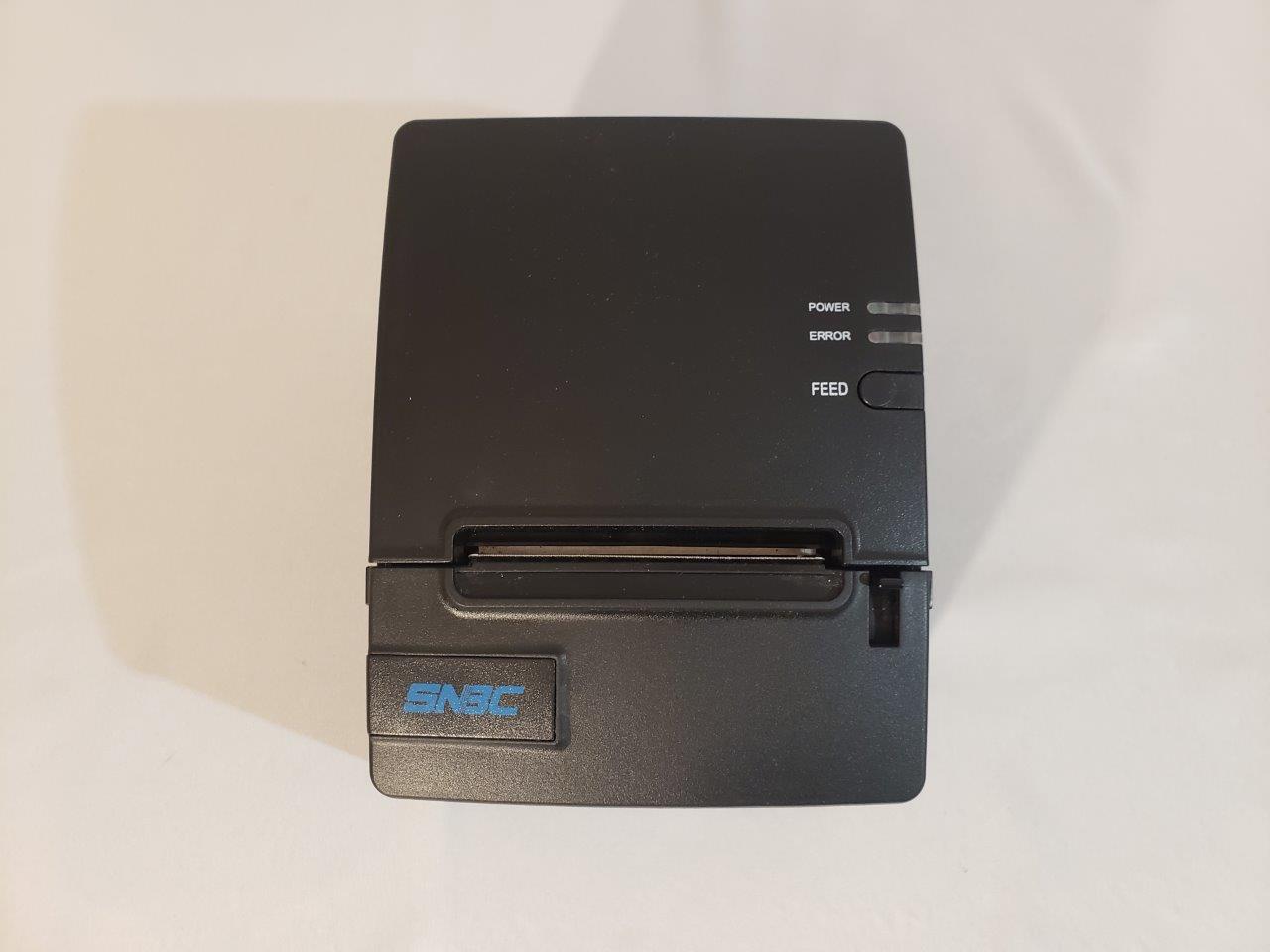

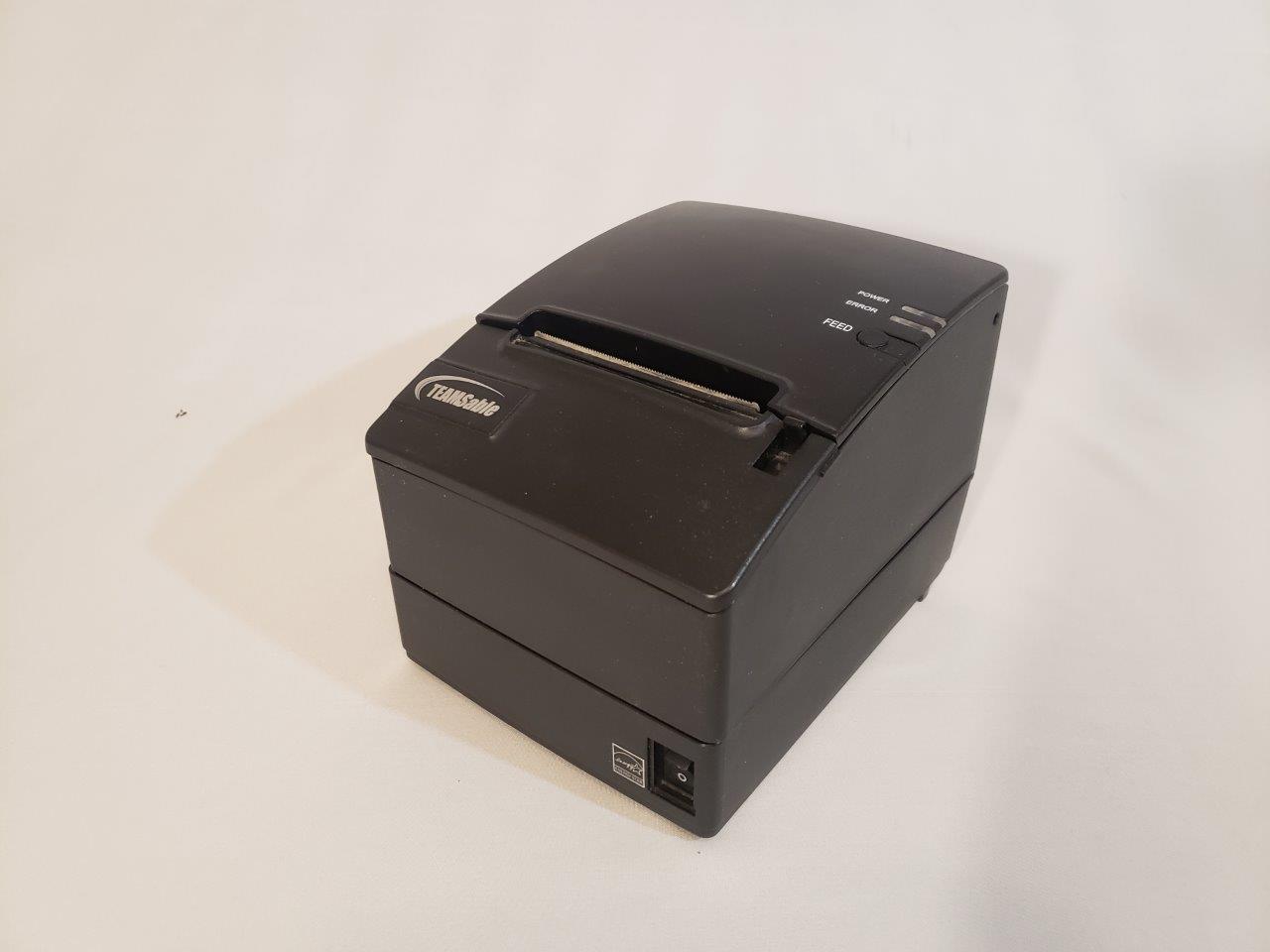

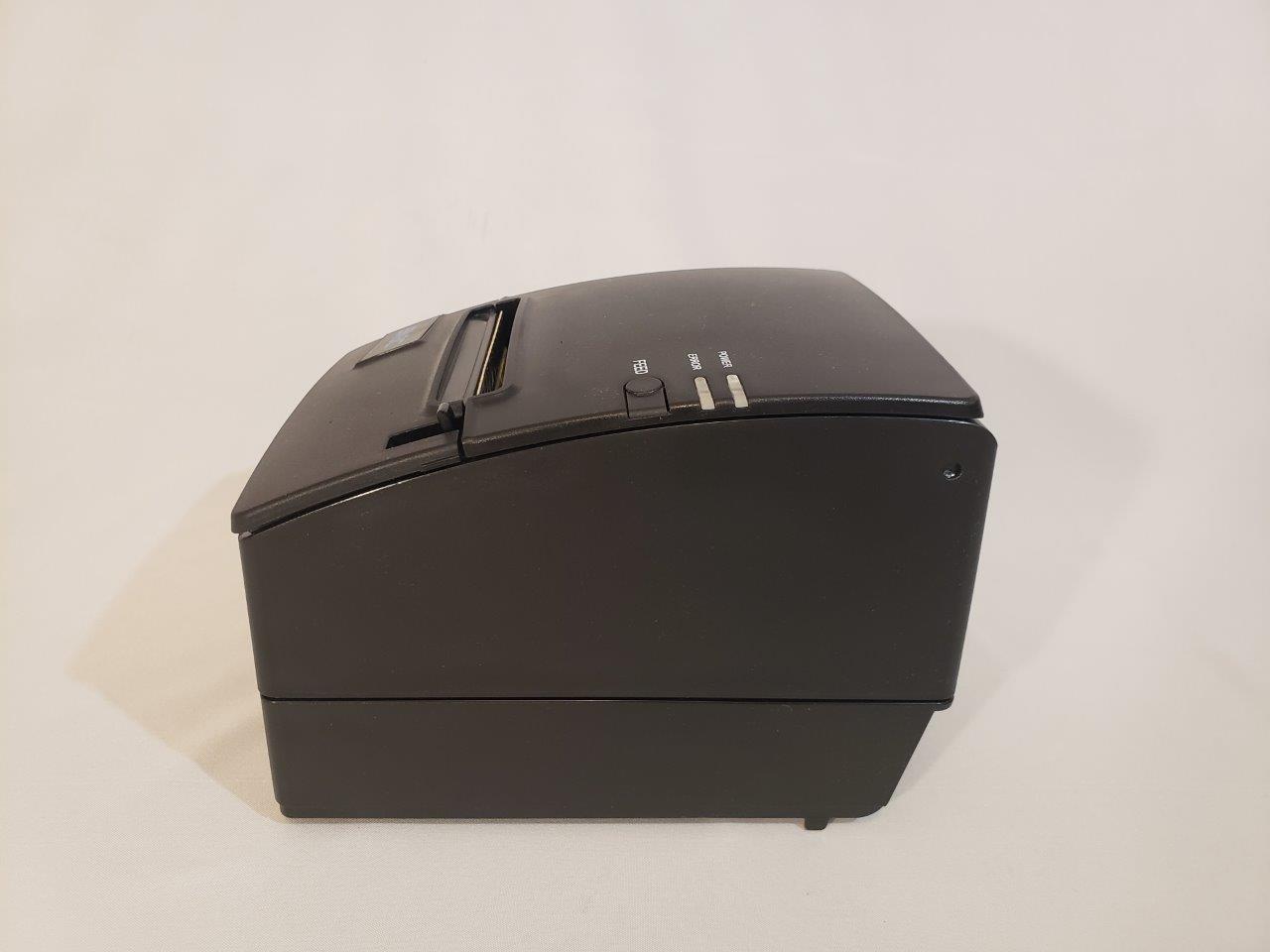

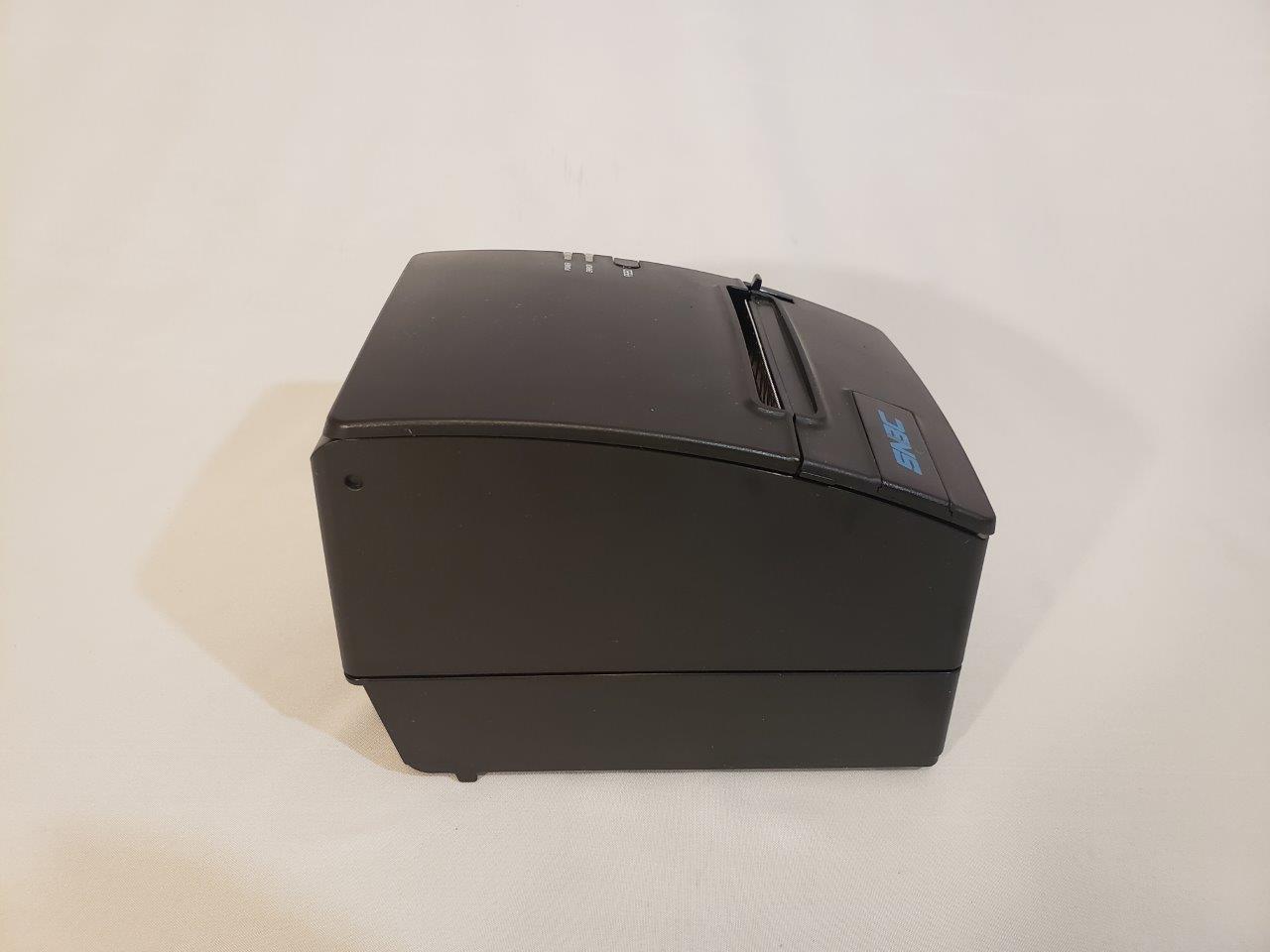

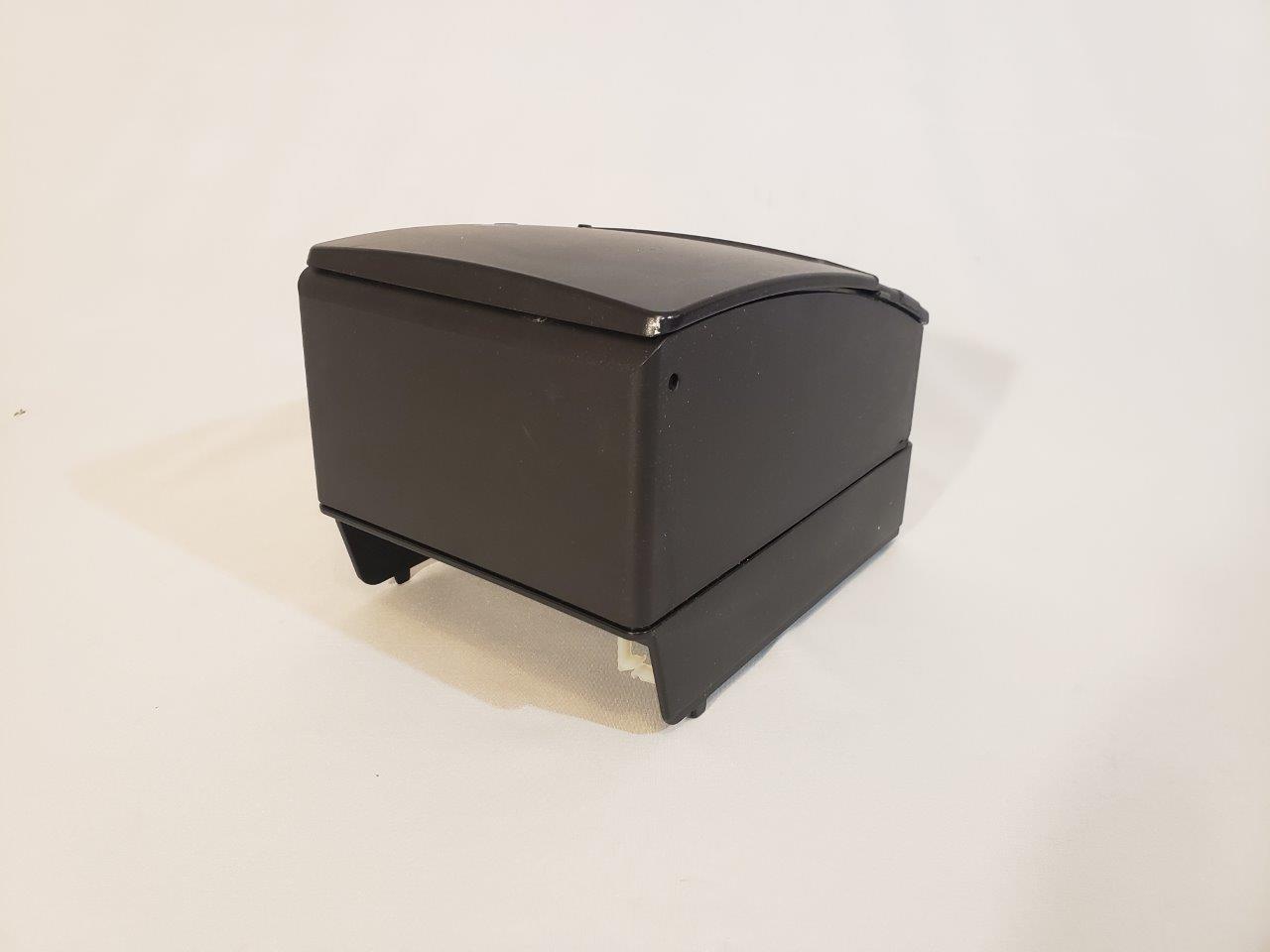

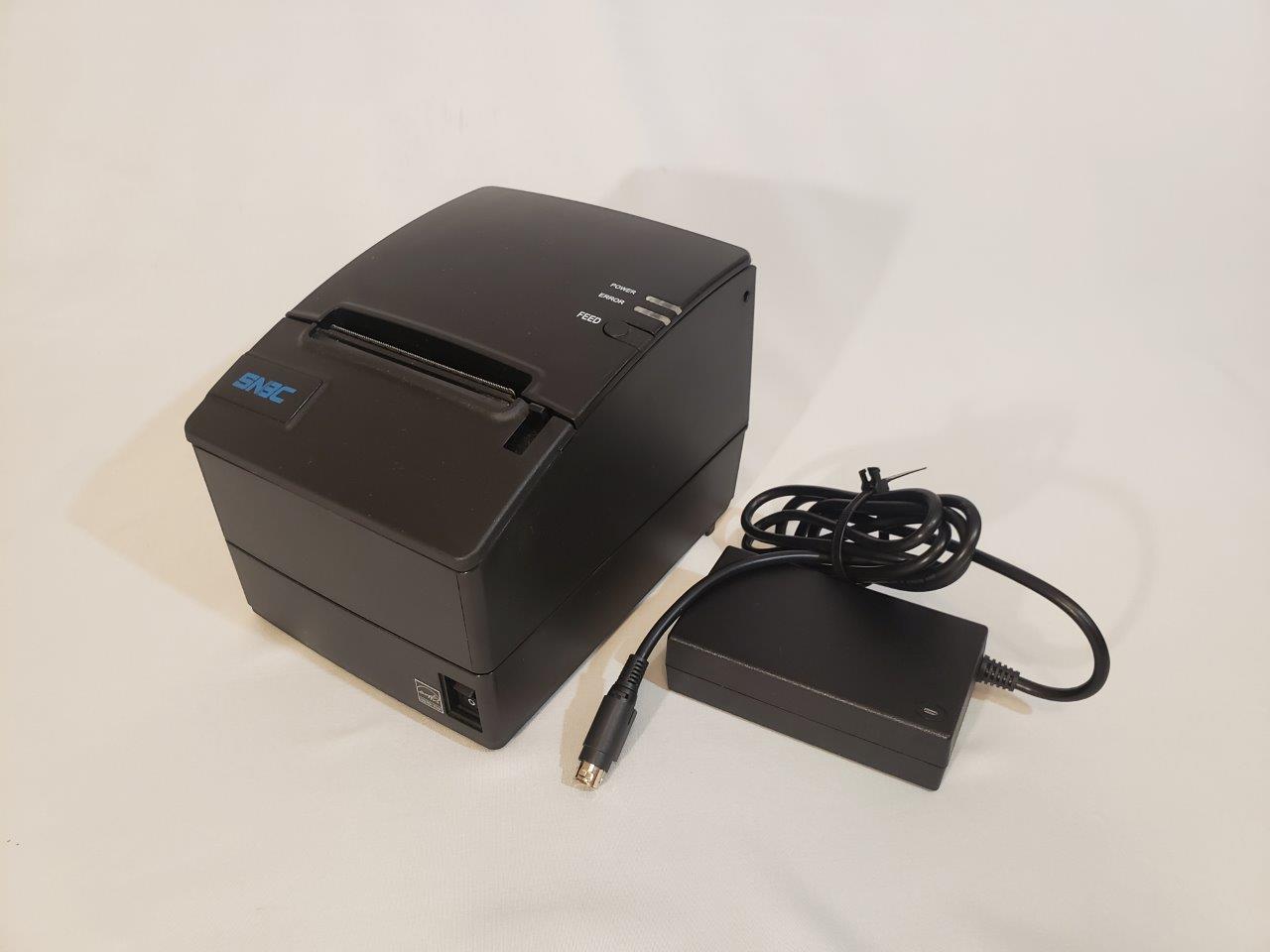

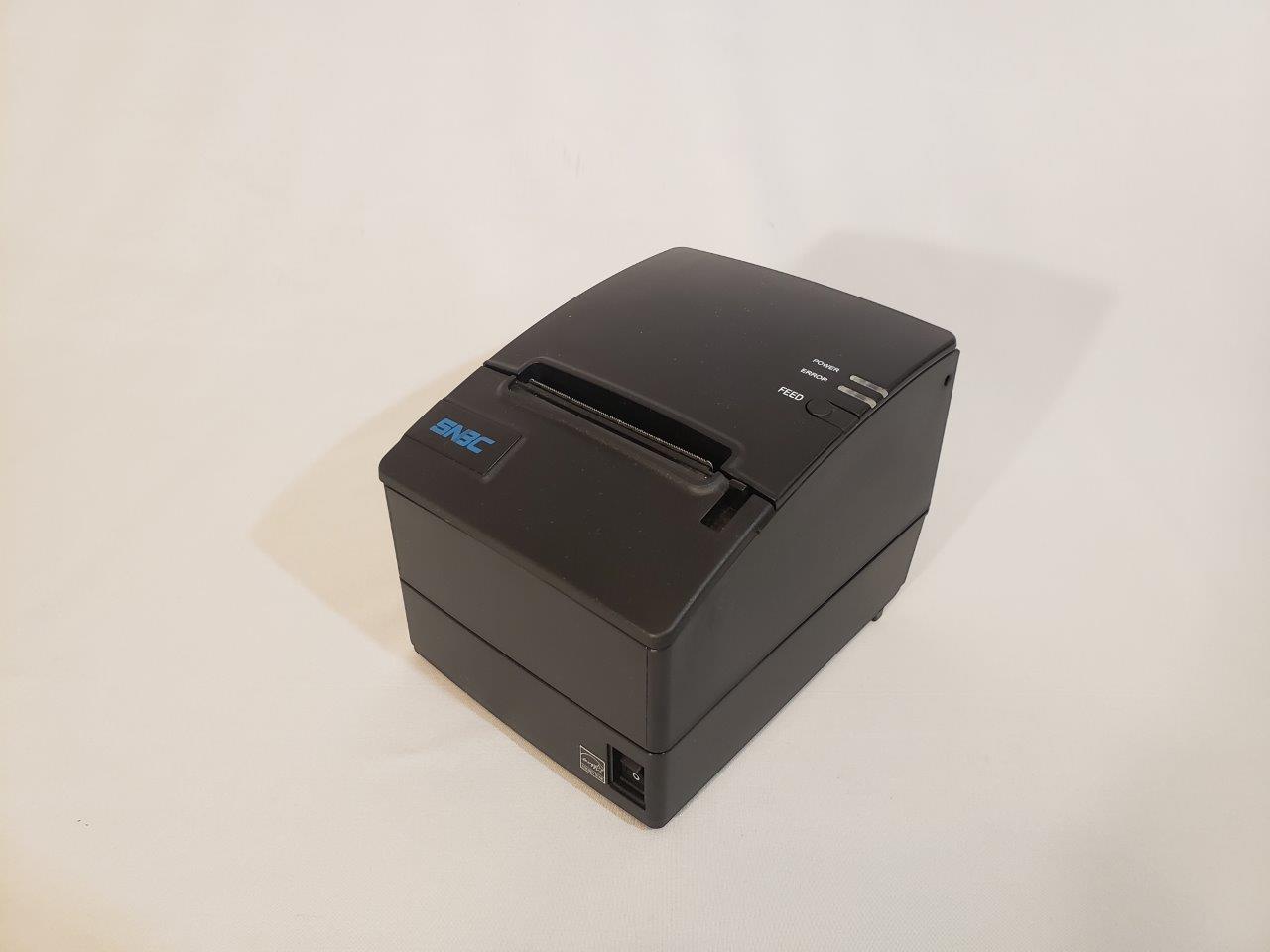

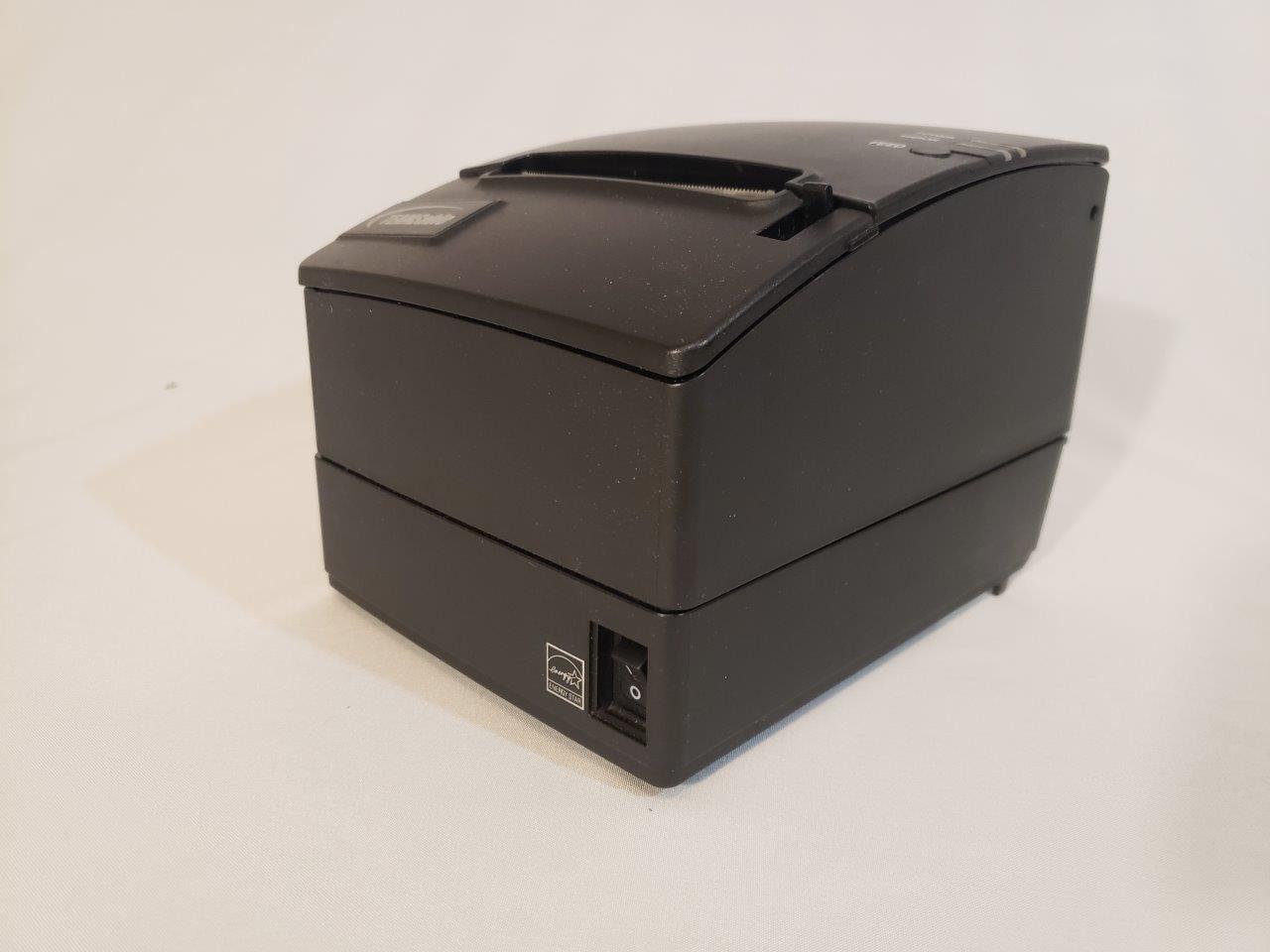

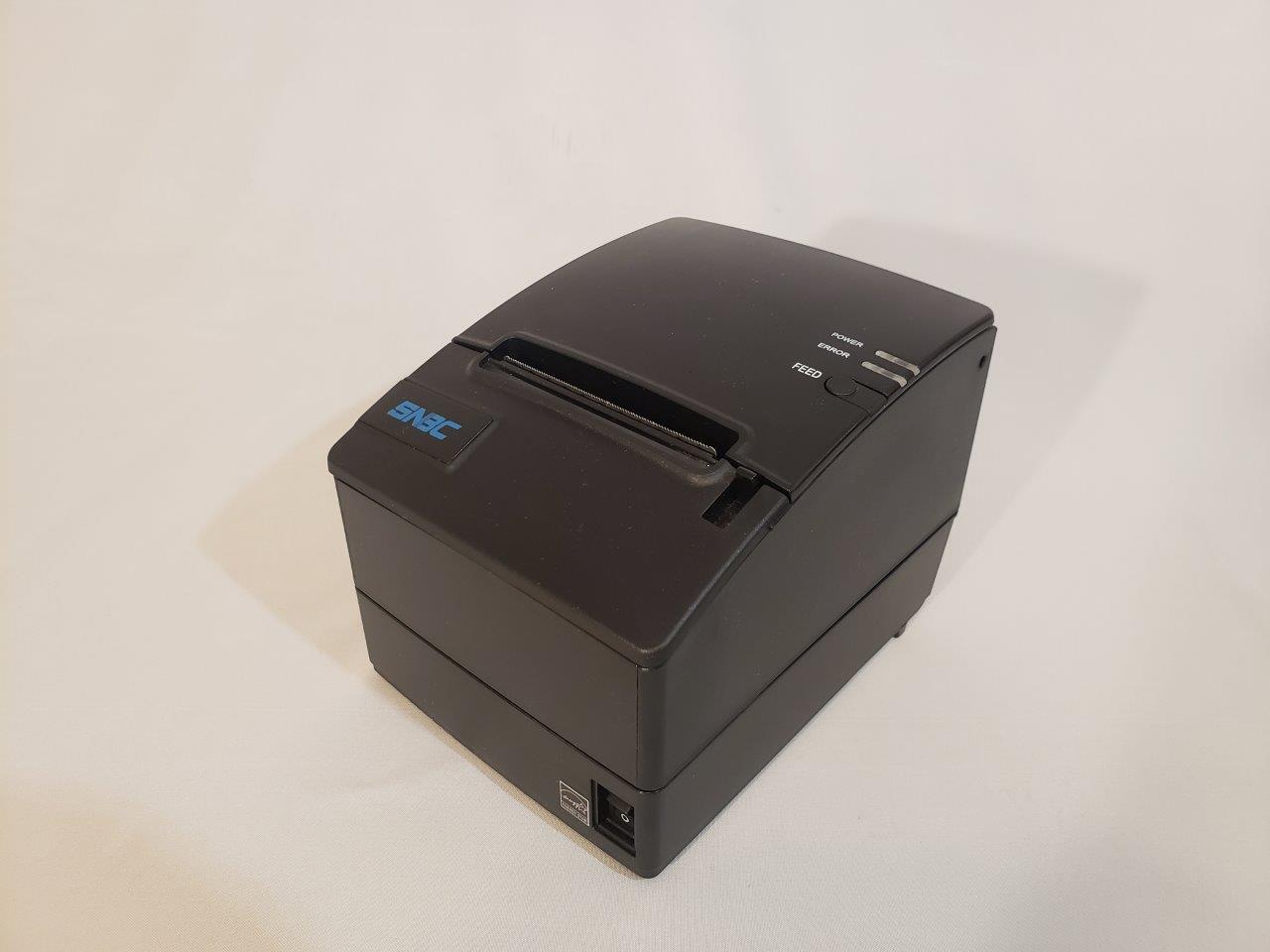

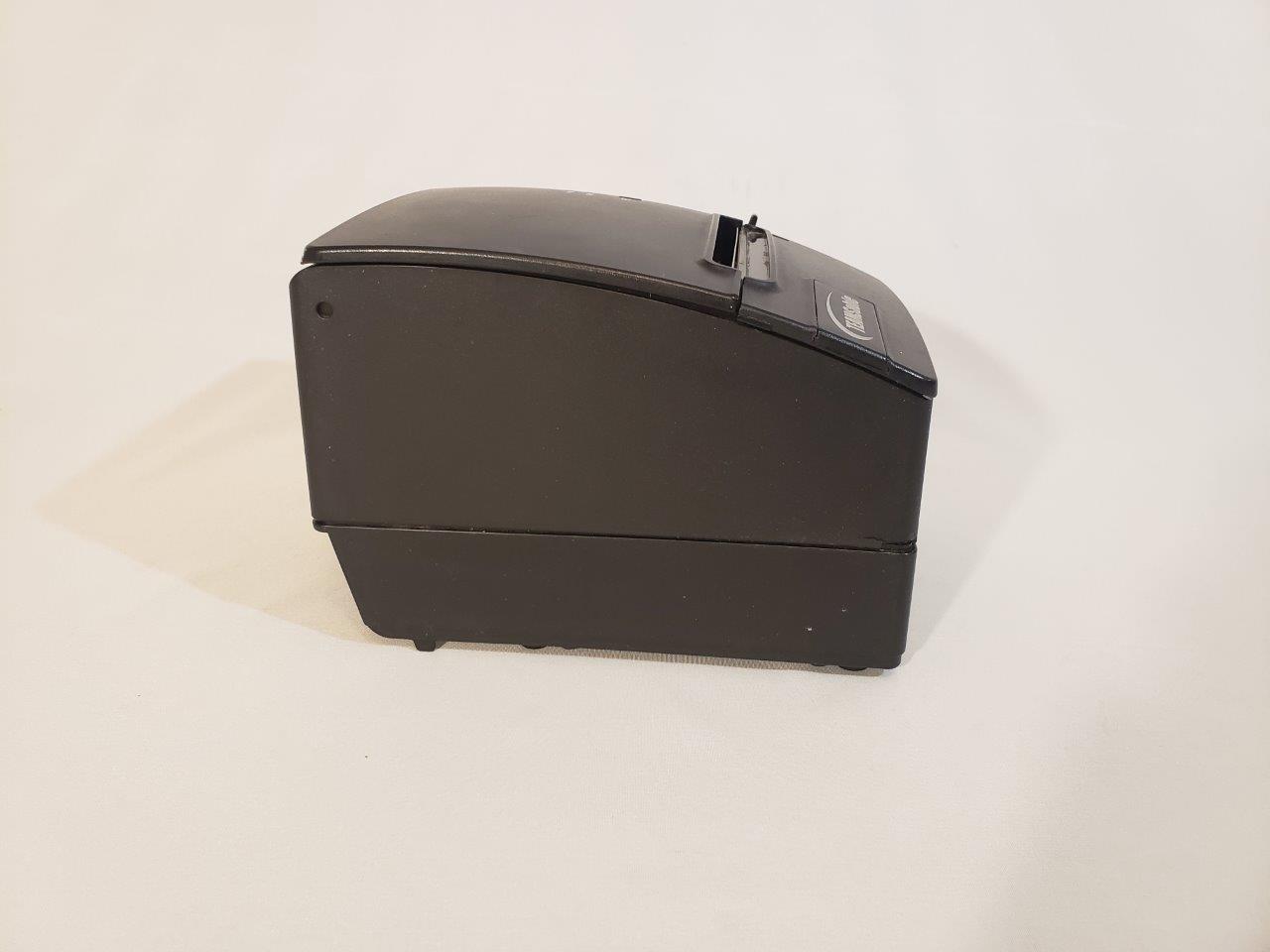

SNBC BTP-R180II POS Thermal Receipt Printer with Power Adapter

Condition: used. Fully tested and guaranteed working.

BTP-R180II is a high performance thermal printer, which can be widely used for real-time printing application, such as POS system, restaurant system, ATM, etc. BTP-R180II can be connected with other devices via serial interface, USB, Ethernet and is available for WINDOWS 2000/XP/Server 2003/VISTA/WIN7/WIN8/Server2008/Server2012 and Linux.

Features
– Low noise, high printing speed
– Easy paper loading
– Easy use and maintenance
– Marked paper and continuous paper available
– Compatible with various wide paper
– Cutting paper automatically
– Cash drawer control connector
– ESC/POS compatible
– Built-in Internal Buzzer
– Save paper function
– Low consumption design

• Triple Interface Standard – USB, Serial and Ethernet
• Fast 230mm/Second Print Speed

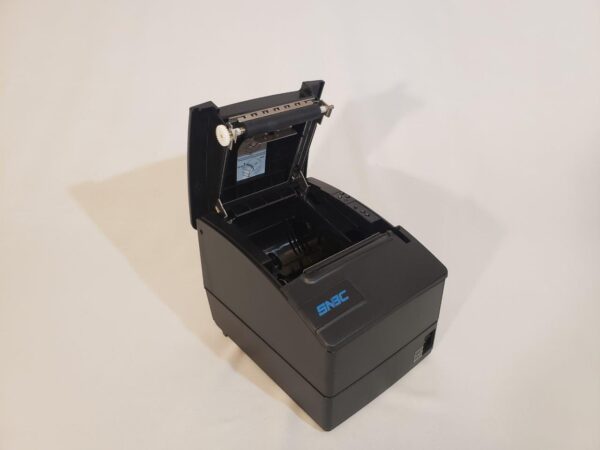

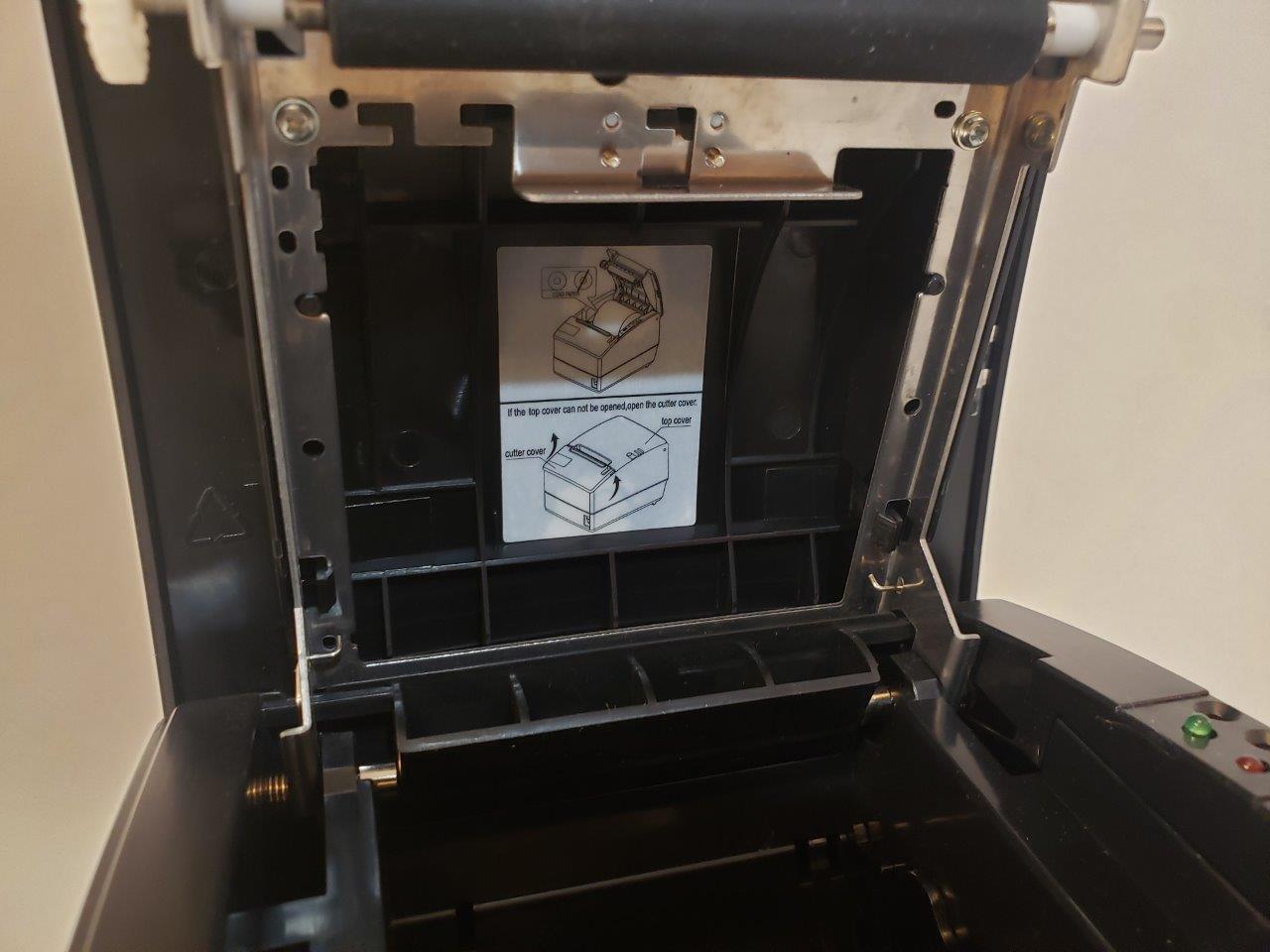

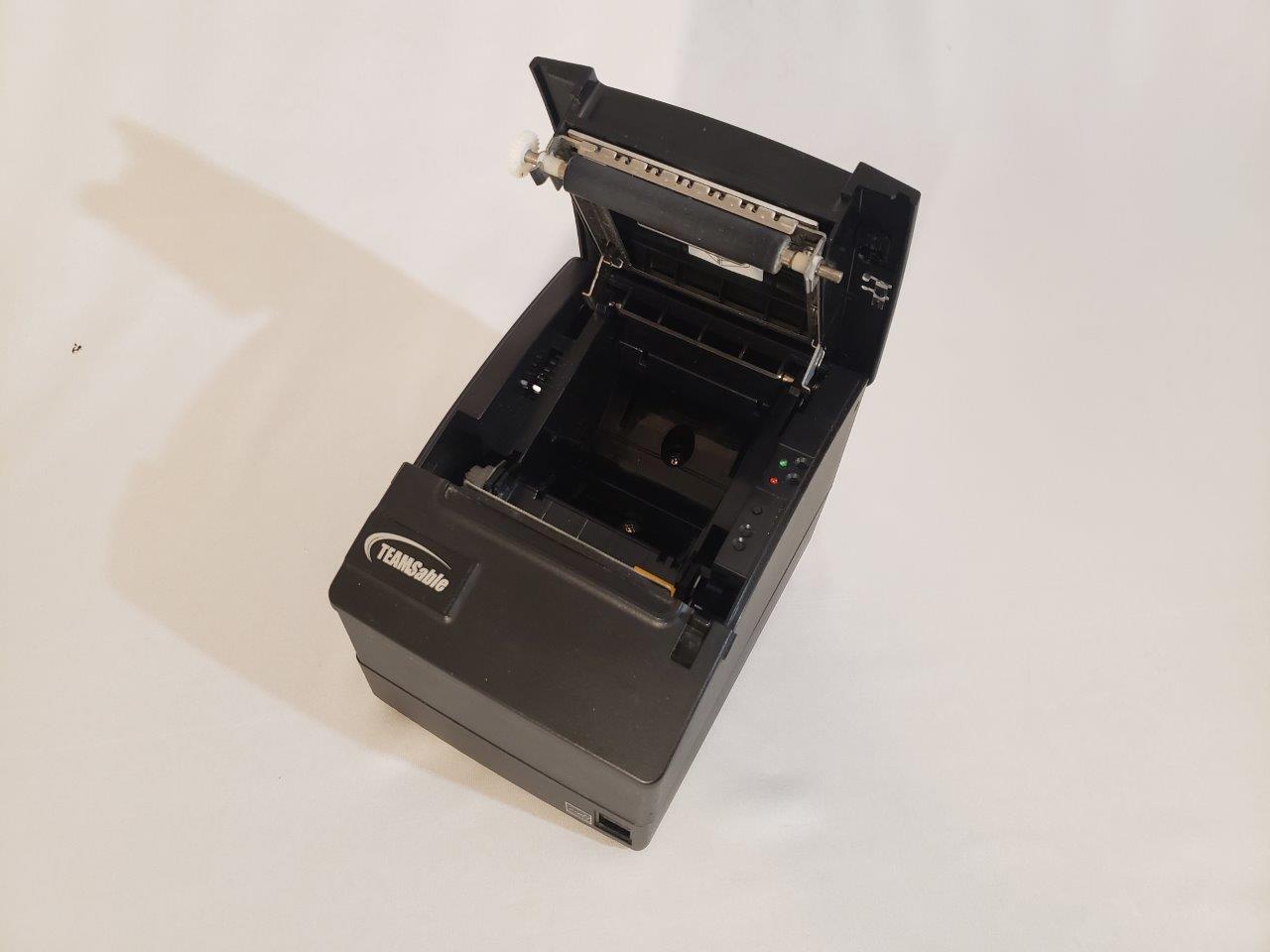

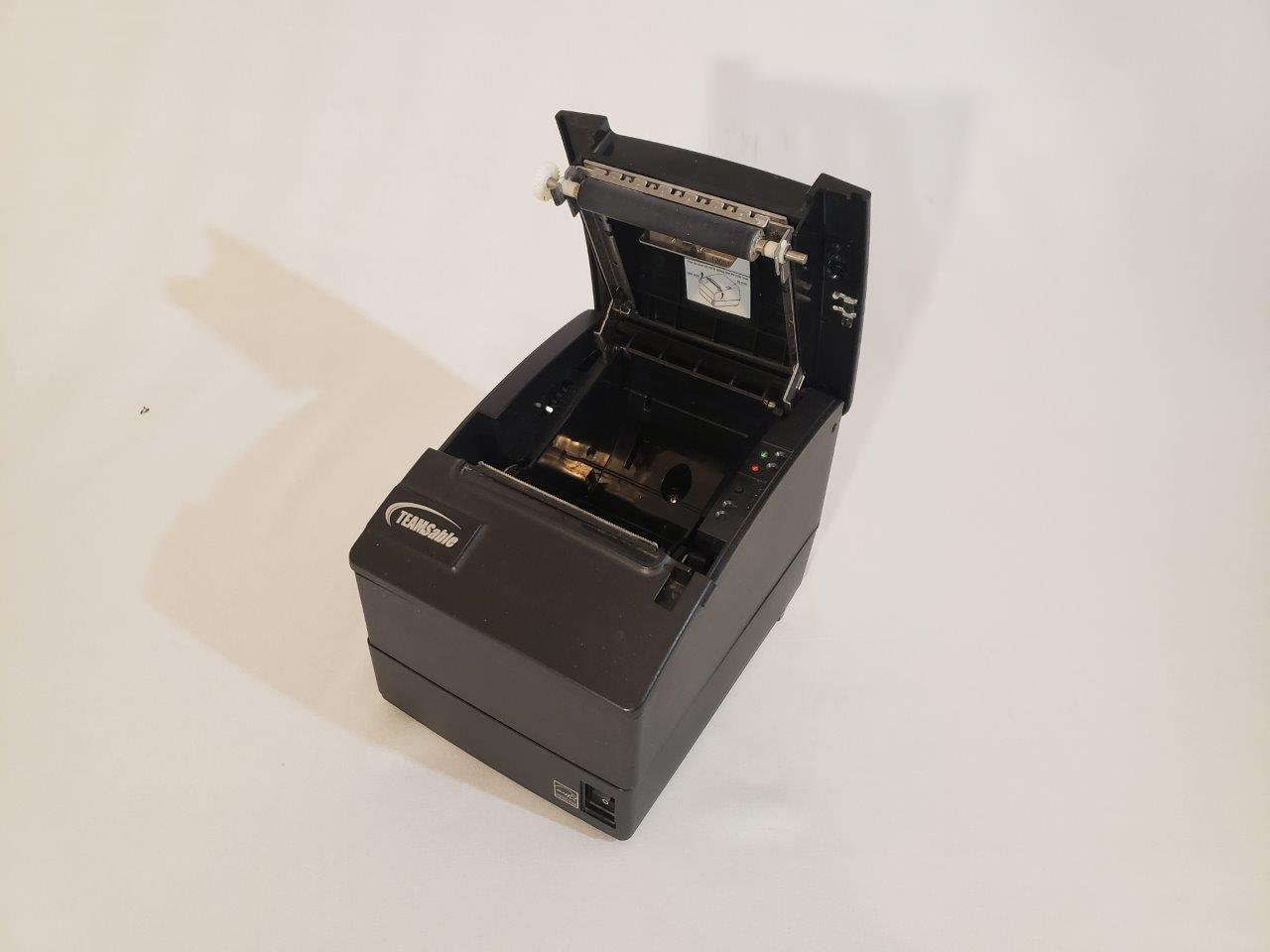

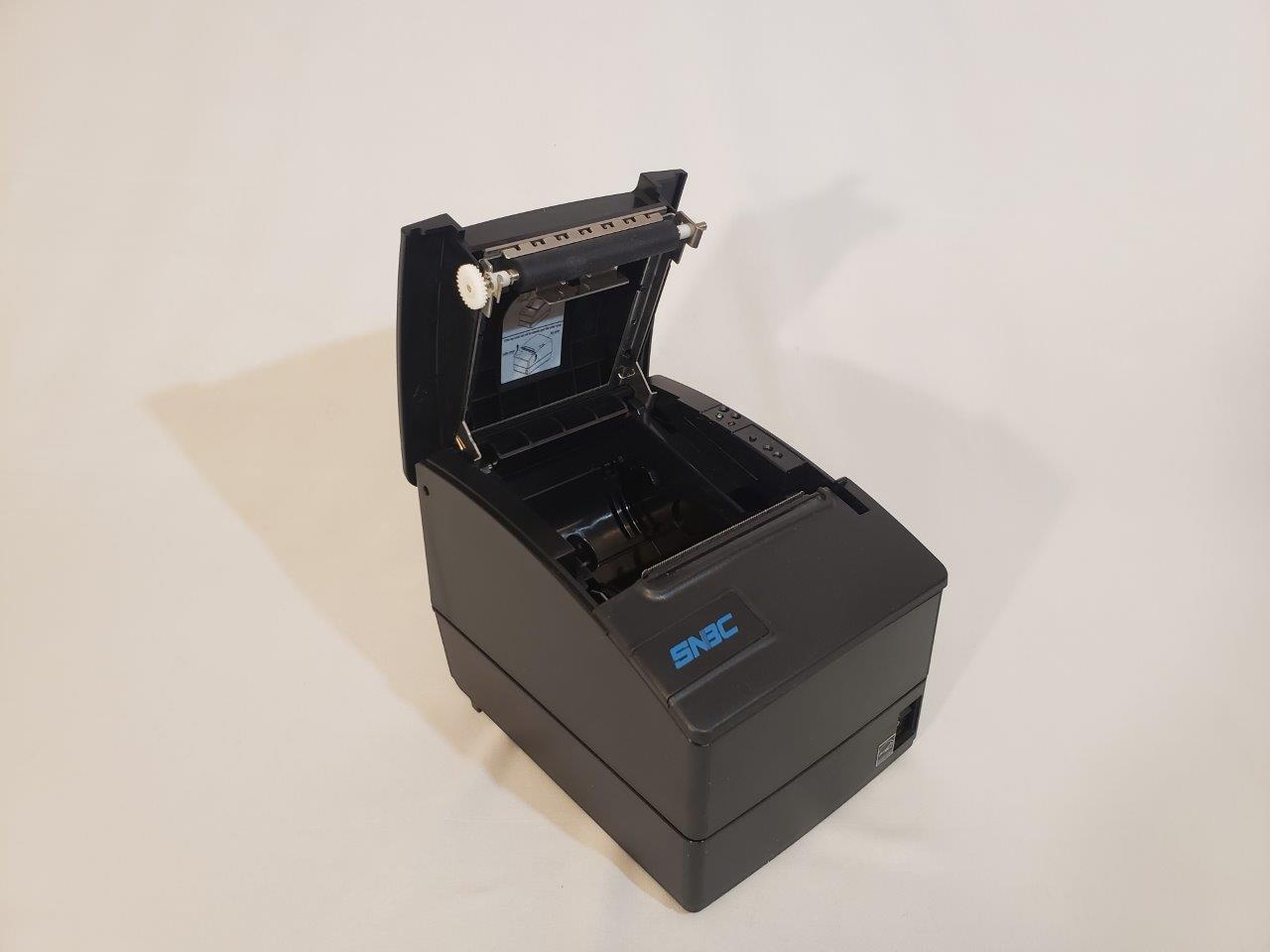

• Simple Drop-In Paper Loading
• Standard Auto Paper Cutter
• Includes Serial and USB Cables and Power Supply
• Compatible with Popular POS Software Applications

Specifications
Printing:
Print Method: Direct Thermal
Resolution: 180 × 180 DPI (standard)
Paper width: 57.5/69.5/76/80/82.5mm
Print width: Max. 72mm
Print speed: Max. 230mm/s
Flash capability: 2M / 4M (selectable, according to different font library)
Flash LOGO: Max. 512K bytes
Data buffer: 64K bytes，4K bytes，45 bytes

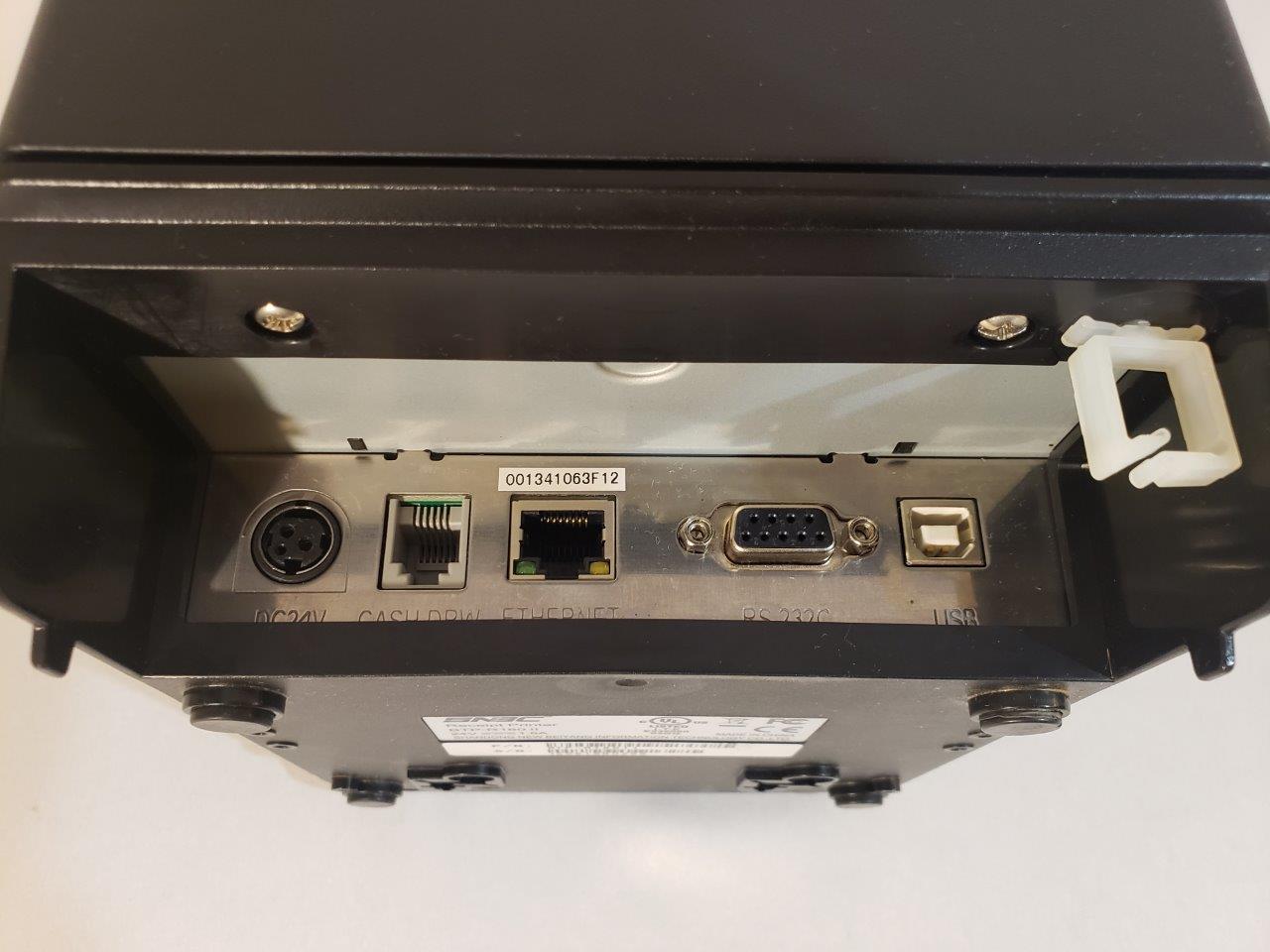

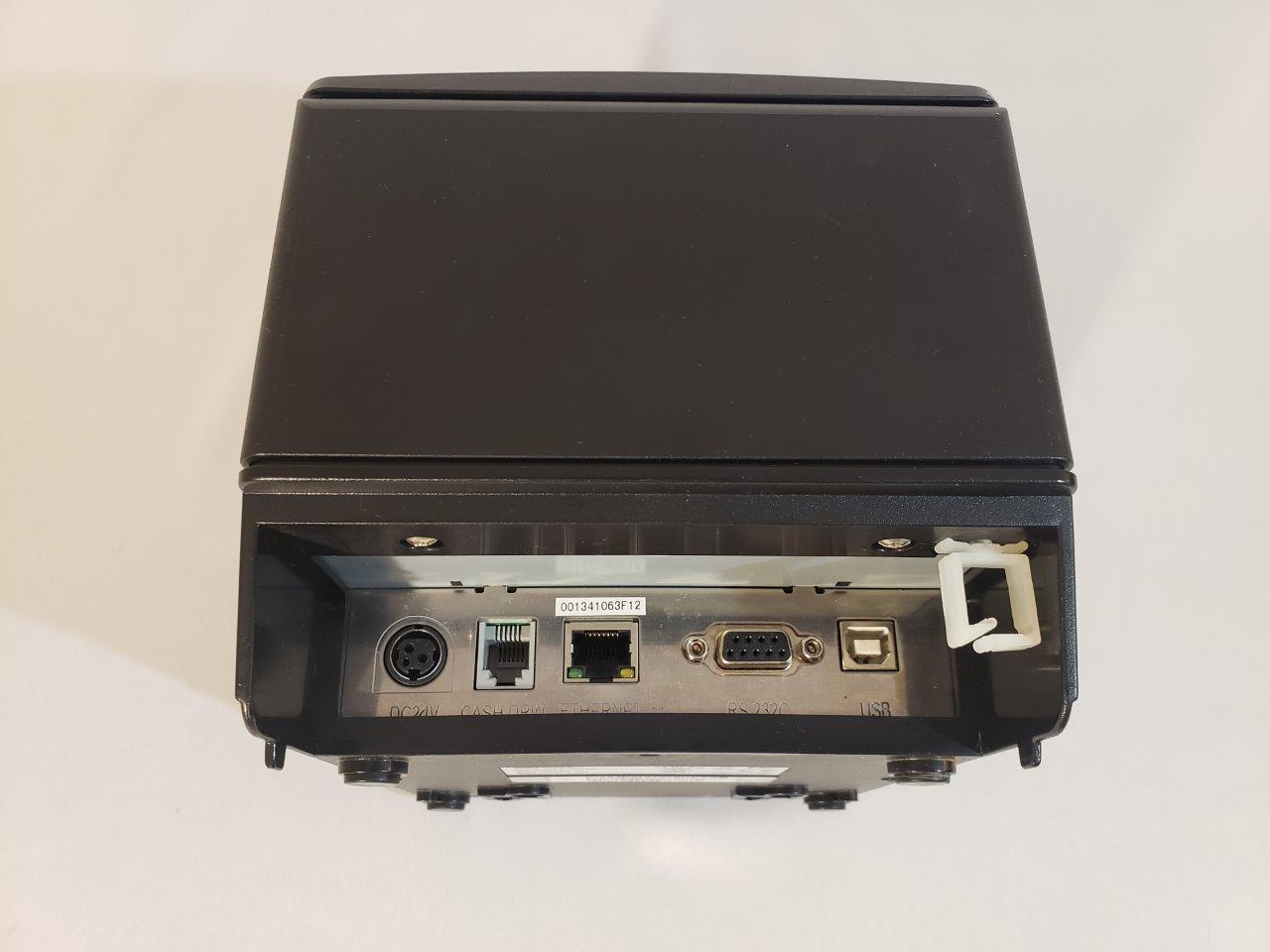

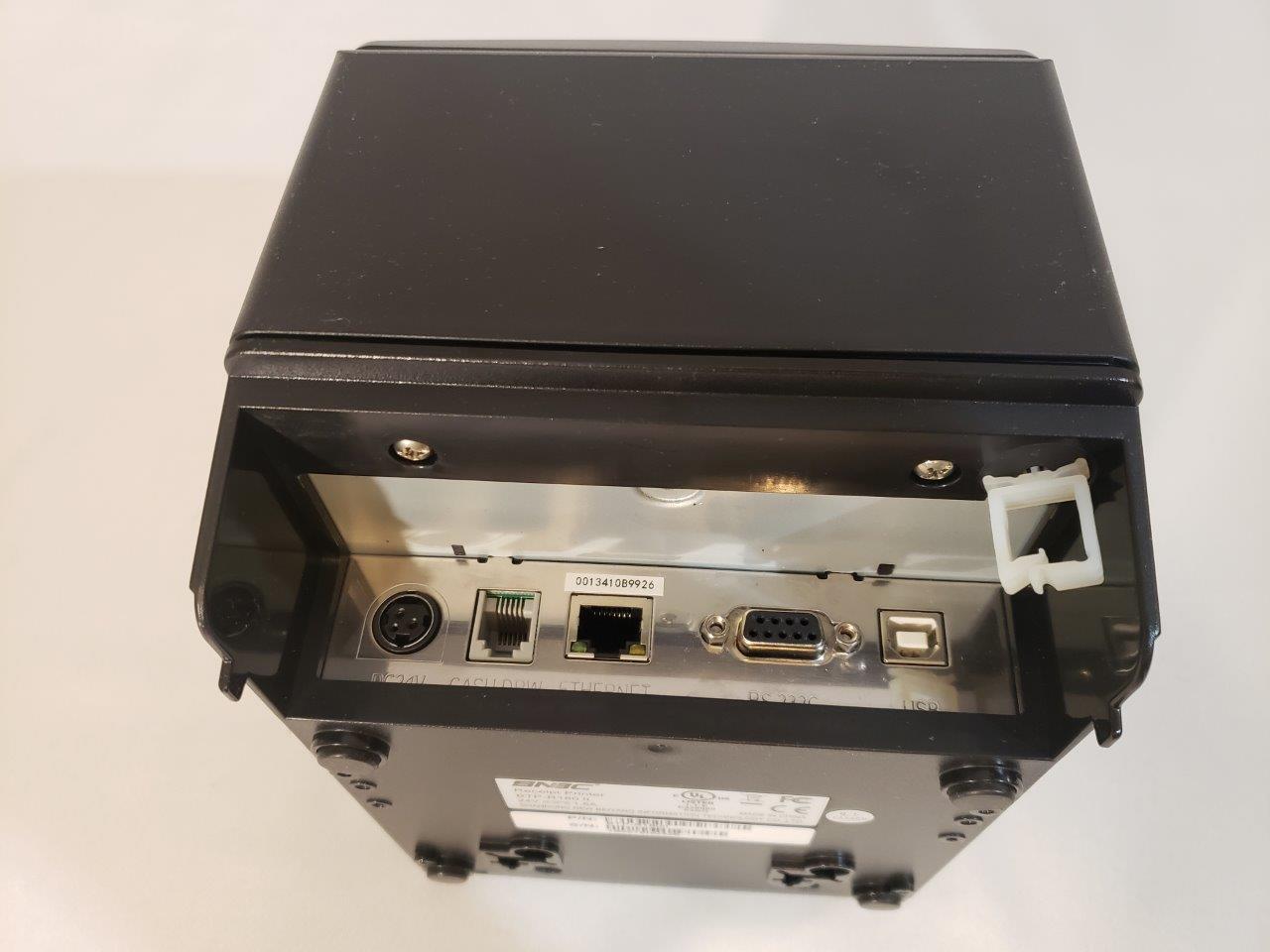

Interface:
Serial (RS-232, Fix on board)
USB2.0 (Full Speed, Fix on board)
Ethernet (Fix on board)
Printer Status Detection Top cover position, Paper end, Print head overheating, Print voltage,Paper near end，Marked detection，Cutter error
Barcode: 1D: UPC-A, UPC-E , JAN8 (EAN8), JAN13 (EAN13), CODE 39, CODE 93, CODE 128, ITF, CODABAR 2D: PDF417, QR, MaxiCode
GS1: DataBar
Fonts Type: Font A 12×24,Font B 9 ×17 ,kanji 24 × 24,
Characters
95 Alphanumeric, 13 types International characters, Traditional/Simplified Chinese, Japanese, Korean (optional)
Command Emulation Supported: ESC/POS™
Paper
Paper type: Continuous paper, Marked paper
Paper OD: Max 83mm
Paper thickness: 0.06mm~0.08mm

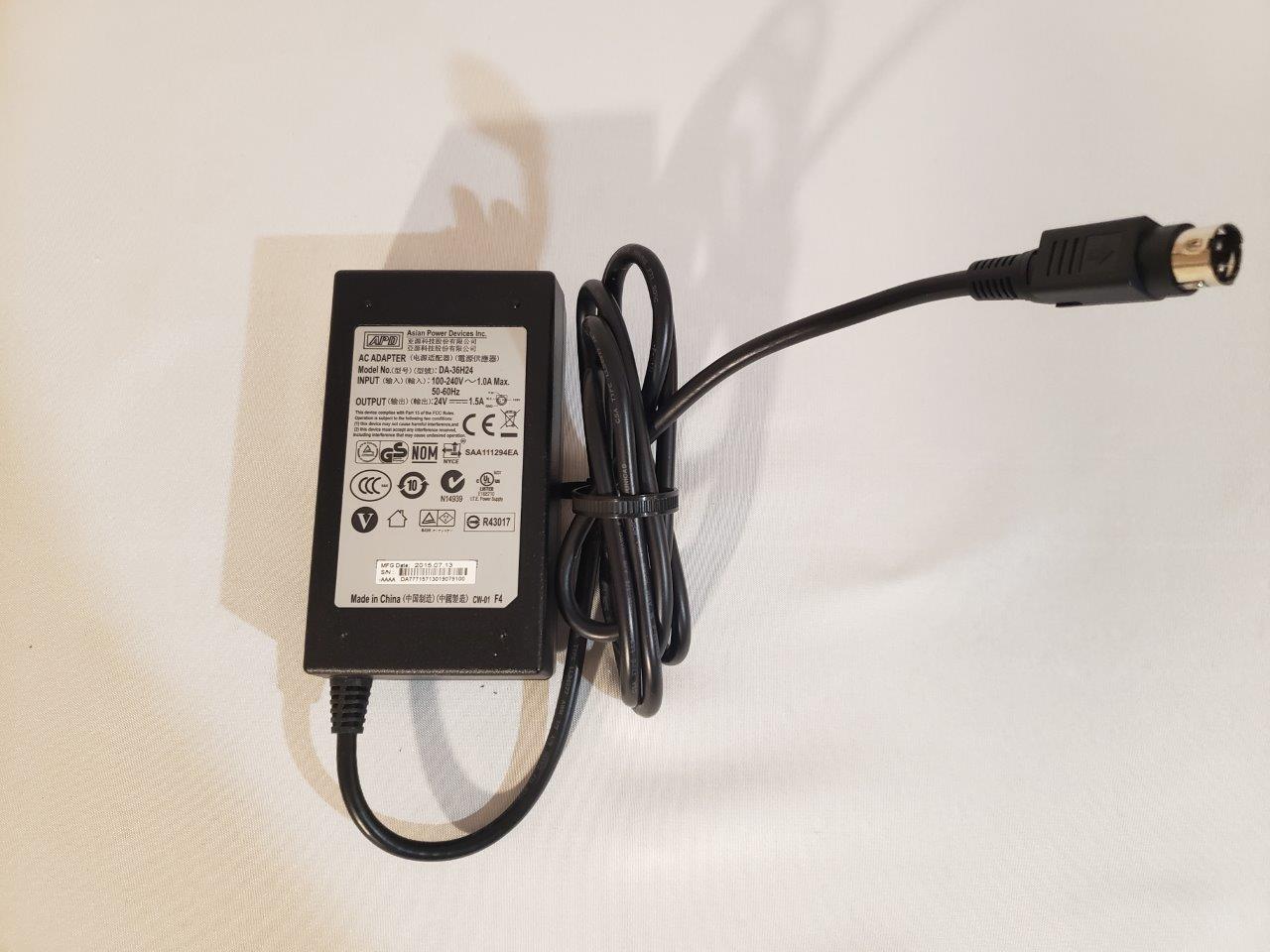

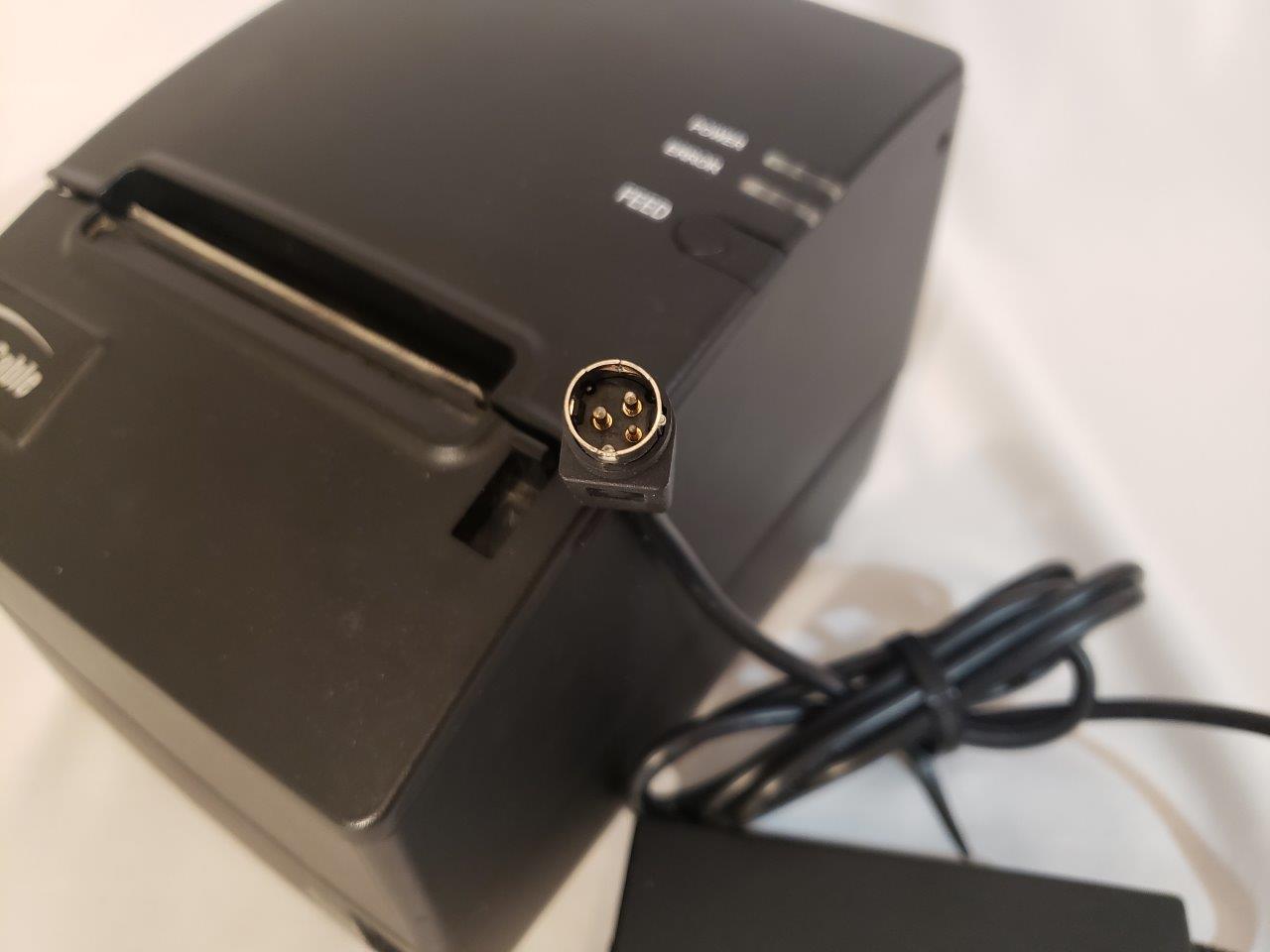

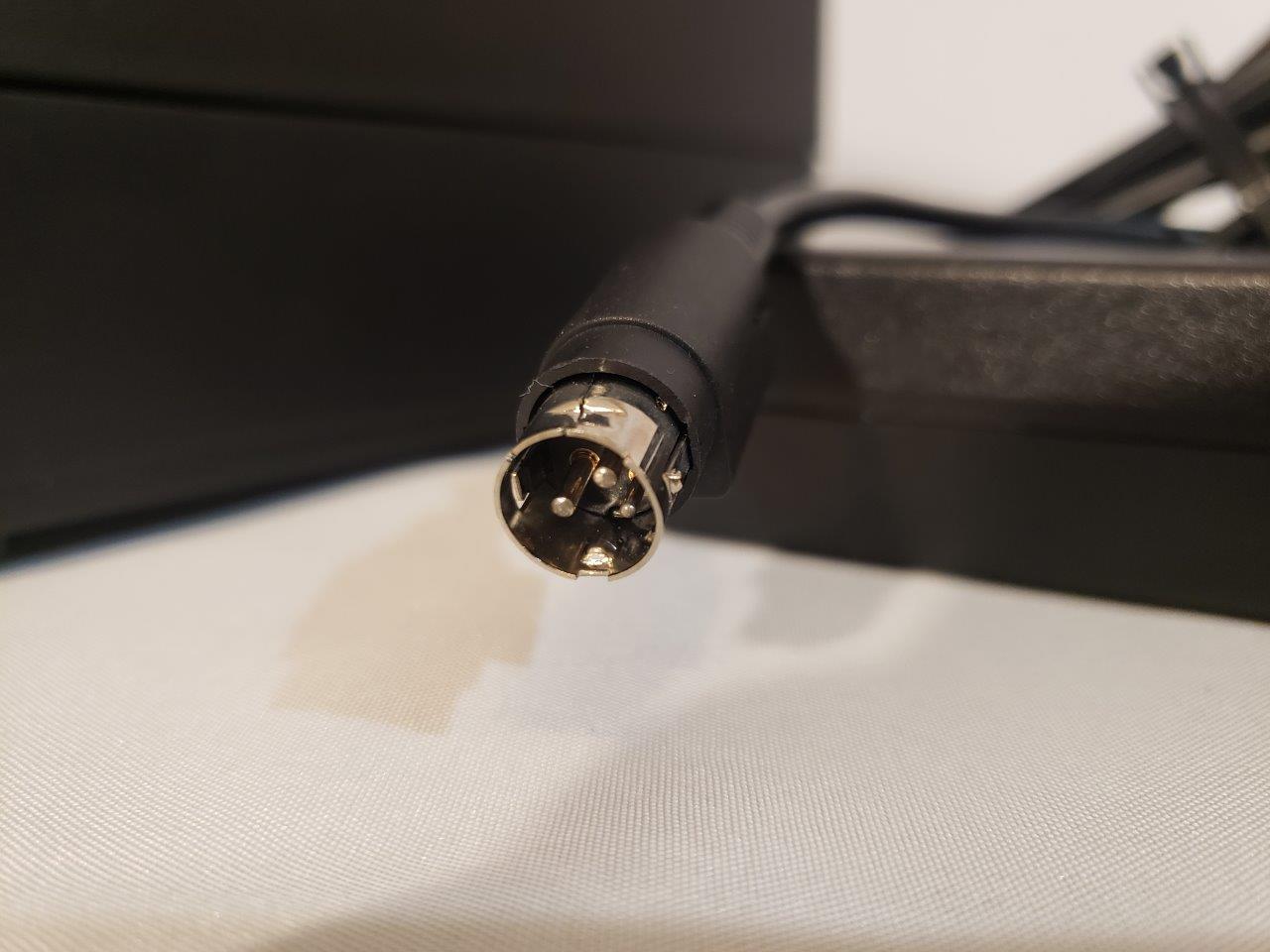

Power Supply
Input: 100-240VAC, 50-60Hz
Output: 24V ± 5%V DC, 1.5A

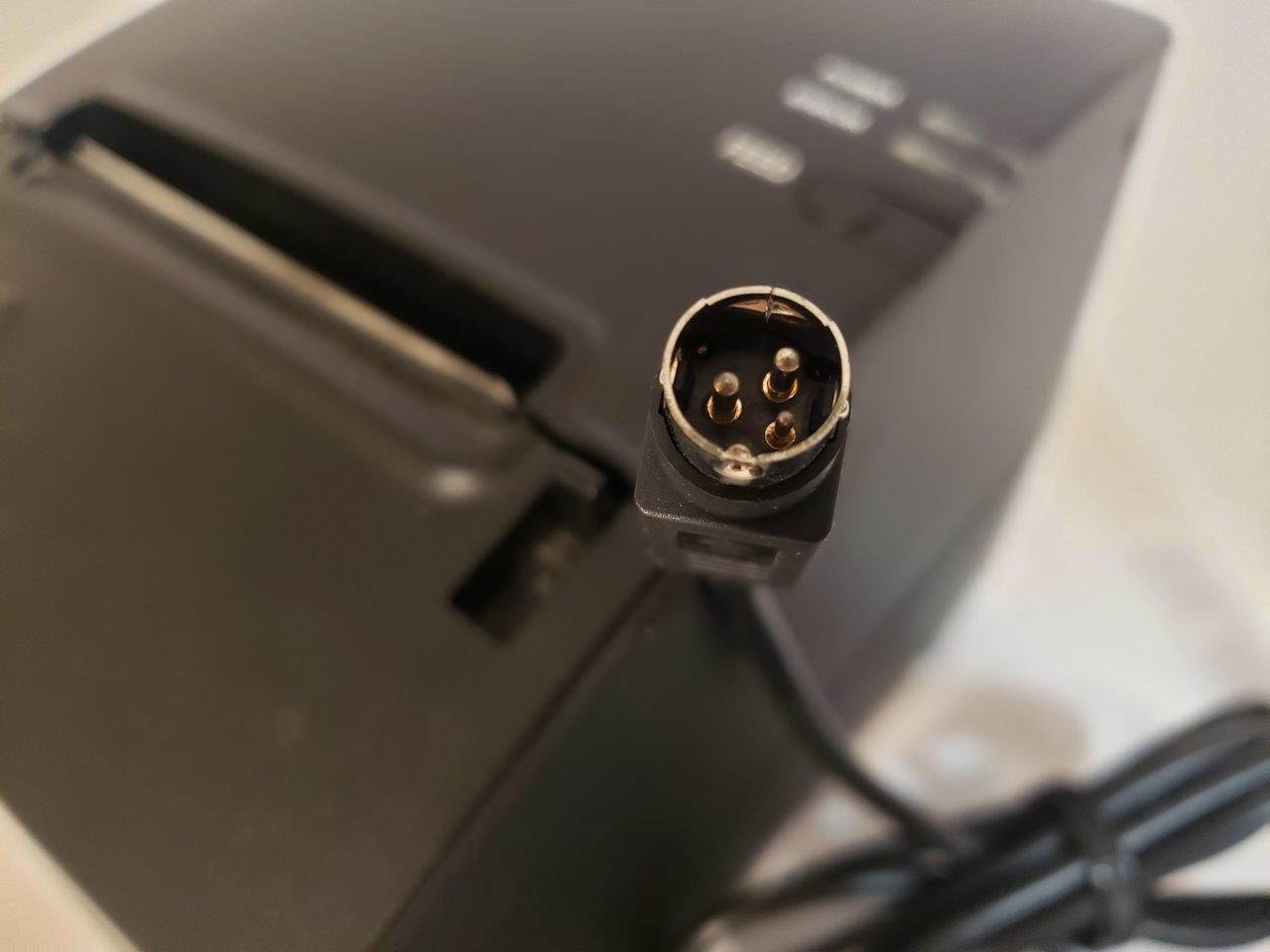

External Only: Power Adaptor

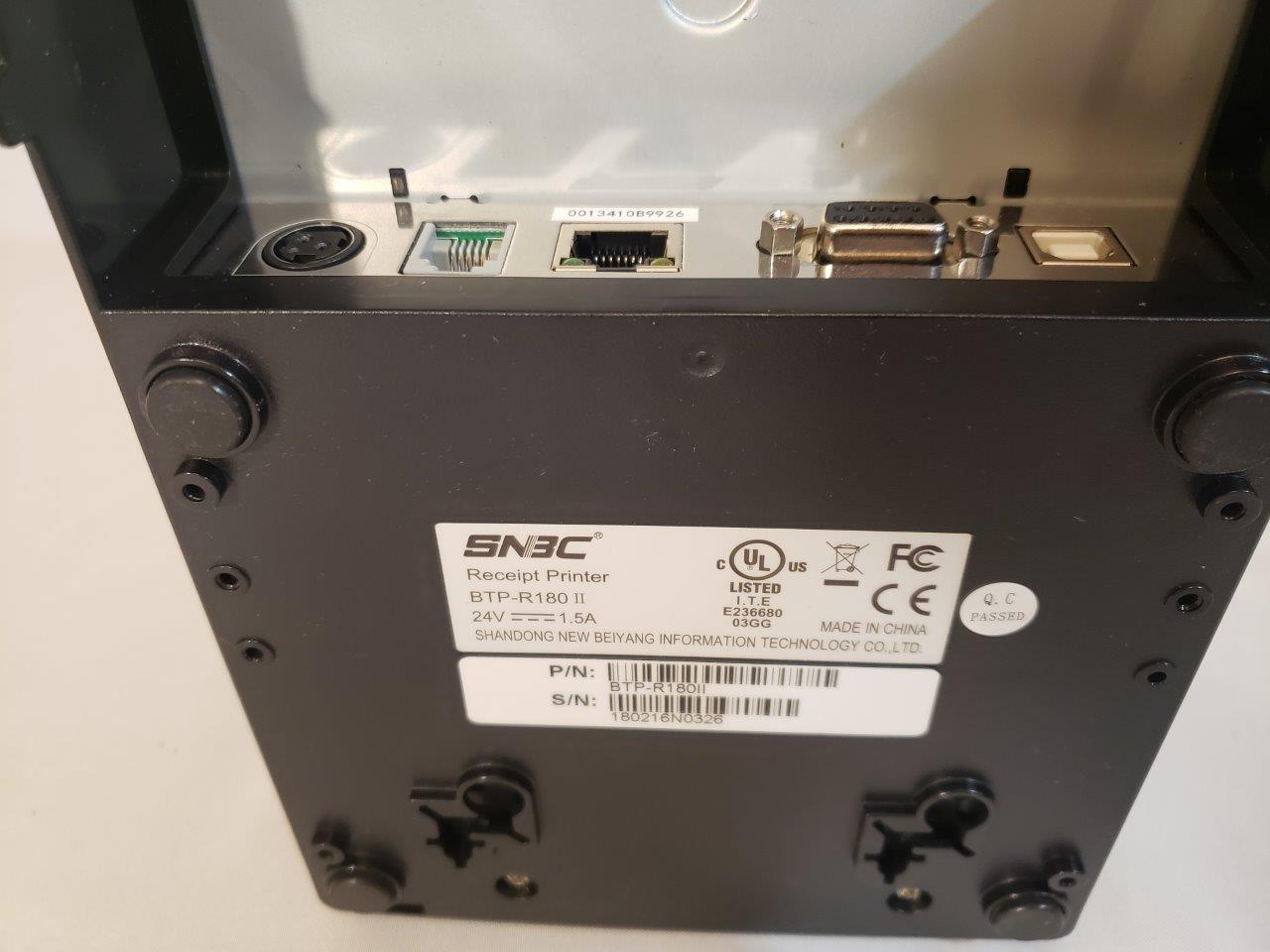

EMC and Safety Standards: CCC、CE、CB、FCC、UL

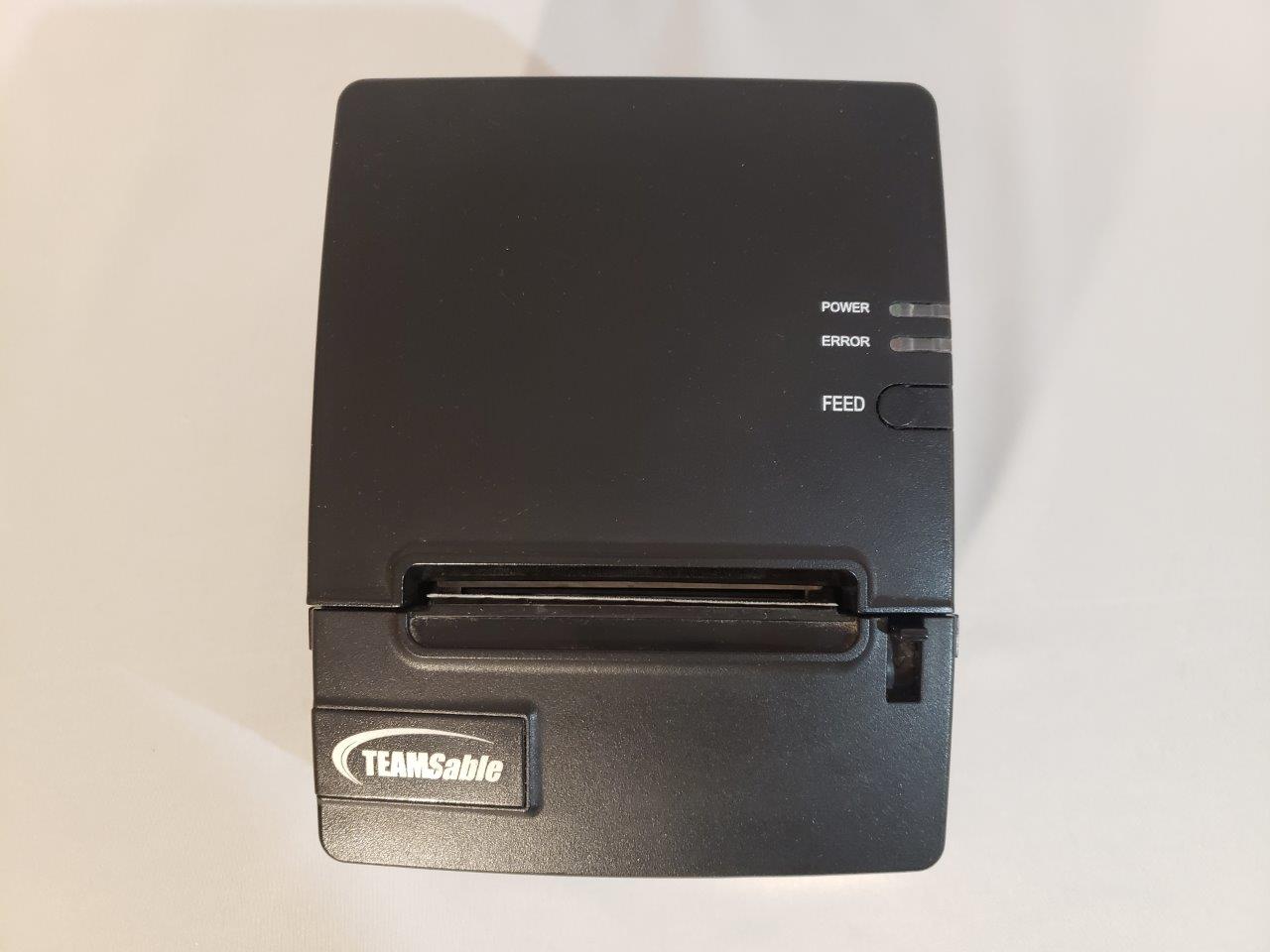

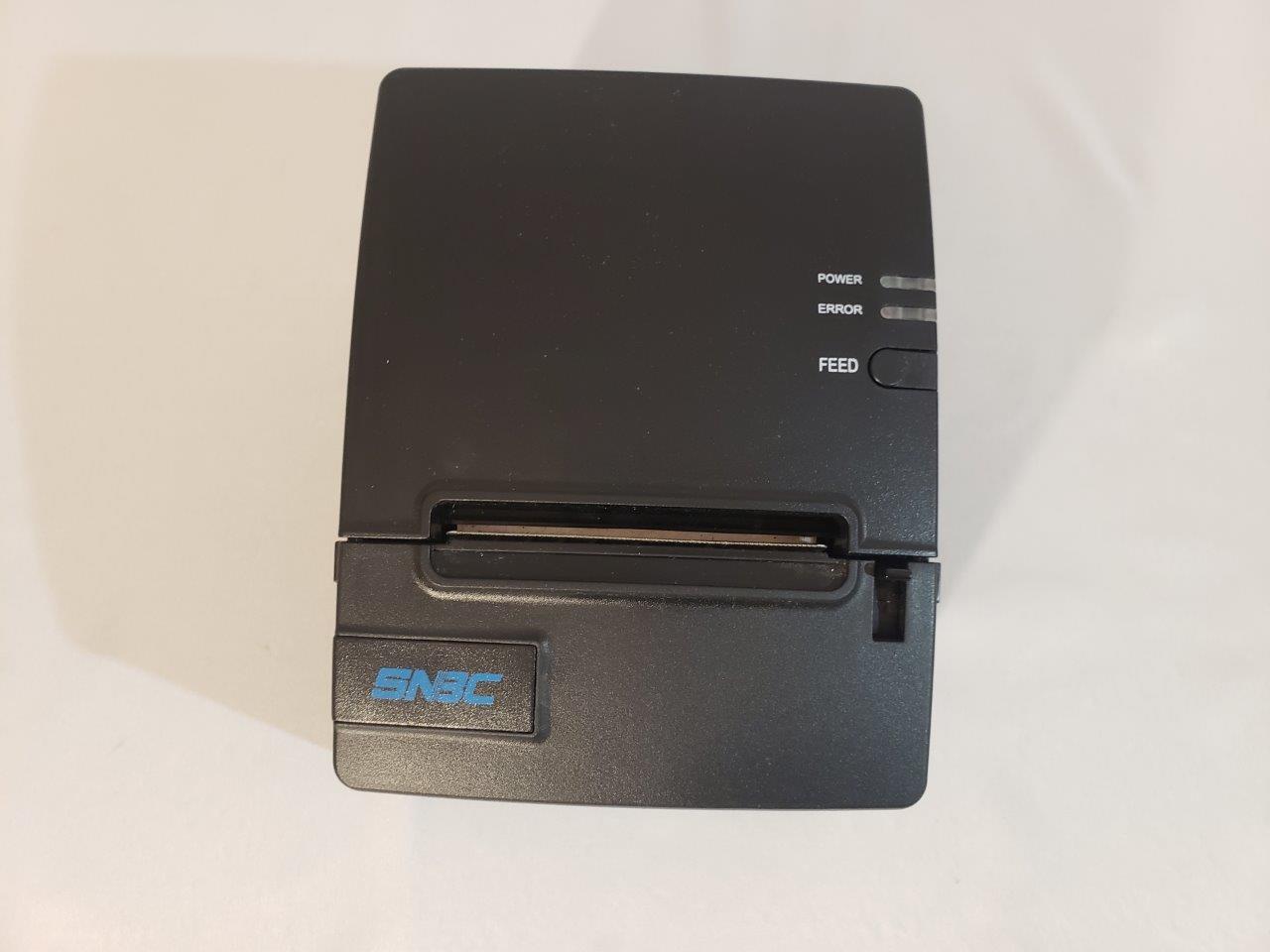

Human- Machine Interface
Power switch: Micro switch
Button: FEED button
LED: POWER LED, ERROR LED
Buzzer: Built-in buzzer

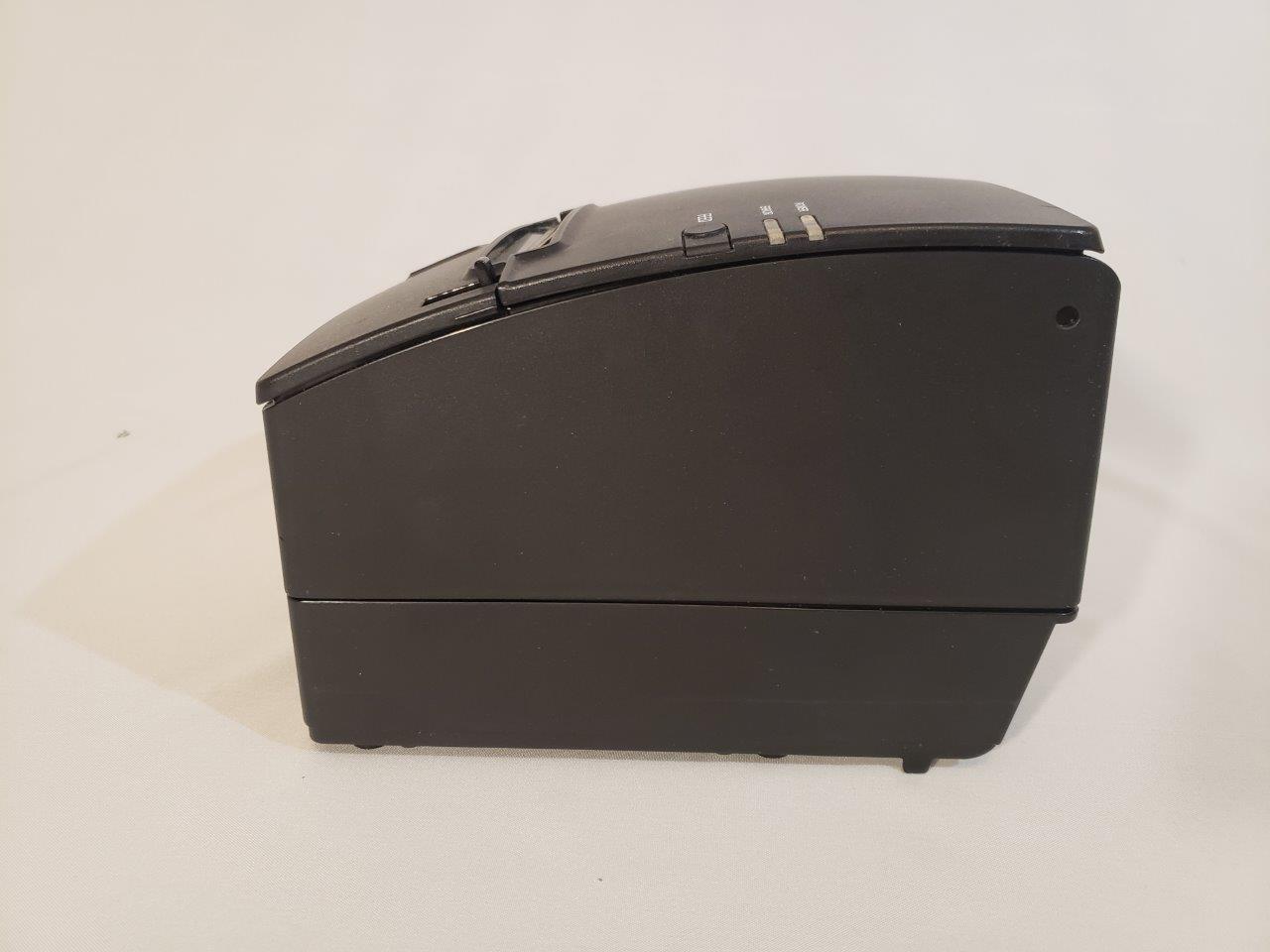

Dimension: 195 L x 145 W x 141 H (mm)
Weight: Approx 1.45Kg
