Description

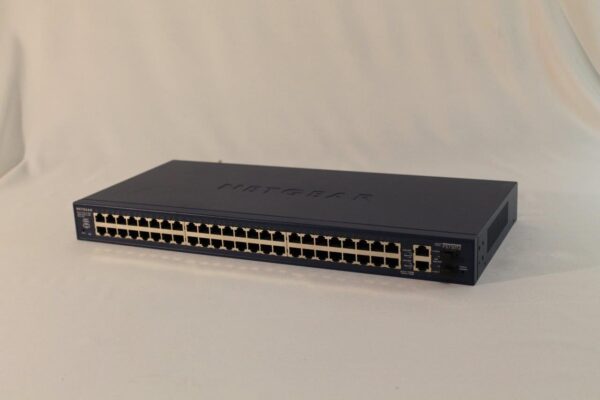

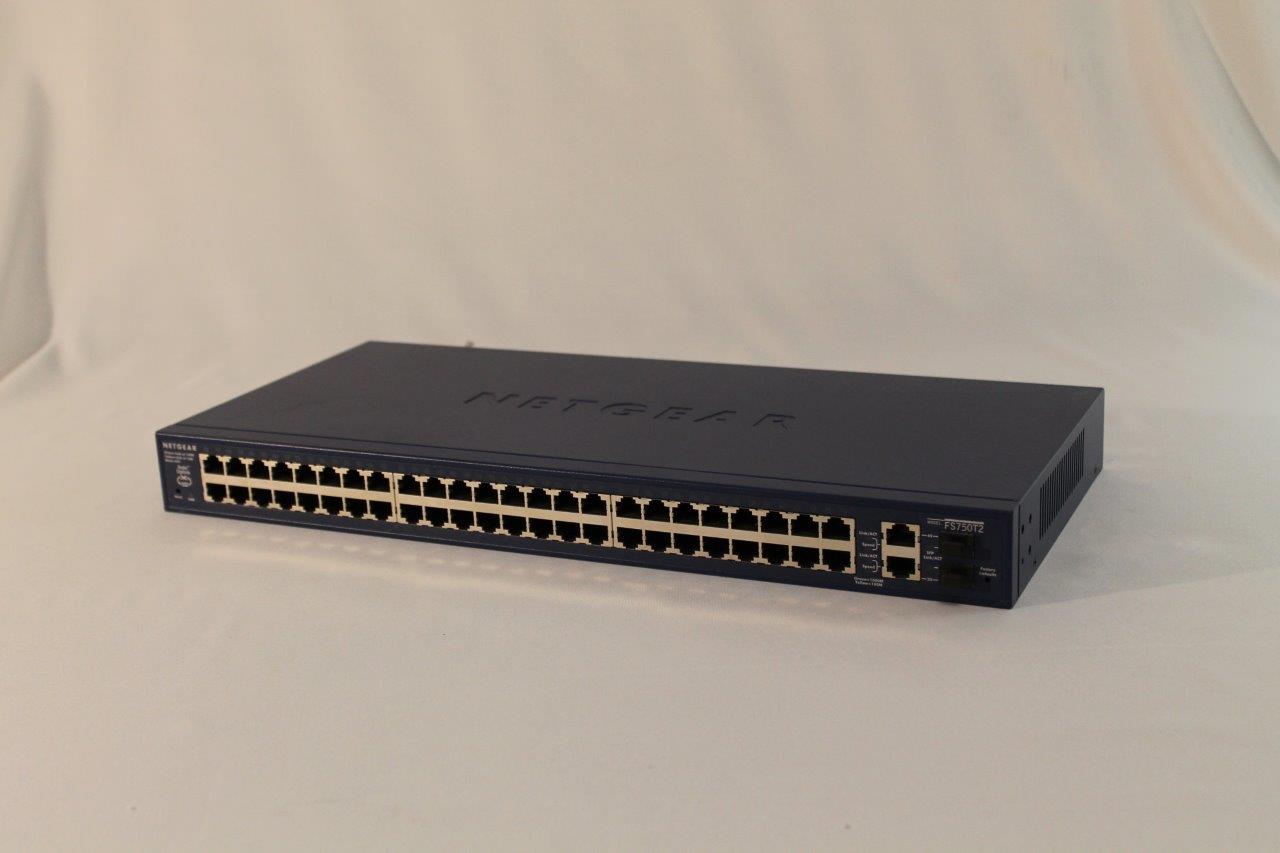

NETGEAR ProSafe FS750T2 48-port 10/100Base-TX Smart switch w/ 2 Gigabit ports

Model: FS750T2
Ports: 48- 10/100 + 2- Combo Gigabit SFP
Full-Duplex
Compatibility: PC
Description
10/100 ports and 2 10/100/1000 Gigabit Ethernet ports for high-speed connectivity. The switch provides web-based management and SNMP for customization, but is ready to use out of the box. It is an ideal solution for businesses that require more power than a simple switch can provide without the need for advanced Layer 2 and 3 managed support.
Flexible Connectivity

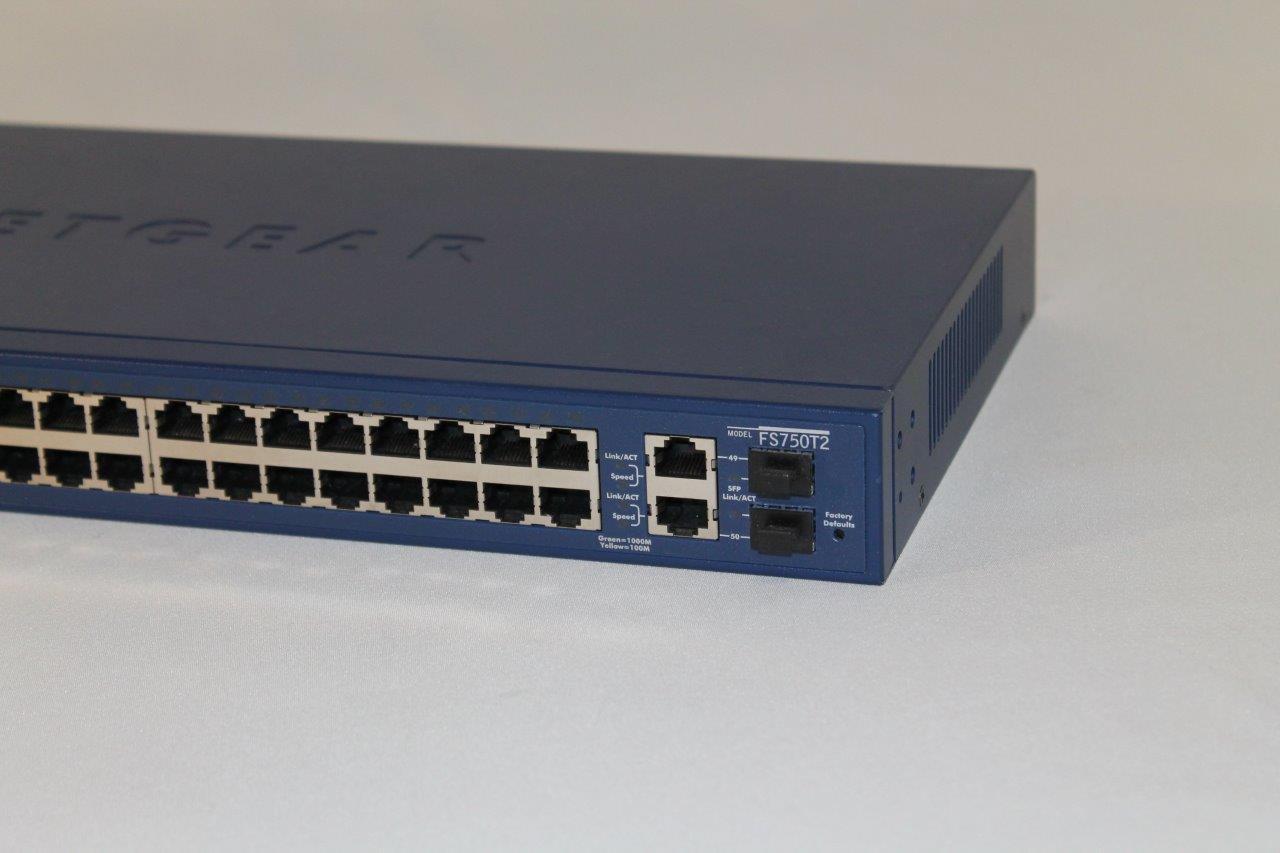

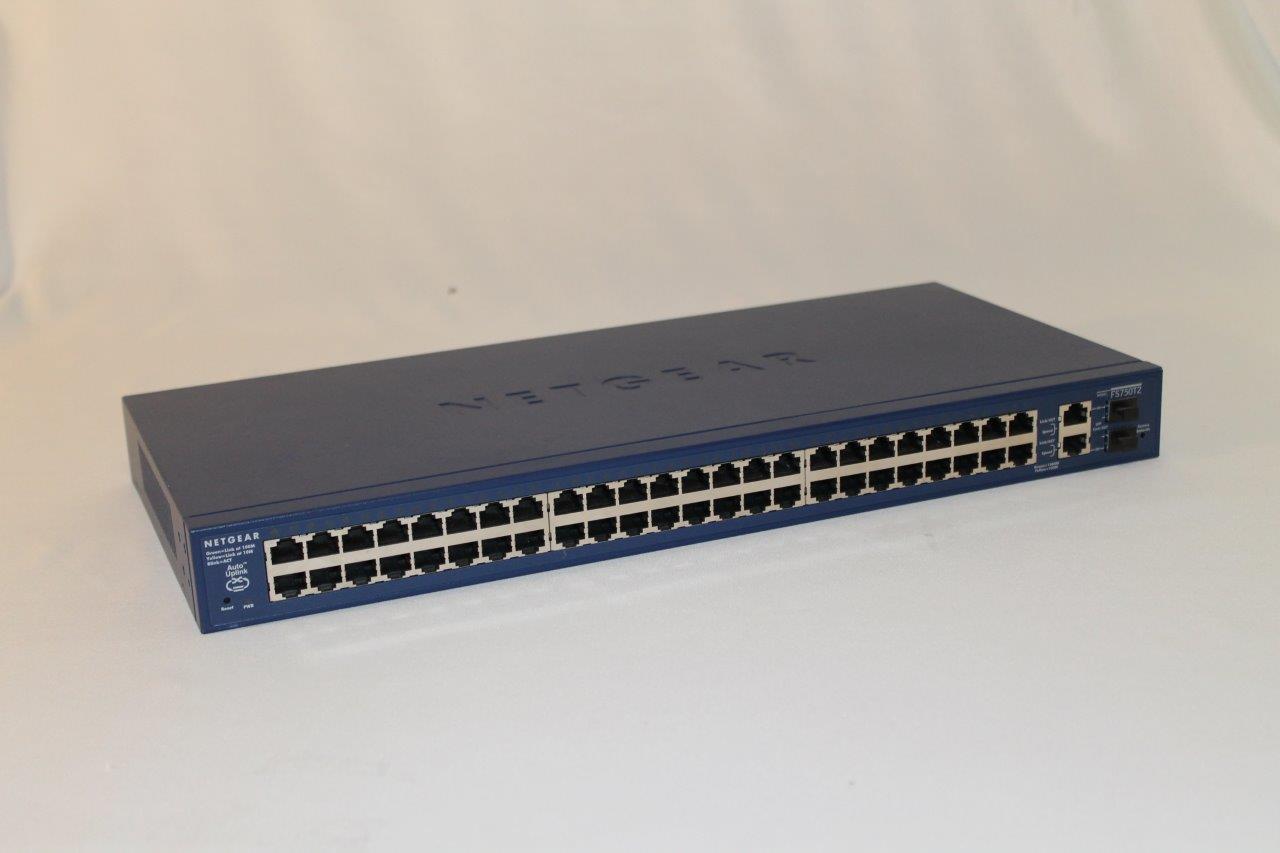

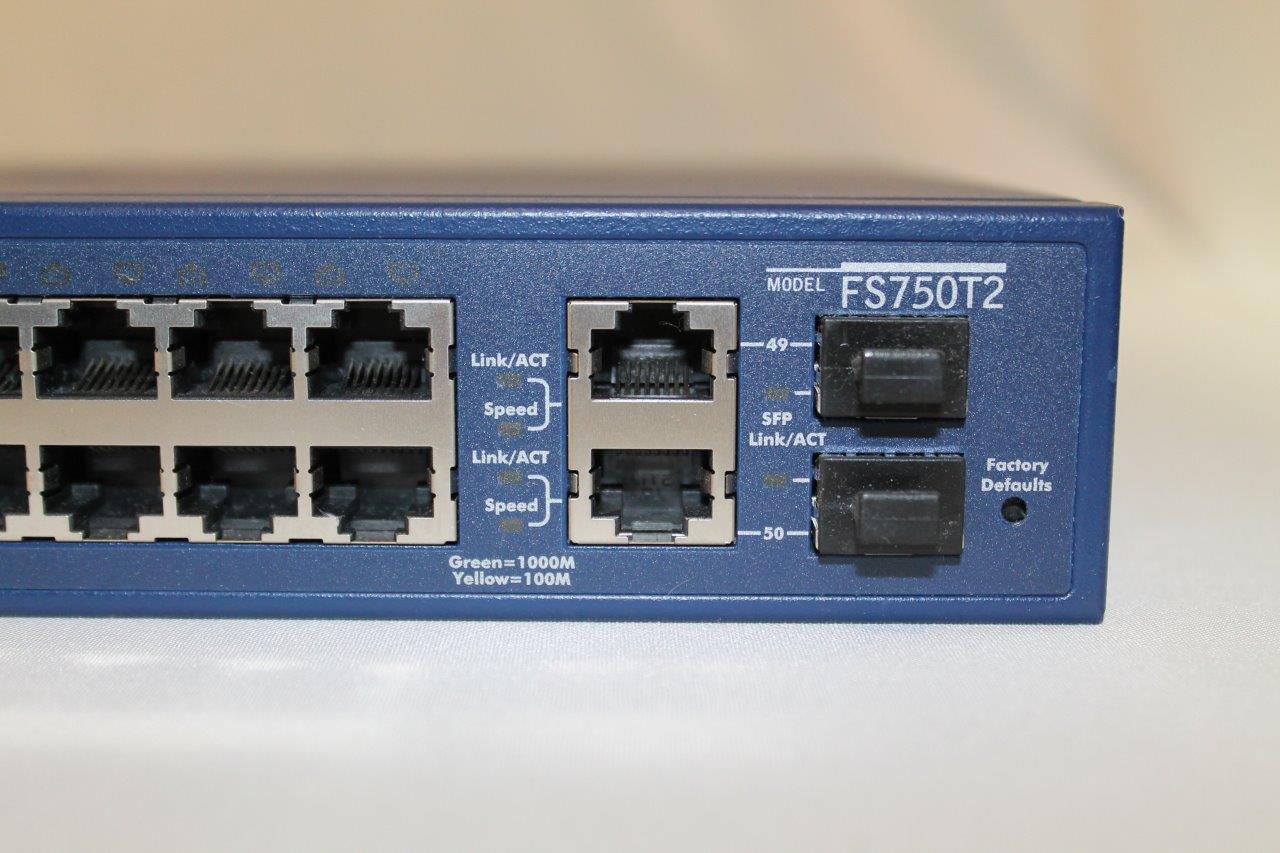

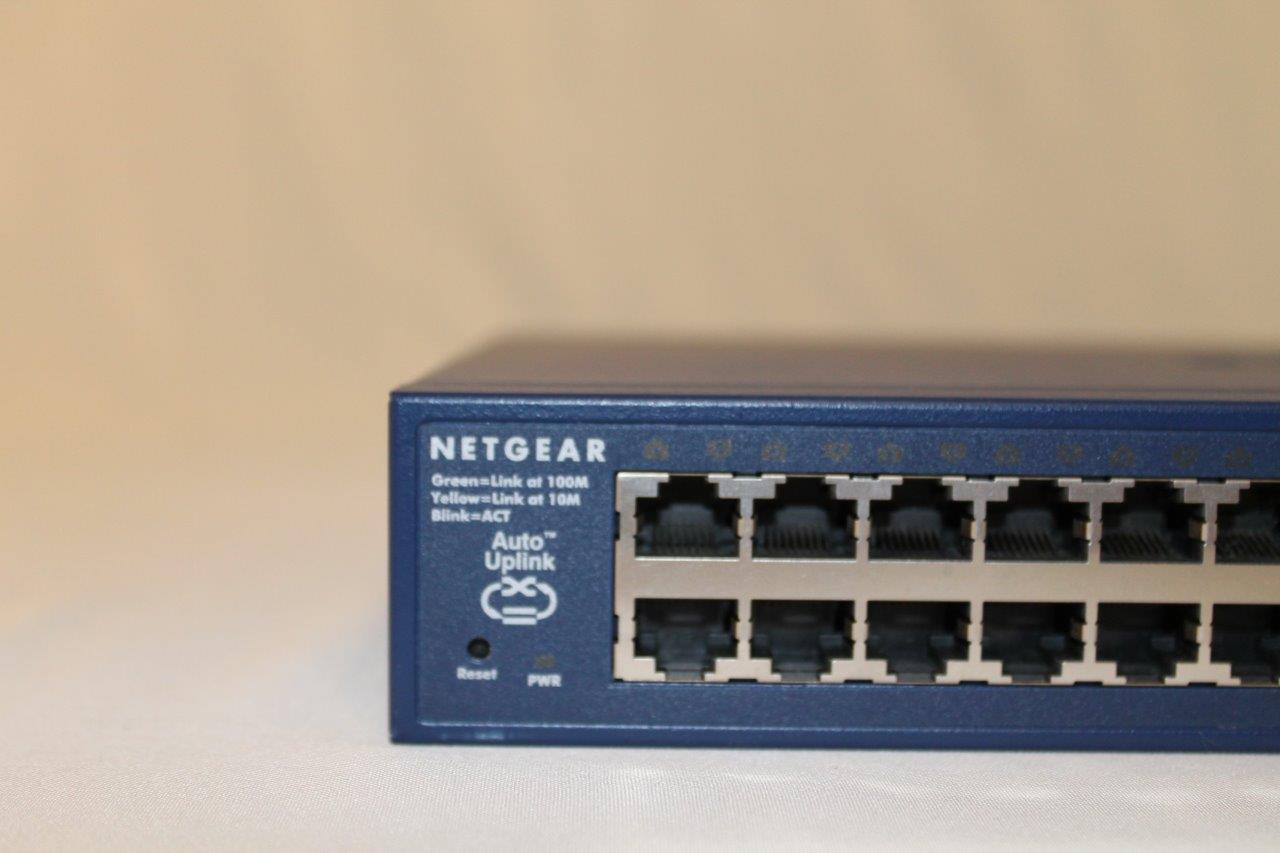

The switch features 48 10/100 Ethernet ports and 2 Gigabit Ethernet ports for high-speed connectivity. This makes the switch an ideal solution for network environments that require a large number of physical connections. The switch also features dual SFP slots for GBIC expansion modules.
Smart Management Features
The switch supports web-based smart management for performance monitoring, port configuration, VLAN traffic control, port trunking and CoS prioritization. It is optimized for the ProSafe Network Management Software and also works with SNMP-based management software
Specifications
Performance
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Protocols: Standard Network Protocols
Ports: 48x 10/100 Mbps RJ-45; 2x 10/100/1000 Mbps Gigabit Ethernet RJ-45; 2x SFP Slots
Speed: 10/100 and 10/100/1000 Mbps
MAC Address Table Size: 8000
Switching Method: Store-and-Forward
VLANs: 64 (IEEE 802.1Q Static VLAN); 50 (Port-based VLAN)
Management: IEEE 802.1Q Static VLAN, Port-Based VLAN, IEEE 802.1p Class of Service (CoS), Port-based QoS, IEEE 802.3ad Manual Link-Aggregation, IEEE 802.1D Spanning Tree Protocol, RFC 1157 SNMP v1, RFC 1213 MIB II, RFC 1643 Ethernet Interface MIB, RFC 1493 Bridge MIB, RFC 2131 DHCP Client, Private Enterprise MIB, Port Mirroring Support, Web-Based Configuration, Configuration Backup/Restore, Password Access Control, Firmware Upgradeable
General
Form Factor: Rackmount
System Requirements: Category-5 Network Cables; Network card for each PC; Network Software (eg, Windows)

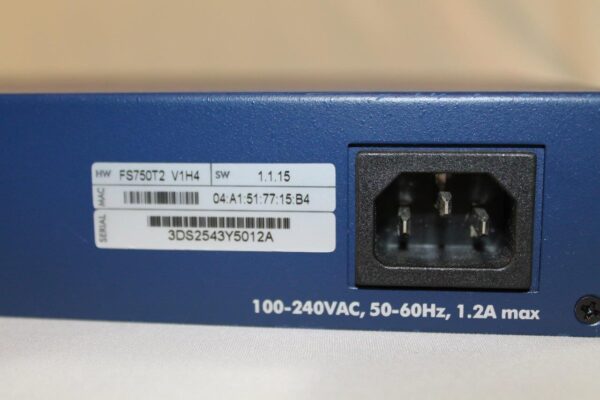

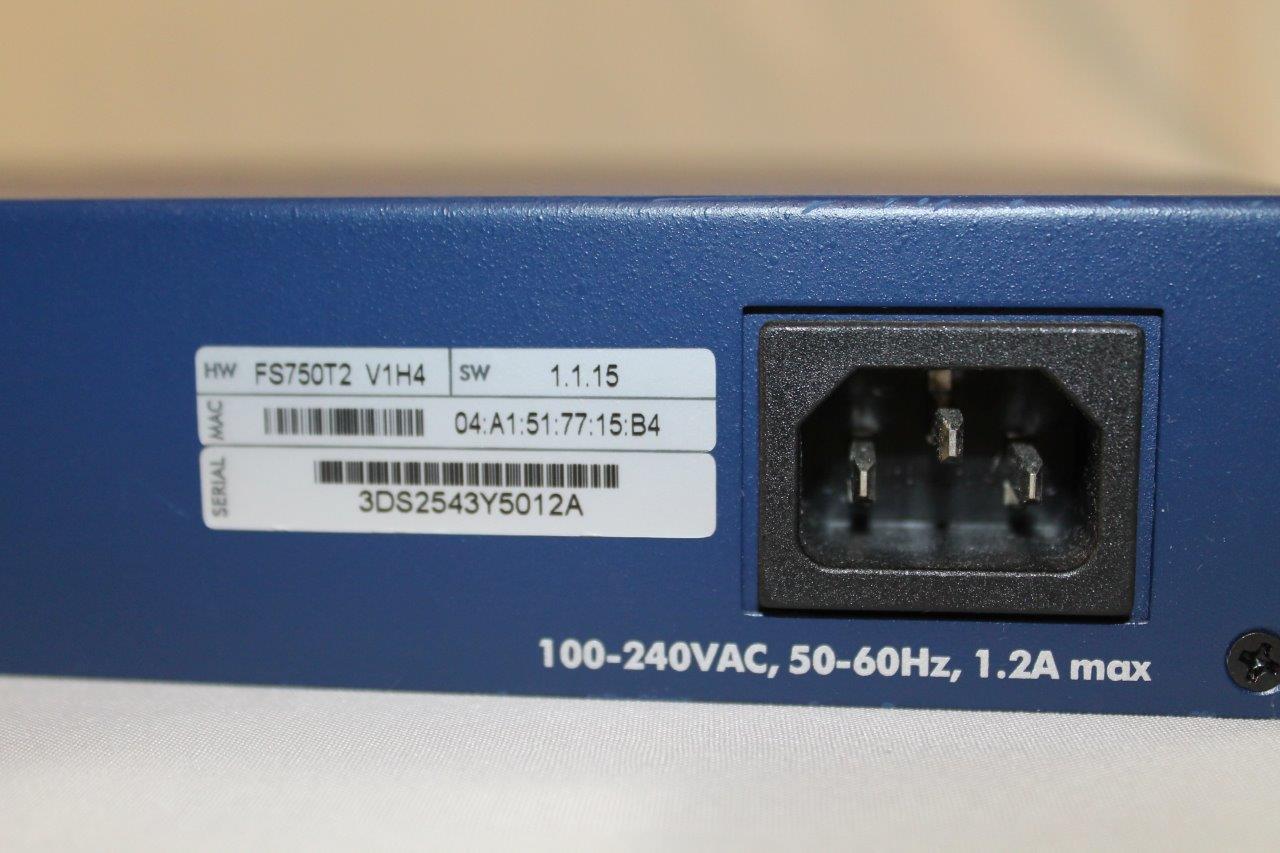

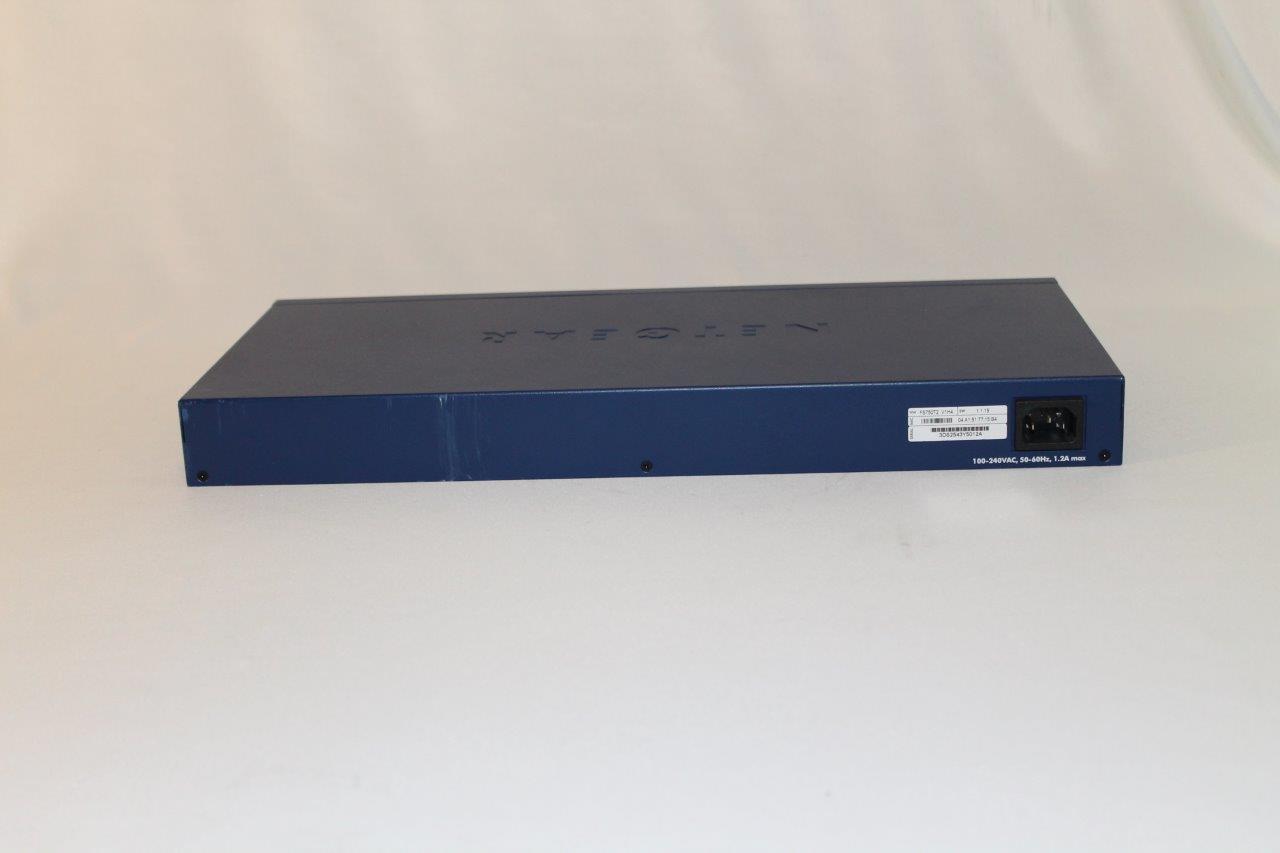

Power Requirements: AC: 100-240 VAC, 50-60 Hz
Consumption: 21 watts
Dimensions: 17.8 x 1.7 x 8.1″ (44 x 4.3 x 20.5 cm)
Weight: 7 lb (3.2 kg)
