Description

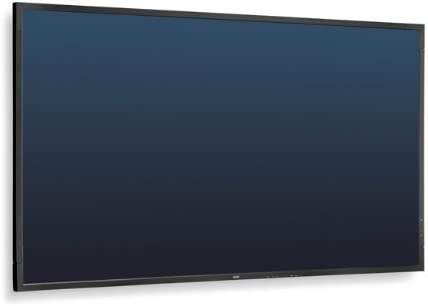

NEC’s 46″ V463 high-performance large-screen display utilizes LED backlighting to deliver both environmental and functional benefits for digital signage. The V463’s commercial-grade panel is capable of displaying brilliant imagery and capturing the audience’s attention. This full HD model features built-in 10W speakers and an Open Pluggable Specification (OPS)-compliant expansion slot, which future-proofs the display and allows for the seamless integration of a computer or other NEC/third-party component. Because video, RS-232 control and power are passed internally from the display to the computer, additional cabling is not required, thereby simplifying installations. With integrated temperature sensors and fans, this display is ideal in applications that require extended use, including retail stores, restaurants, indoor venues, training facilities and corporate boardrooms.

Features

LED backlighting technology reduces power consumption and allows for a slimmer cabinet depth

Built-in expansion slot supports the Open Pluggable Specification (OPS), which is the industry’s first standardization option slot that simplifies digital signage installations

Full 1080p high-definition resolution provides stunning detail

Commercial-grade LCD panel and components enable extended run time

Expanded connectivity with digital loop-through

TileMatrix allows you to create video walls up to 10 x 10

Details

Panel Technology A-MVA; Viewable Image Size 46″;

Native Resolution 1920 x 1080;

Pixel Pitch 0.53mm

Backlight Type LED Edge-lit;

Pixels Per Inch 47@ native resolution;

Brightness (typical) 350cd/m2; Brightness (maximum) 500cd/m2

Contrast Ratio (typical) 4000:1;

Viewing Angle 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10;

Refresh Rate 60Hz;

Aspect Ratio 16:9

Active Screen Area 40.1x 22.5in. /1018.1 x 572.7mm;

Orientation Landscape/Portrait;

Displayable Colors More than 16.7 million
