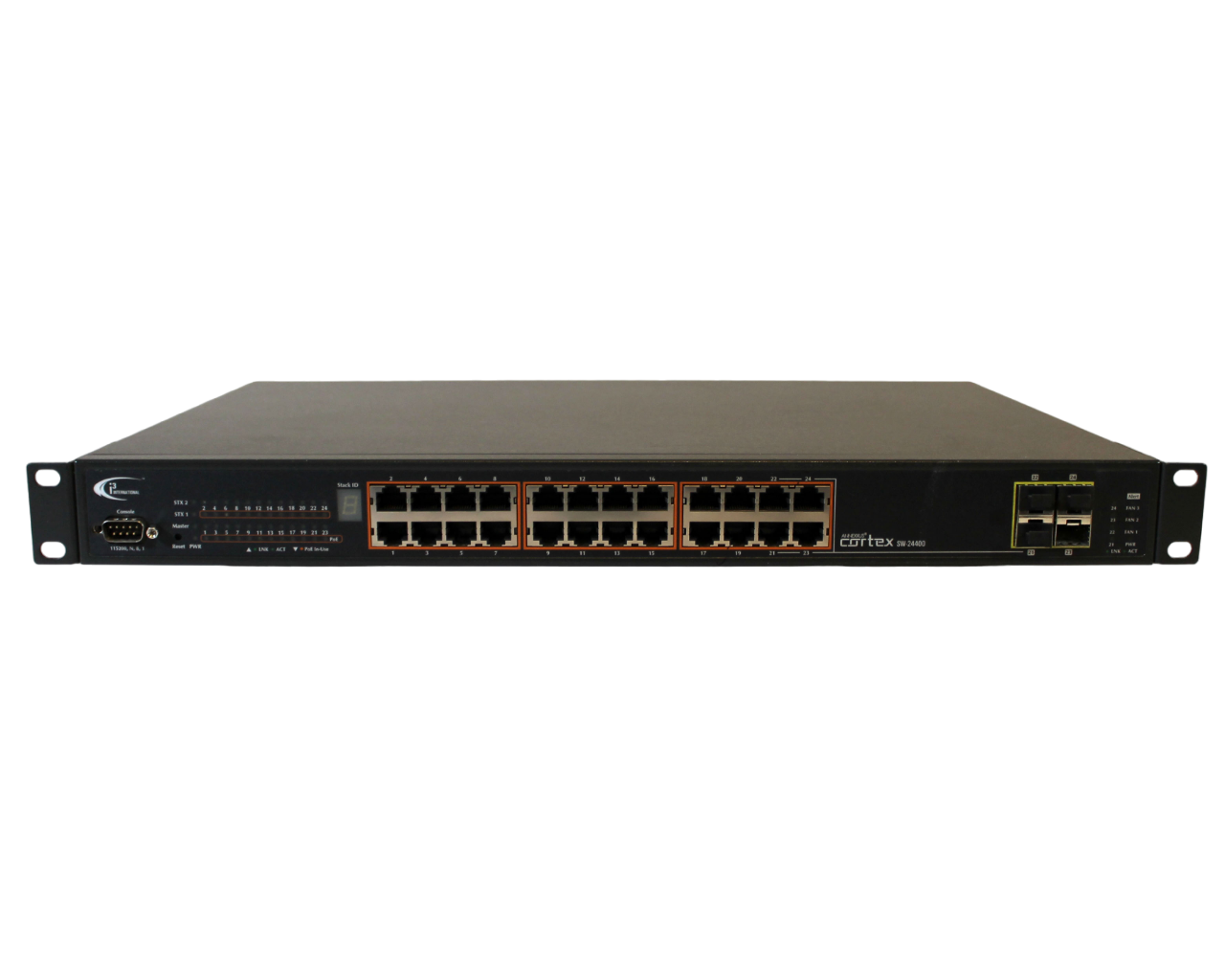

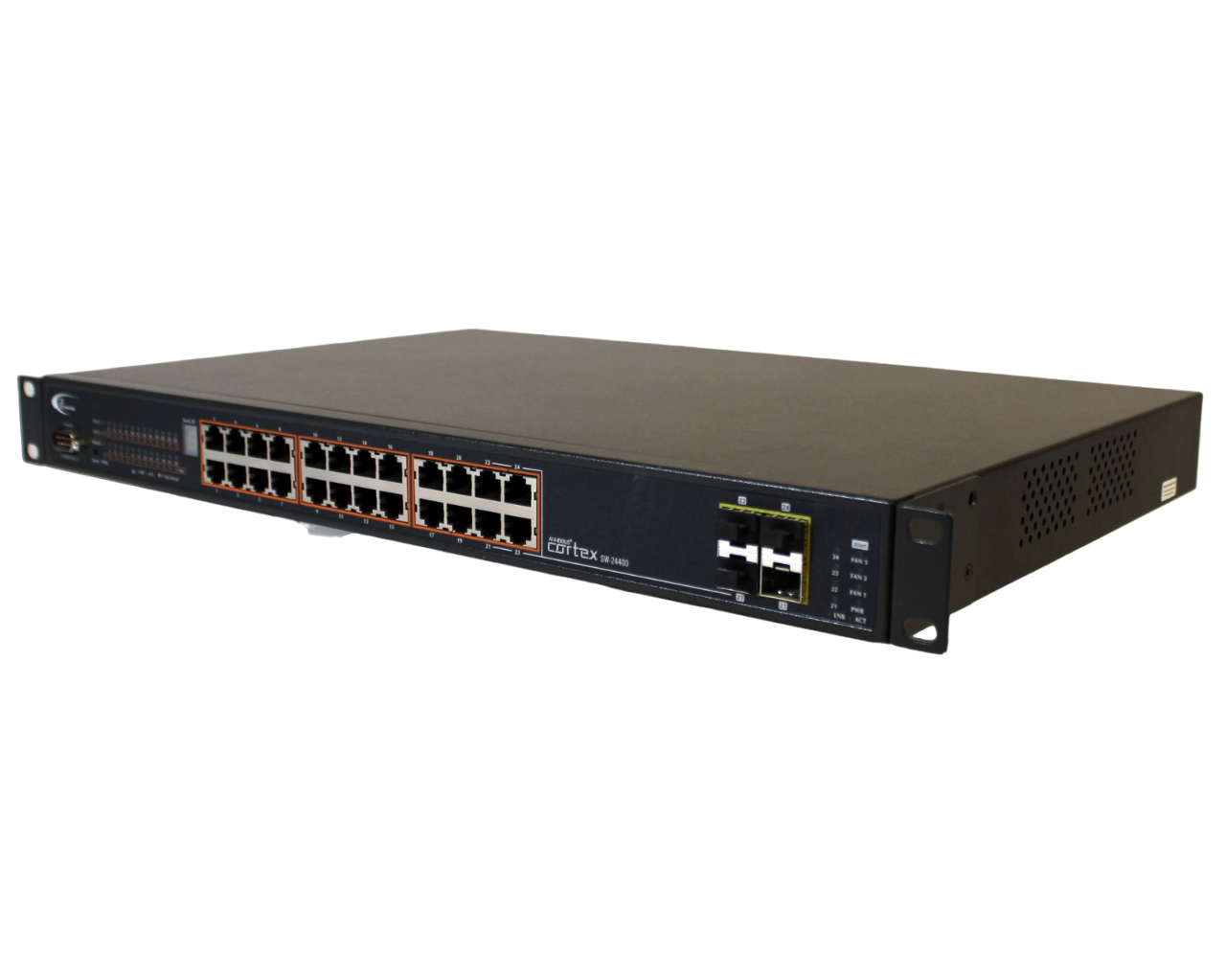

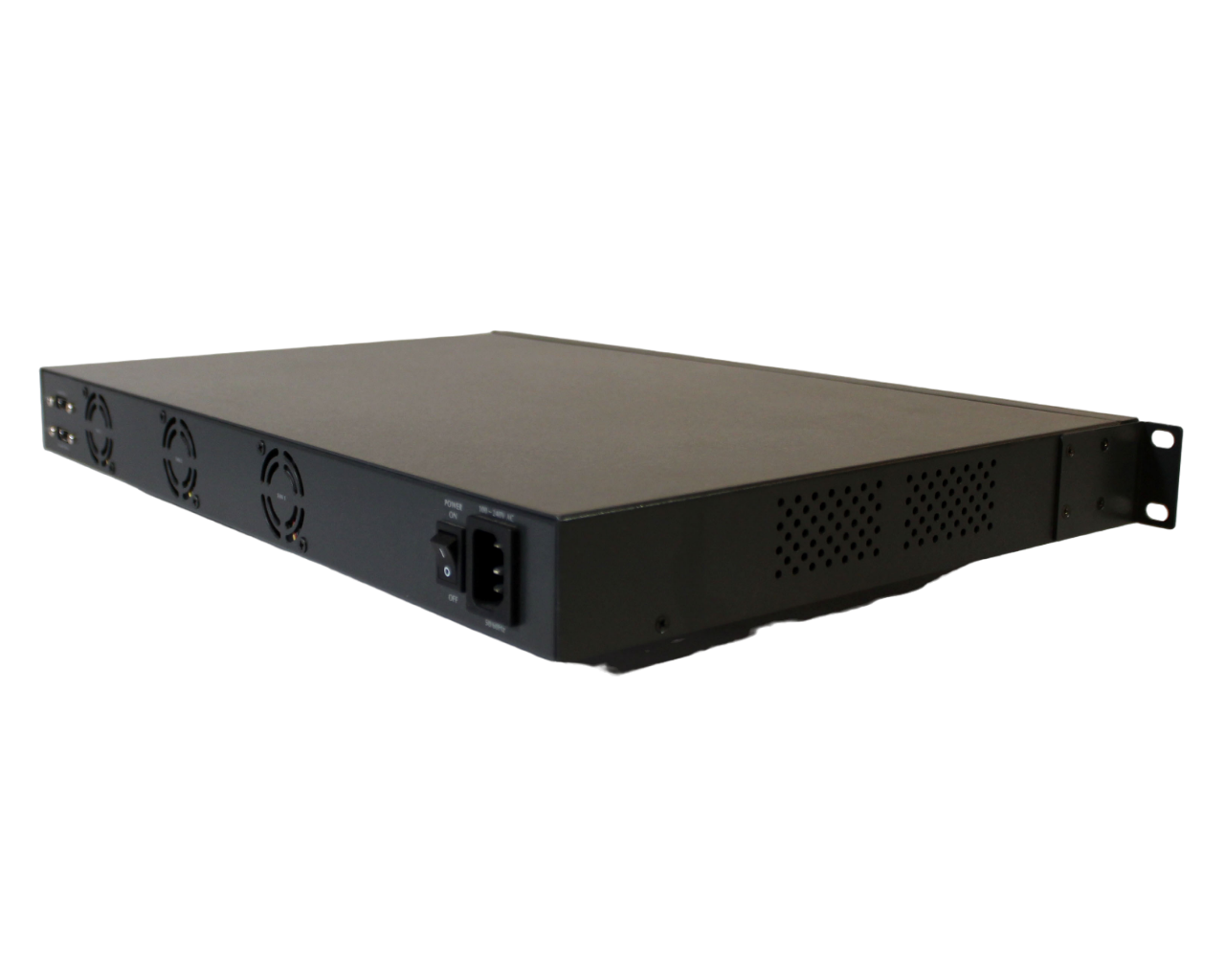

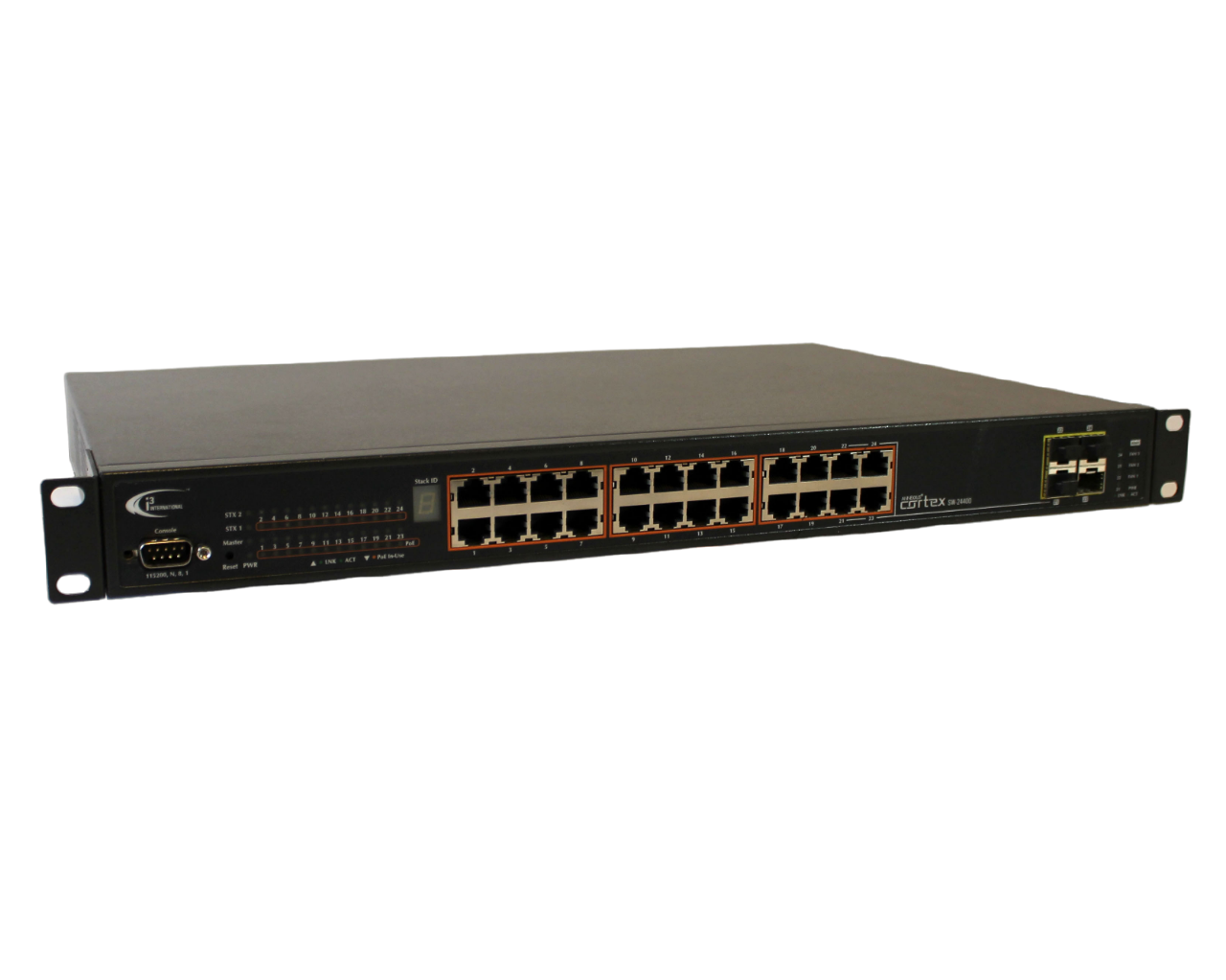

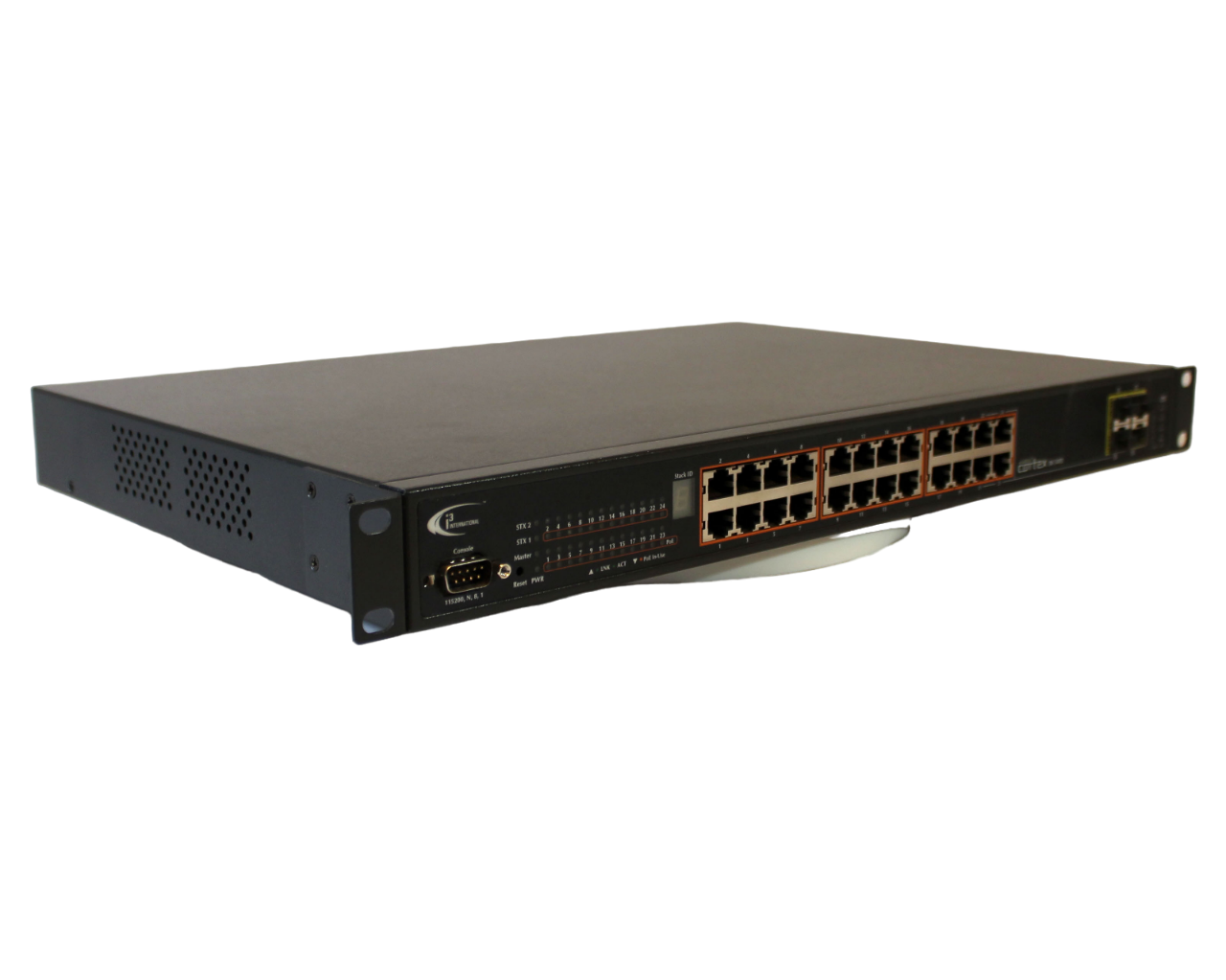

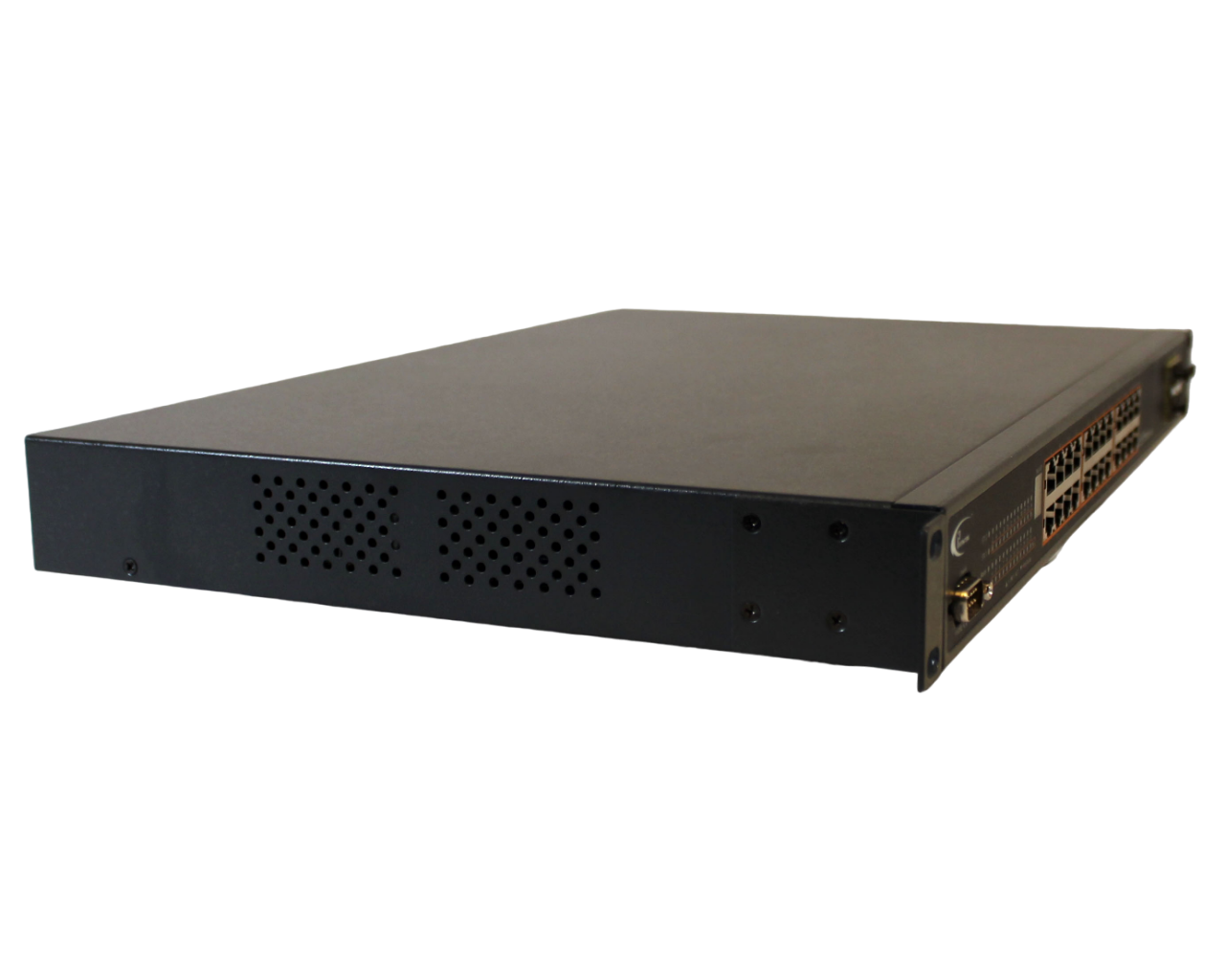

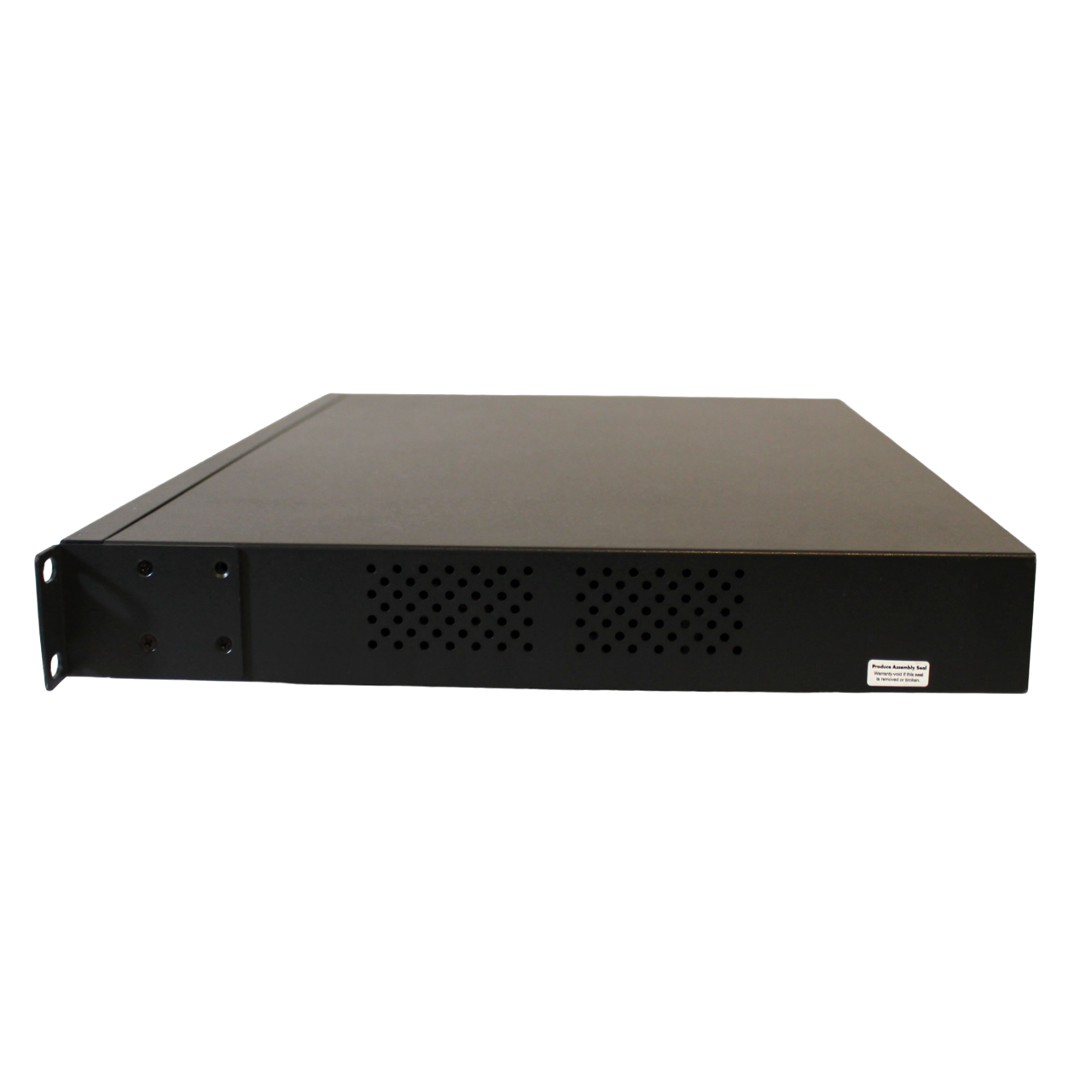

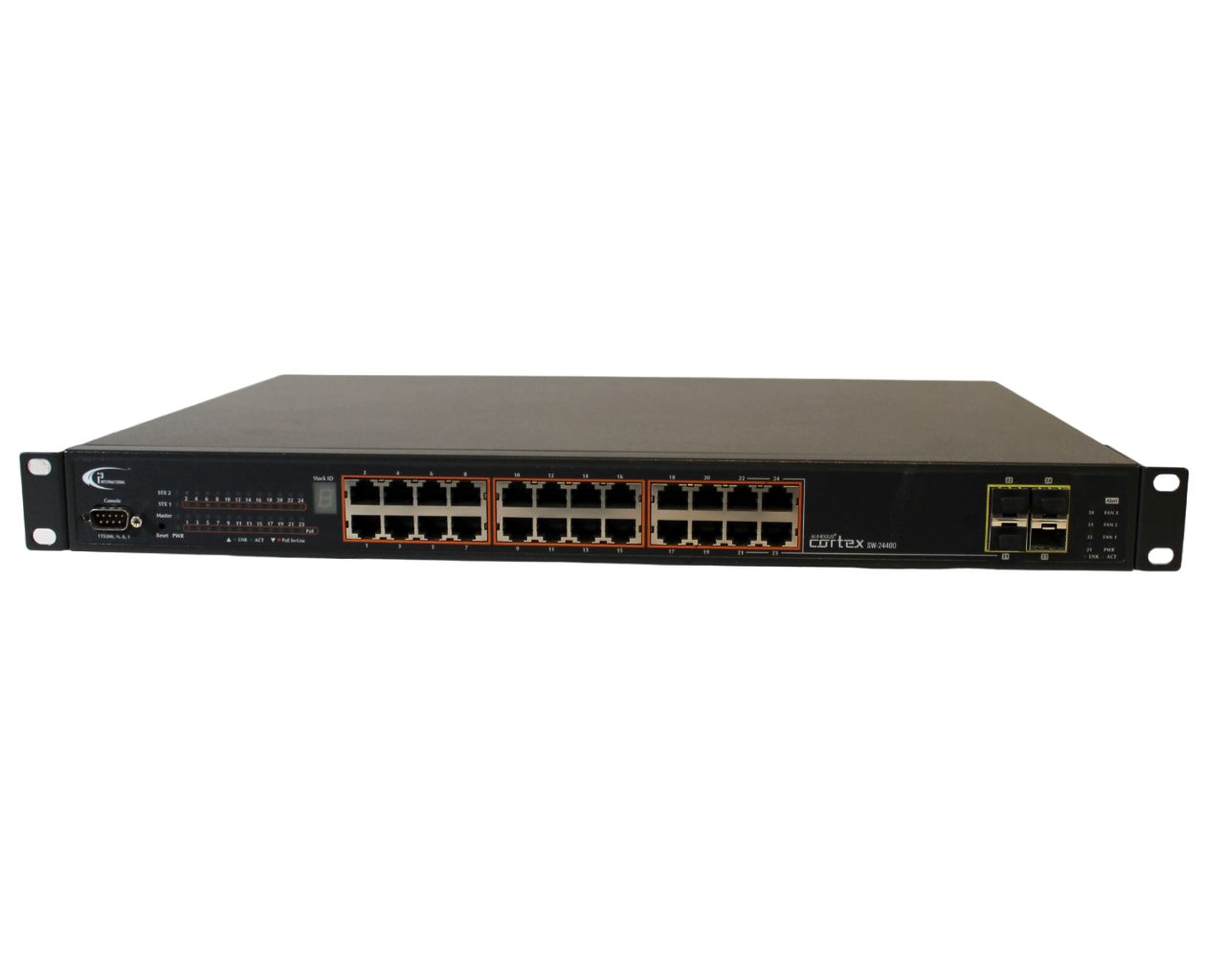

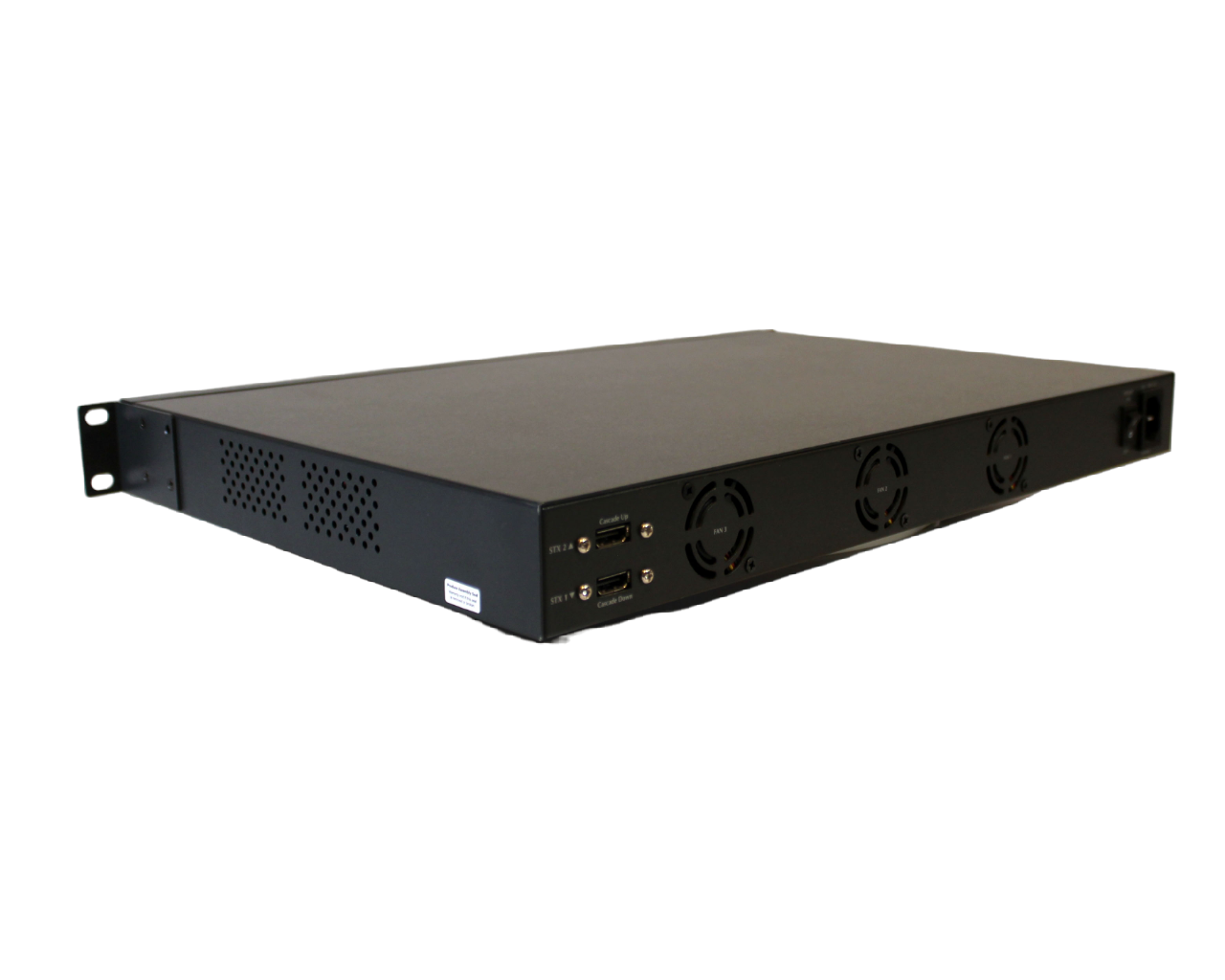

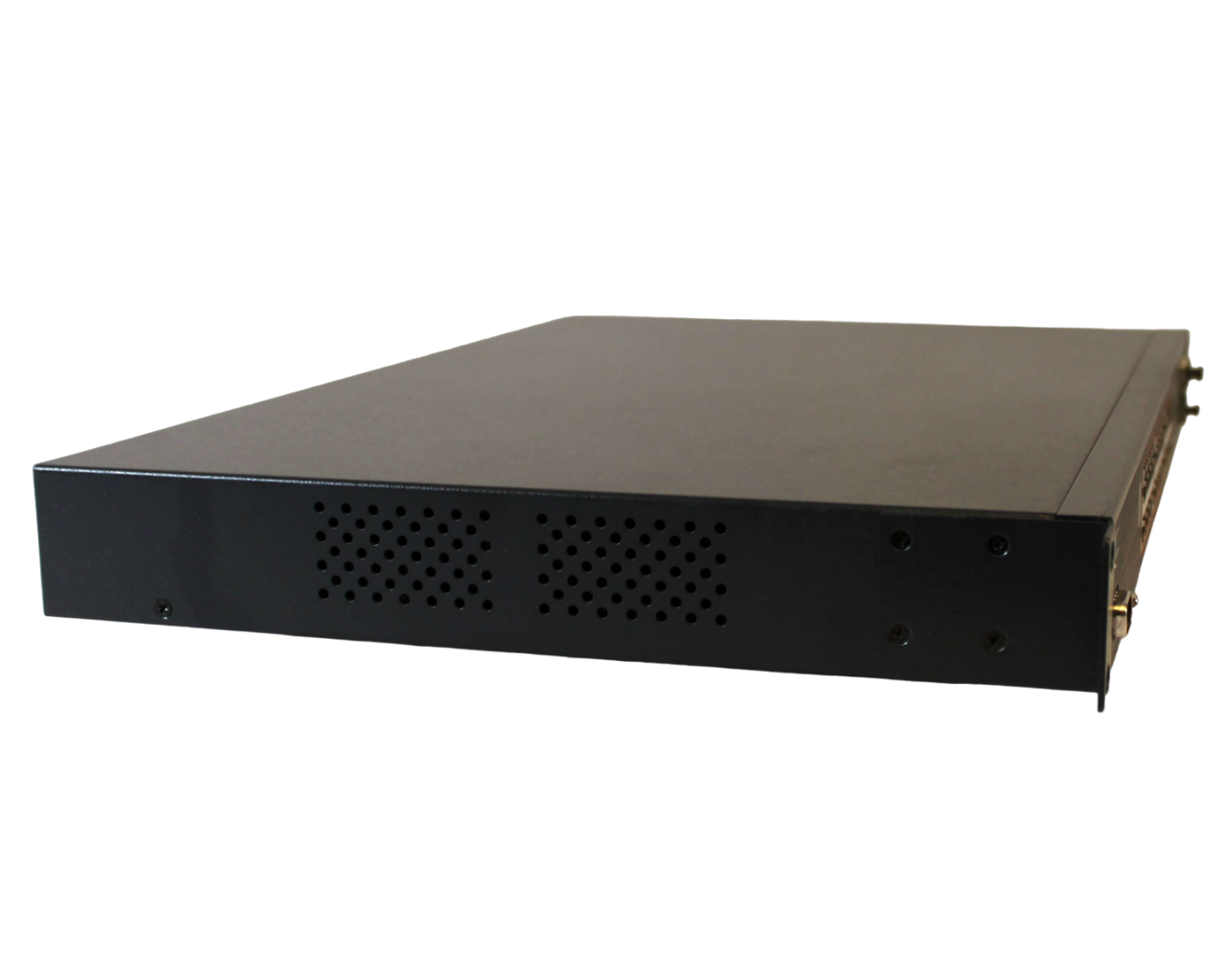

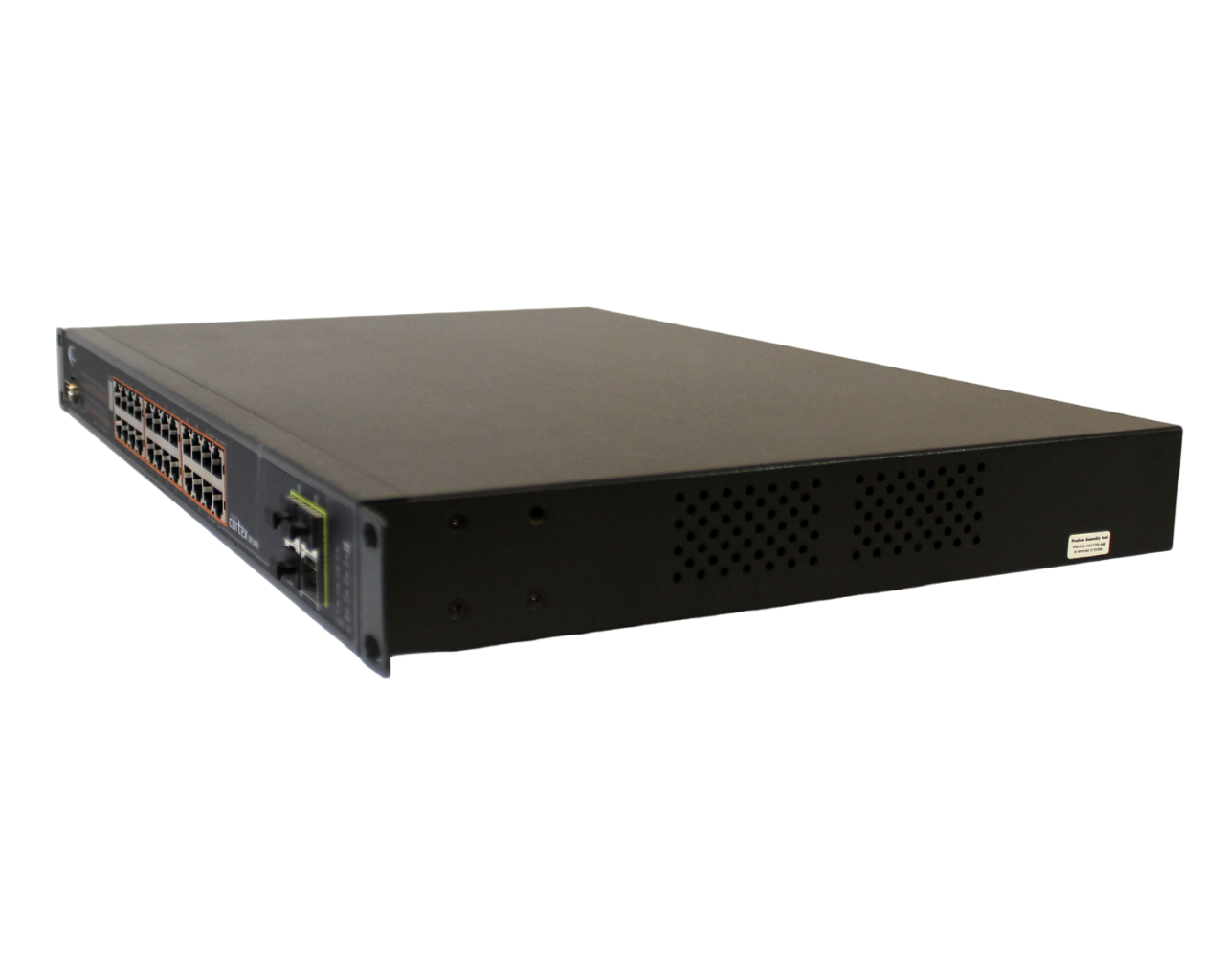

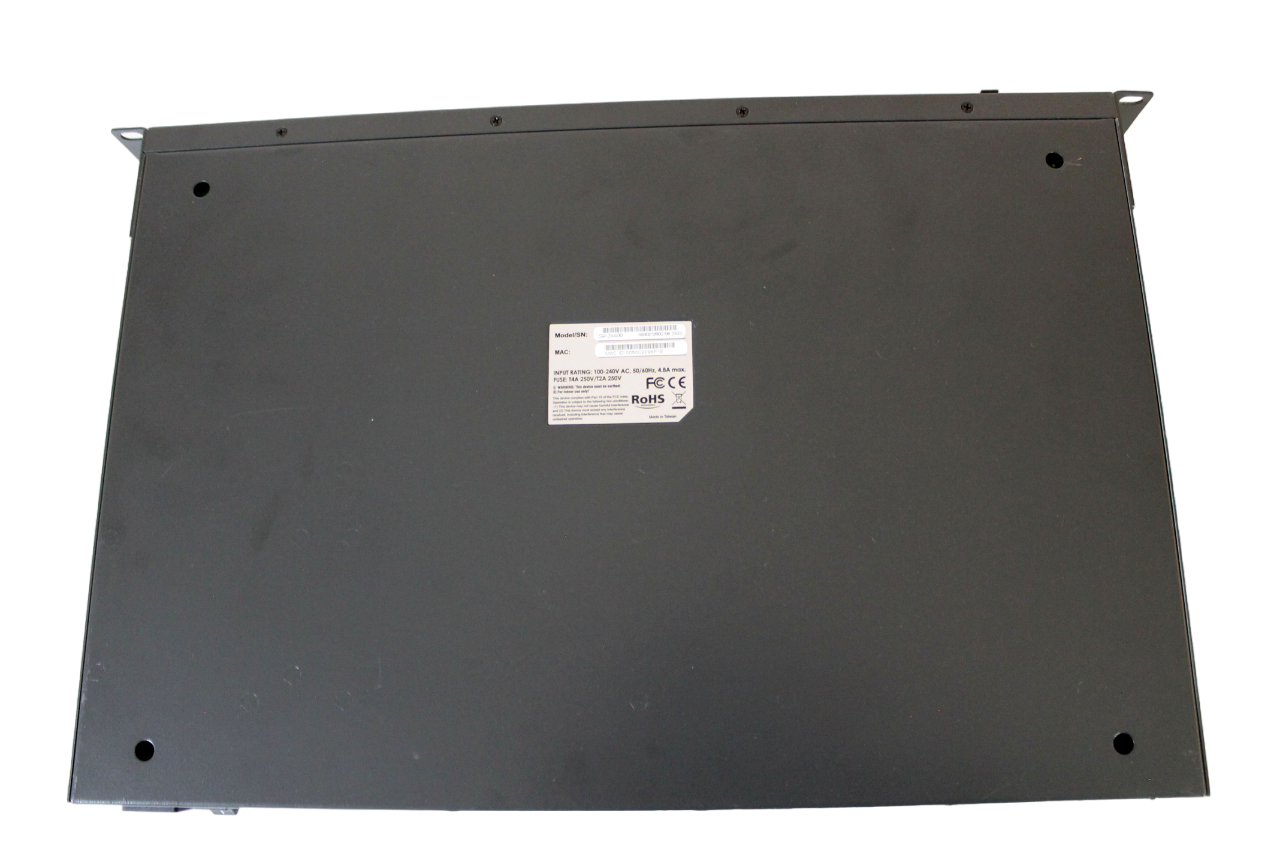

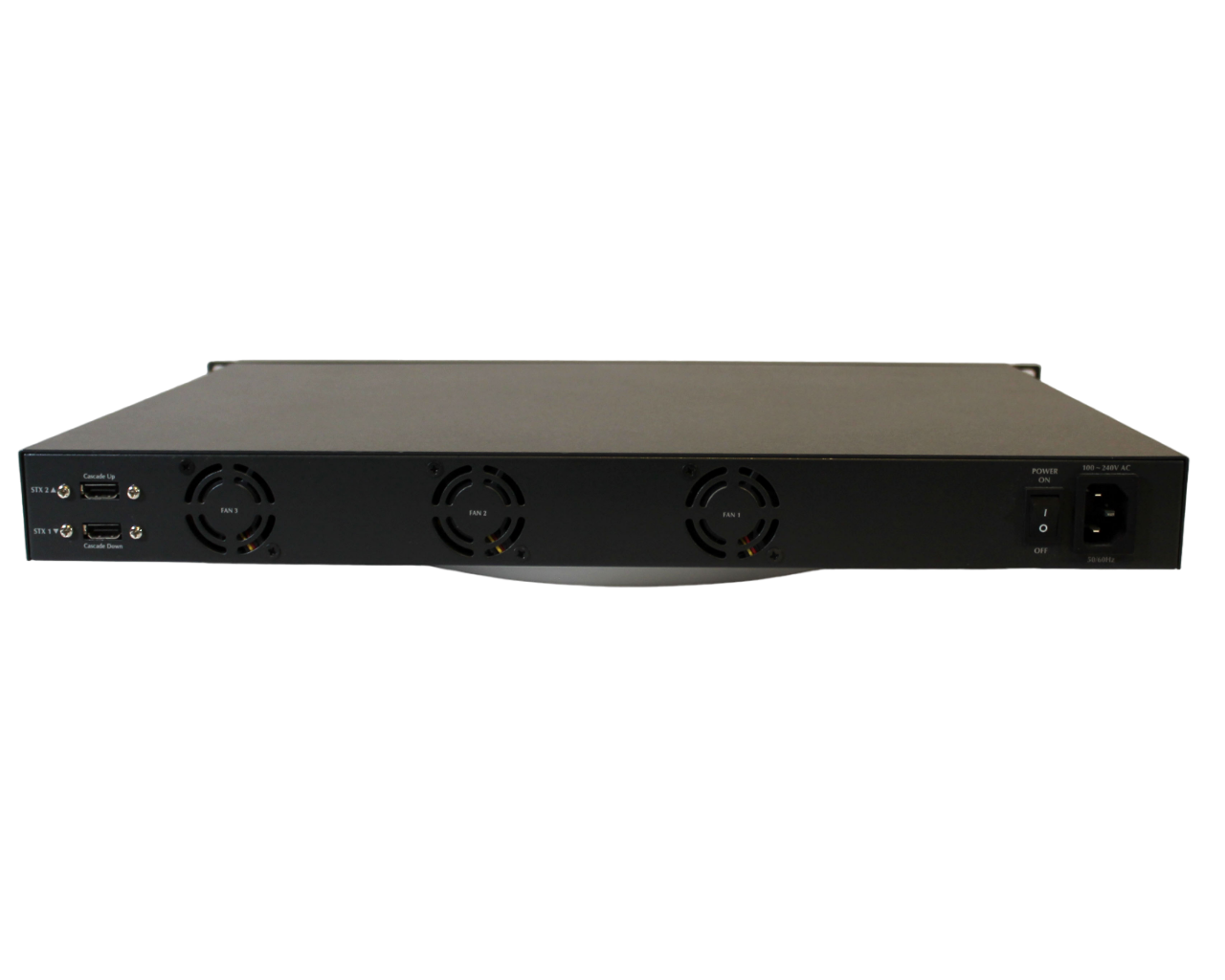

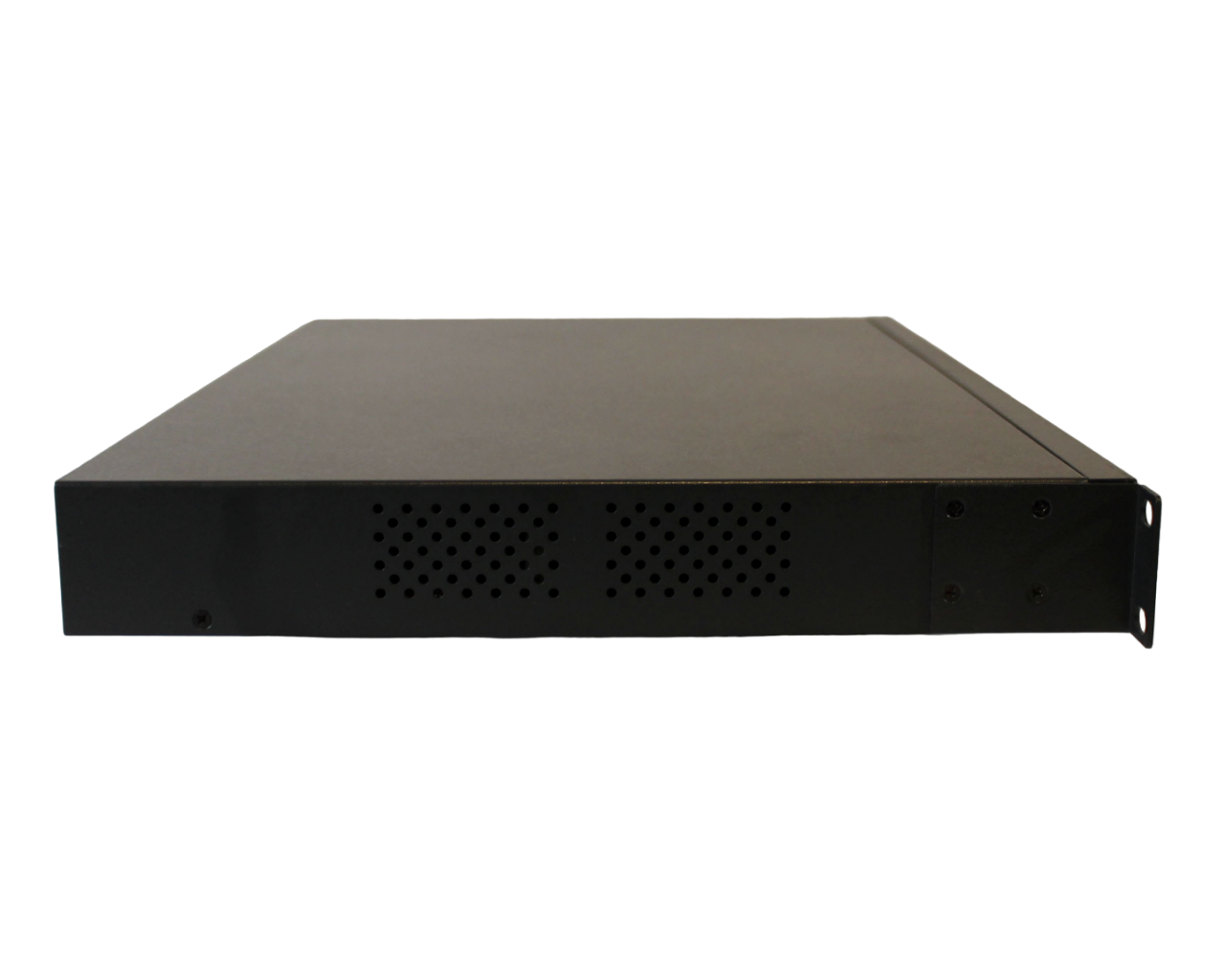

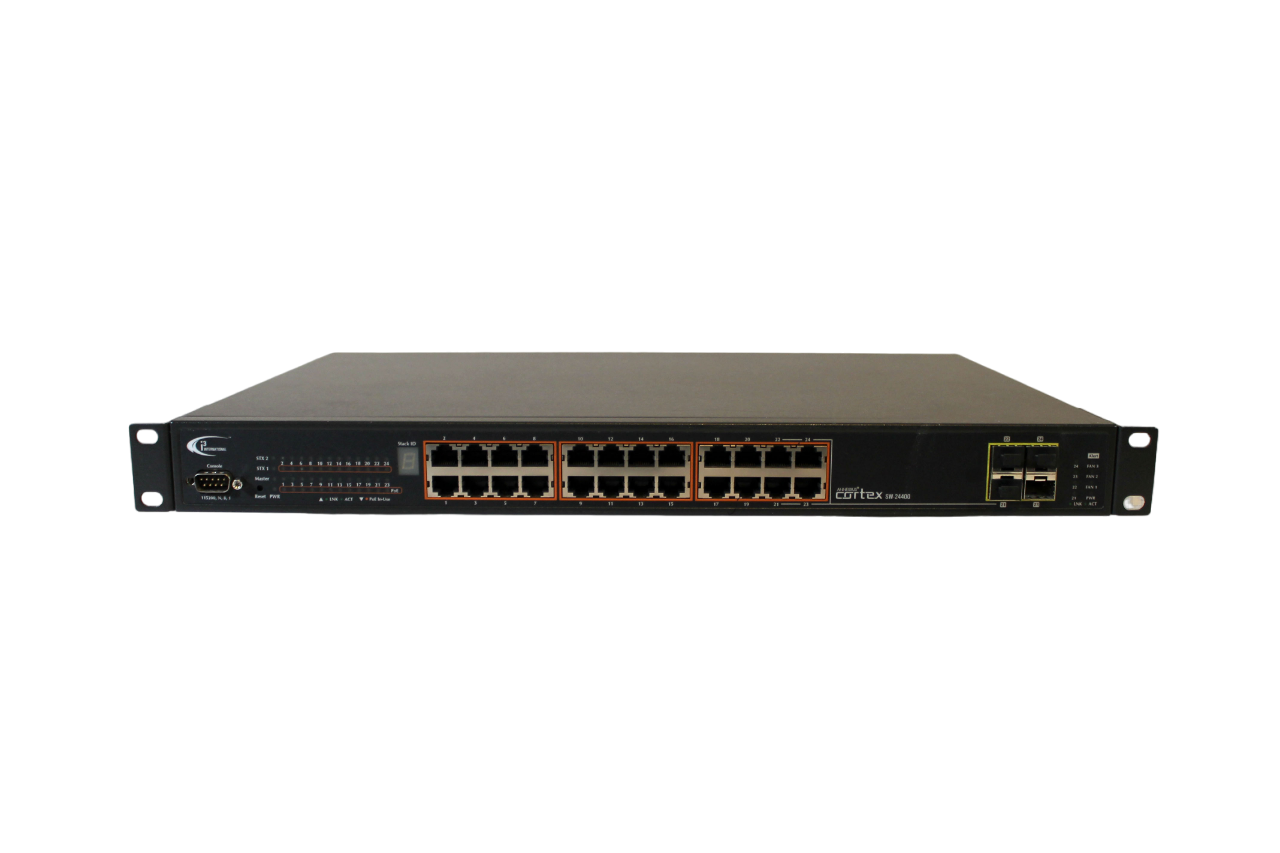

i3-International Annexxus Cortex Stackable PoE Video Network Switch SW-24400 with rack mount ears

Description:
– 24-Port 10/100/1000Base-T Gigabit RJ-45 with IEEE 802.3af/802.3at PoE Injector
– 4 100/1000Base-X mini-GBIC/SFP slots, shared with Port-21 to Port-24
– 2 HDMI-like 5GbE Stacking interfaces
– RS-232 DB9 console interface for Switch basic management and setup
– Power over Ethernet, 802.3af/802.3at compliant
– PoE Management, Stacking, Plug and Play connectivity
– Link Aggregation groups spanning multiple switches in a stack
– Hardware learning with MAC table synchronization across stack
– Supports VLAN, Supports Spanning Tree Protocol
– Supports Link Aggregation
Specifications:
Brand: i3 international
Model: SW-24400
Type: PoE Video Network Switch
Number of LAN Ports: 24
Copper Ports: 24 10/ 100/1000Base-T RJ-45 Auto-MDI/MDI-X ports with IEEE 802.3at PoE injector
SFP/mini-GBIC Slots: 4 1000Base-SX/LX/BX SFP interfaces, shared with Port-21 to Port-24 100Base-FX SFP
transceiver compatible
Console: 1 x RS-232 DB9 serial port (115200, 8, N, 1)
Switch Processing Scheme: Store-and-Forward
Switch Fabric: 68Gbps
Address Table: 8K entries
Share data Buffer: 1392 kilobytes
Flow Control: IEEE 802.3x Pause Frame for Full-Duplex, Back pressure for Half-Duplex
Jumbo Frame: 10Kbytes
LED System: Power, Master, FAN Alert, PoE Power Alert, Ports: 10/100/1000 Link/Act, PoE In-Use,
SFP Link, Stack Port Link
Dimension (W x D x H): 440 x 300 x 44.5 mm, 1U height
Weight: 4.5kg
Power Consumption: Max. 432 Watts / 1473 BTU
Power Requirement: AC 100~240V, 50/60Hz
ESD Protection: 6KV DC
