Description

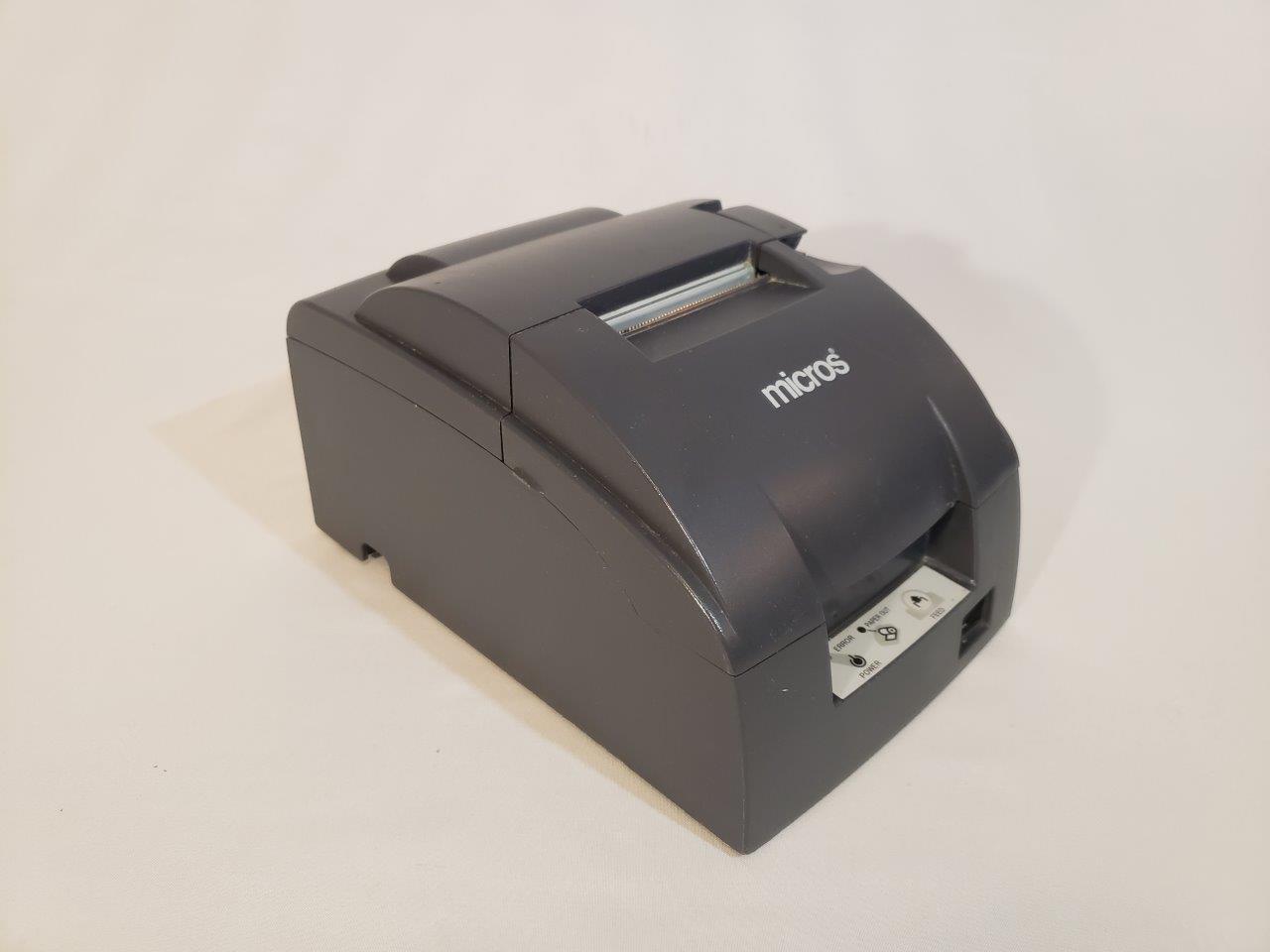

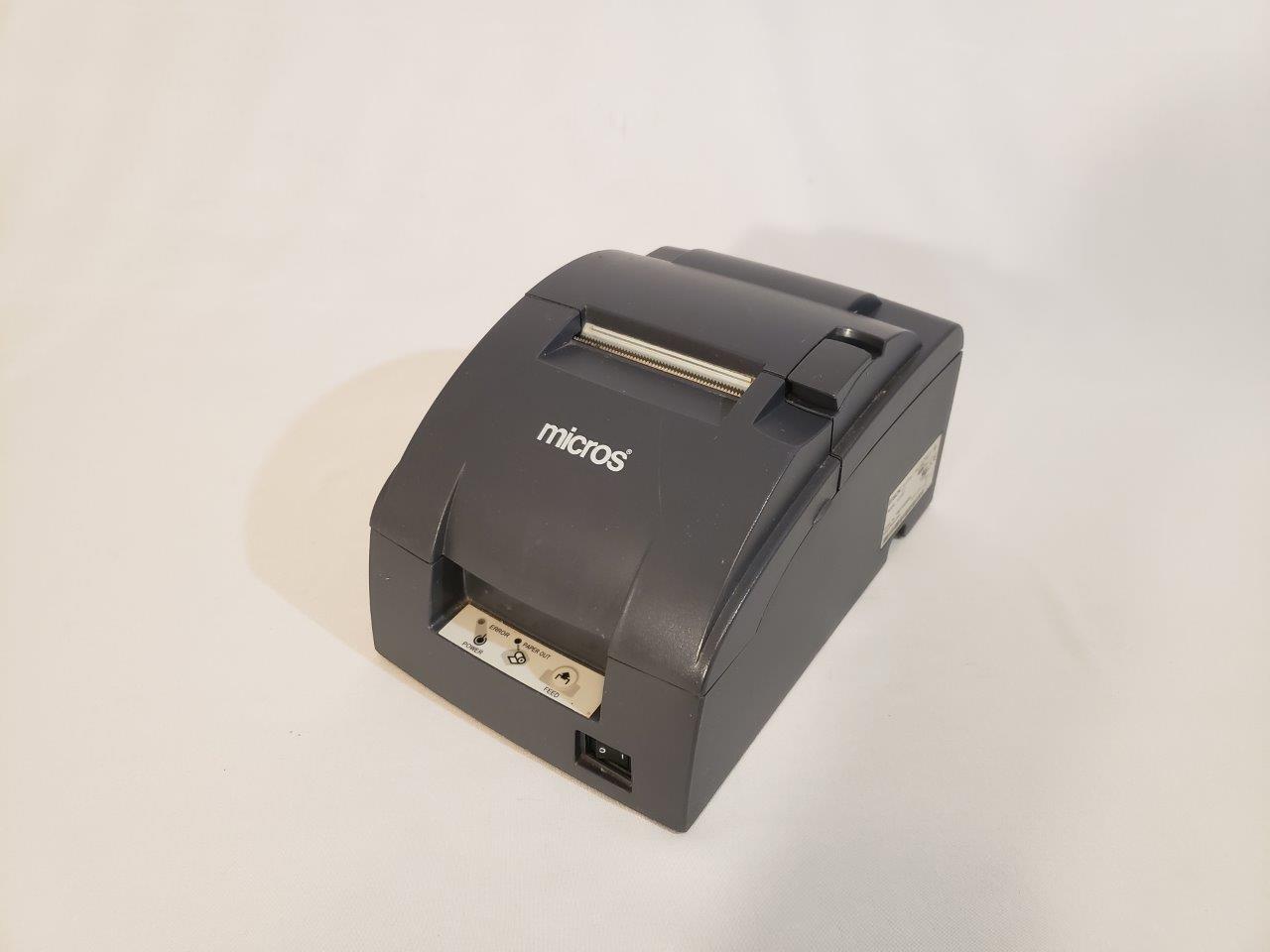

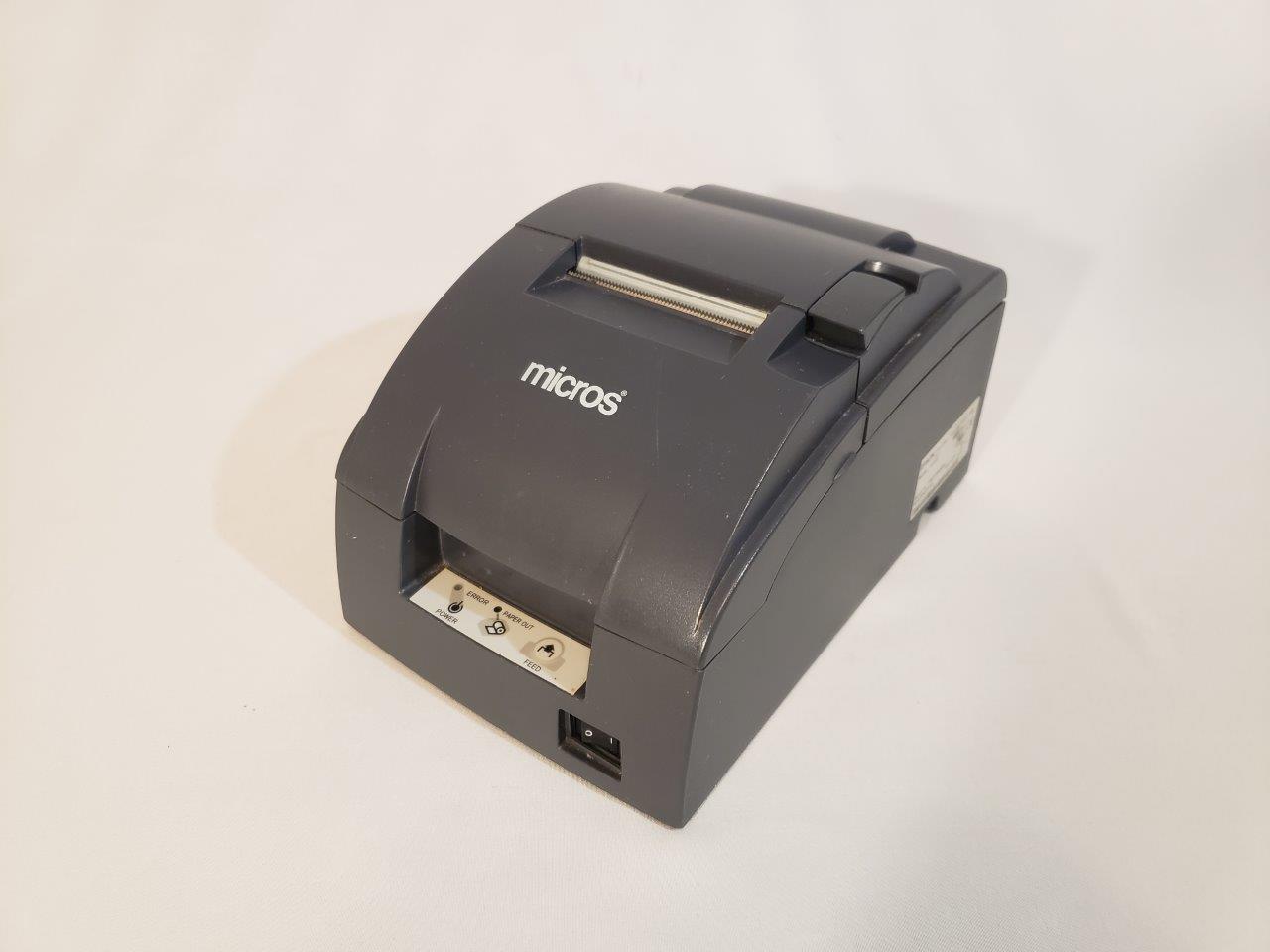

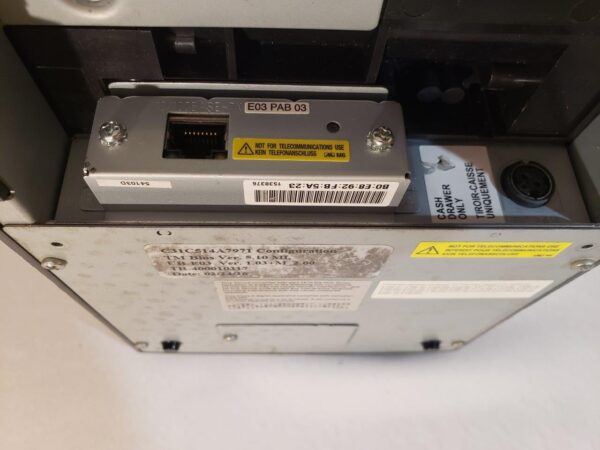

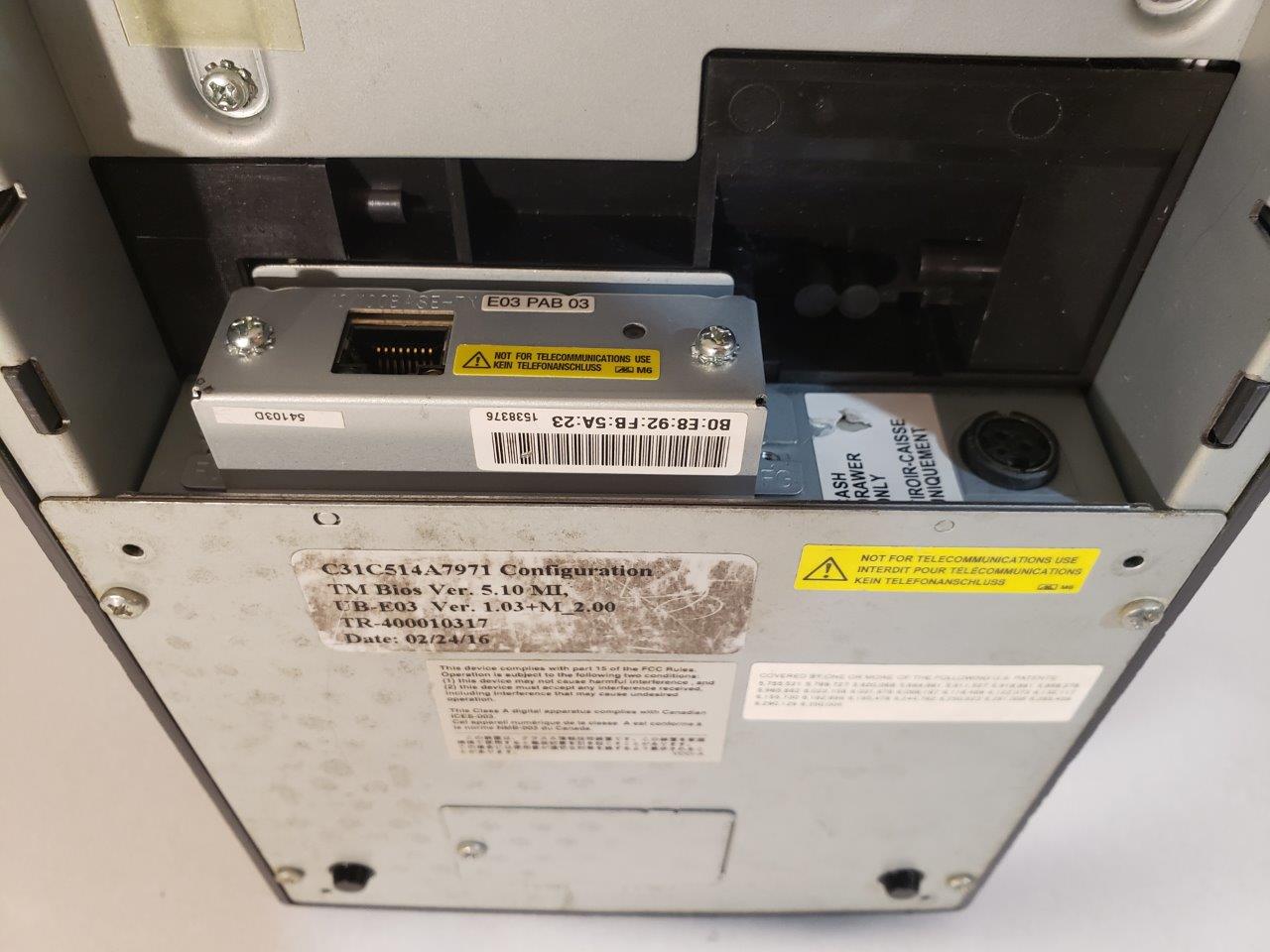

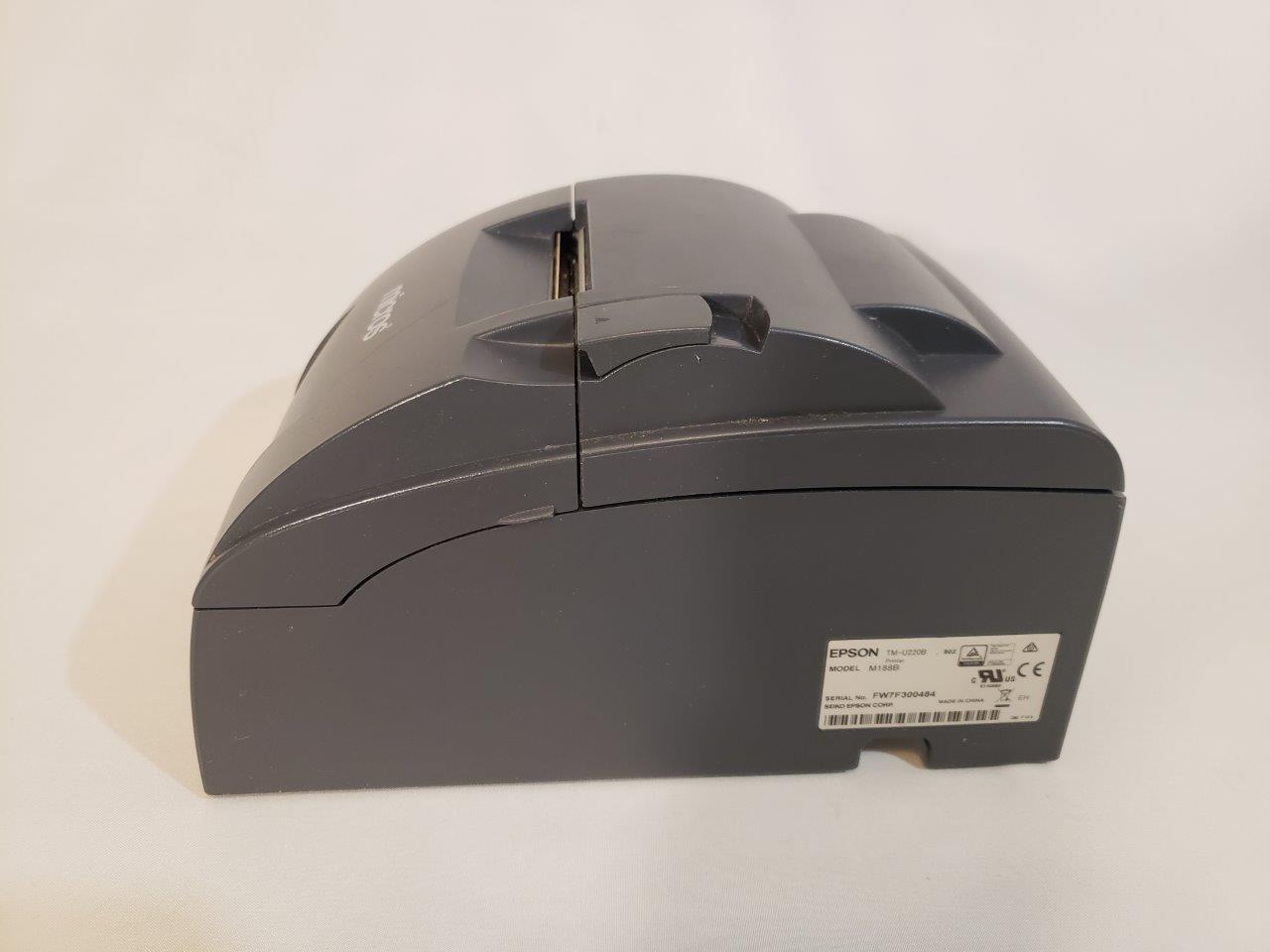

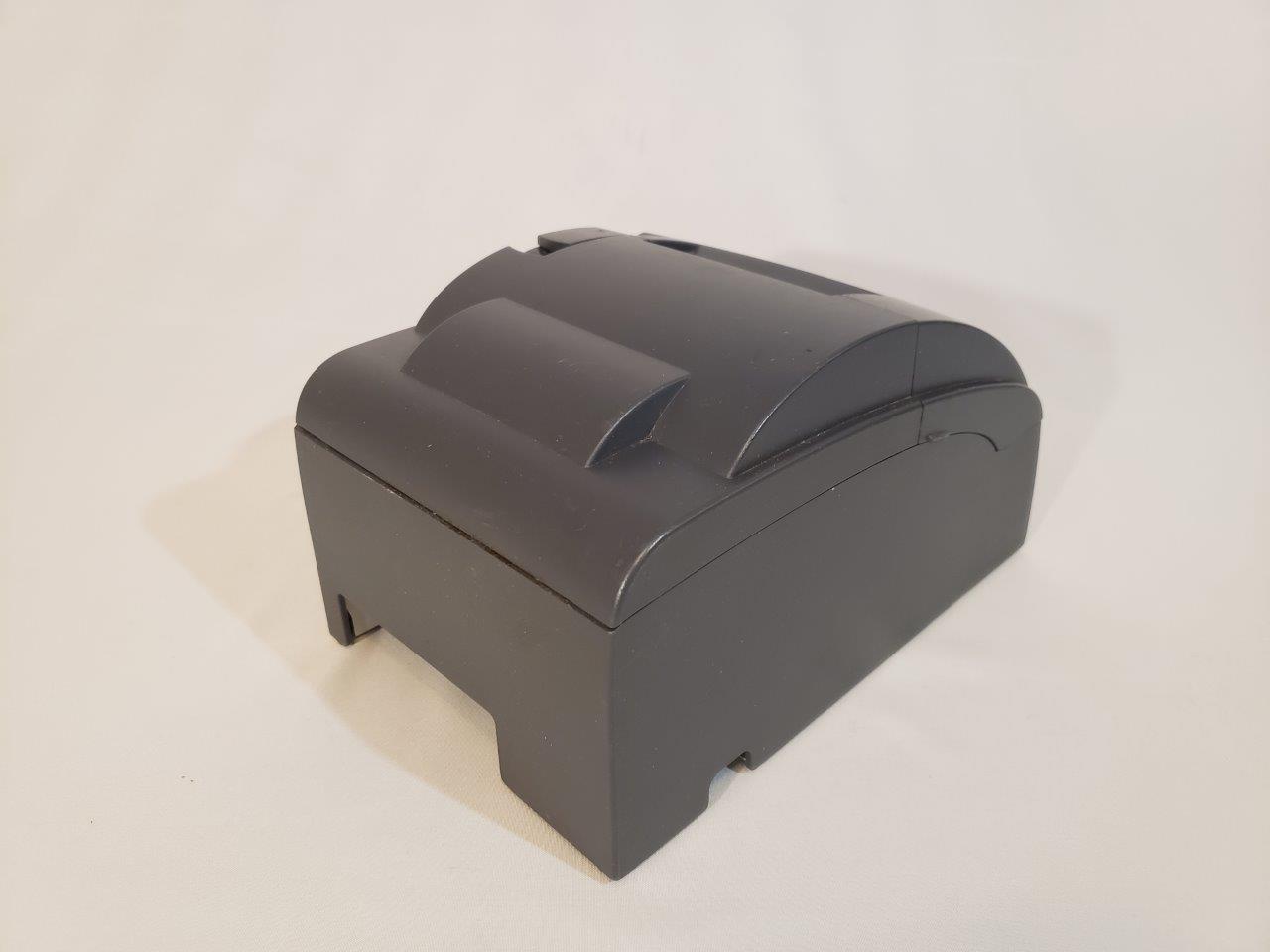

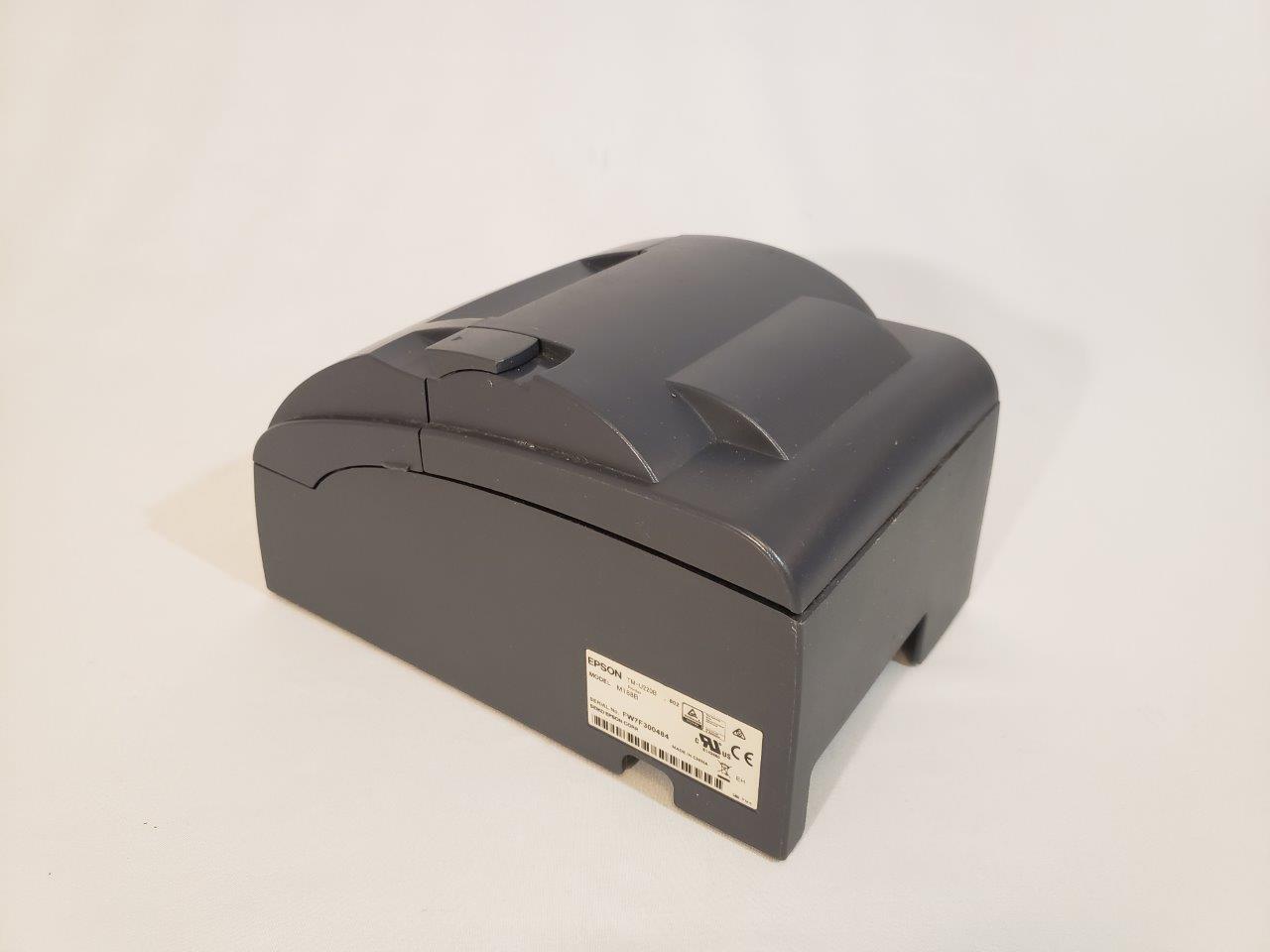

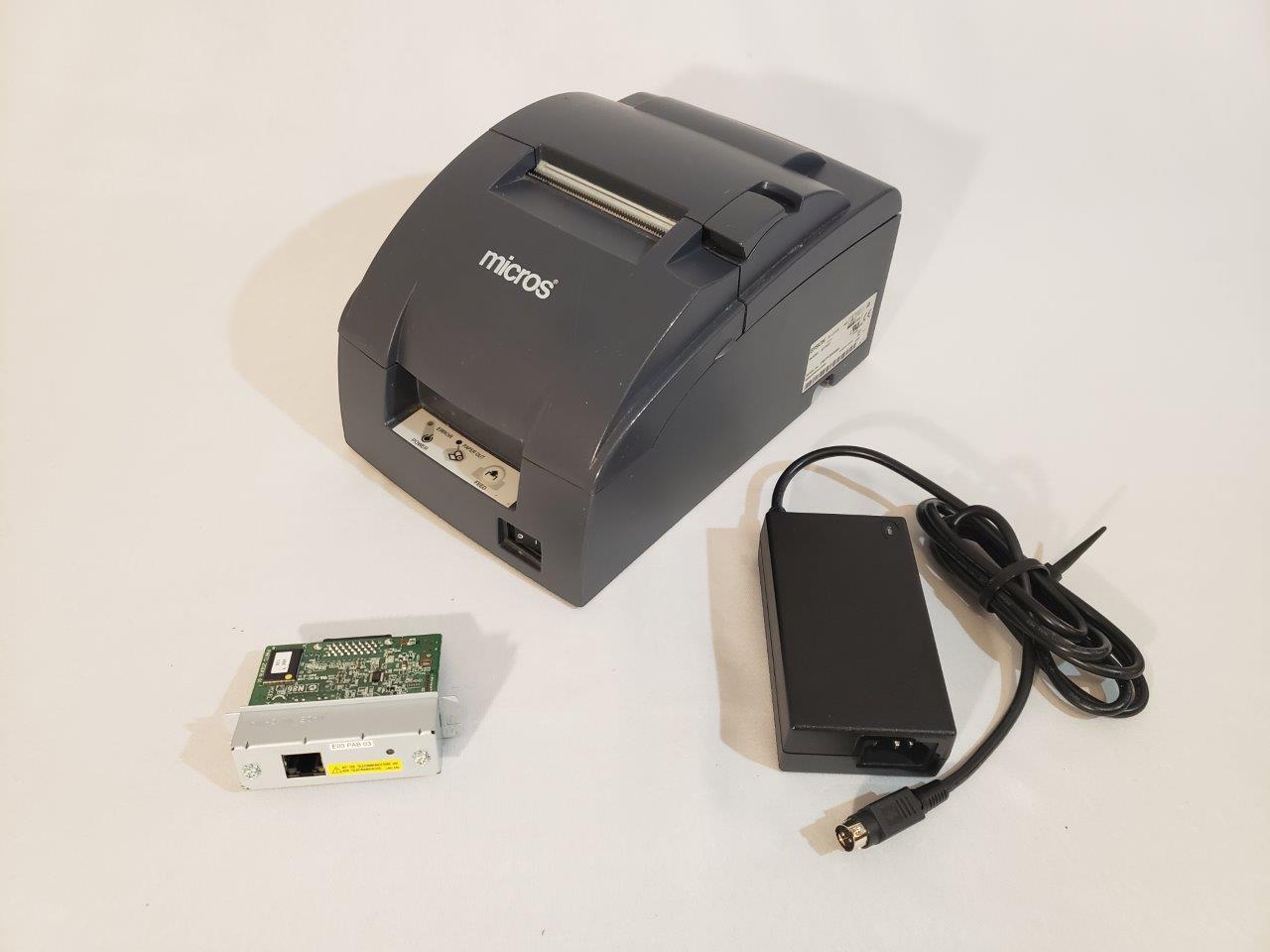

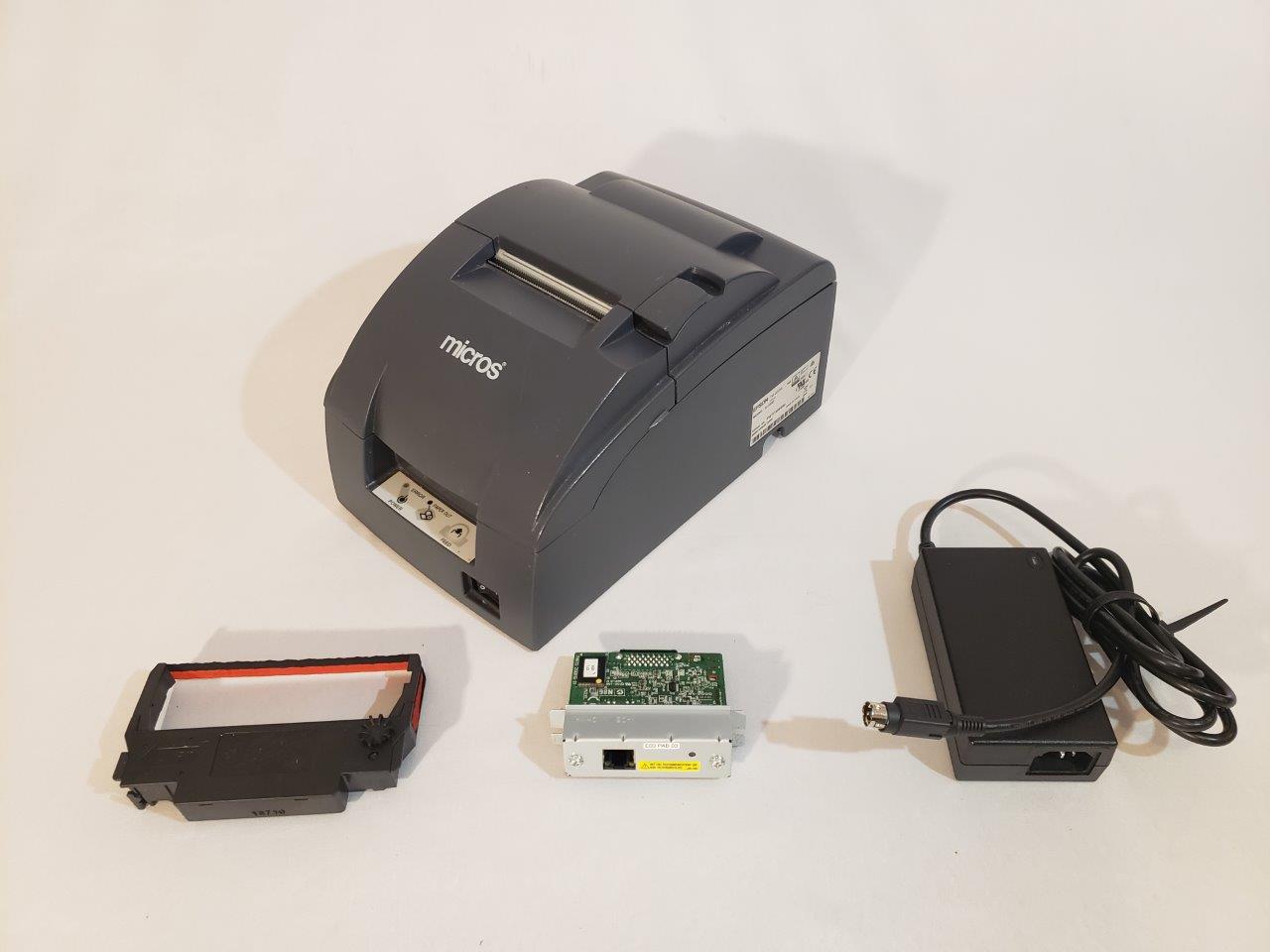

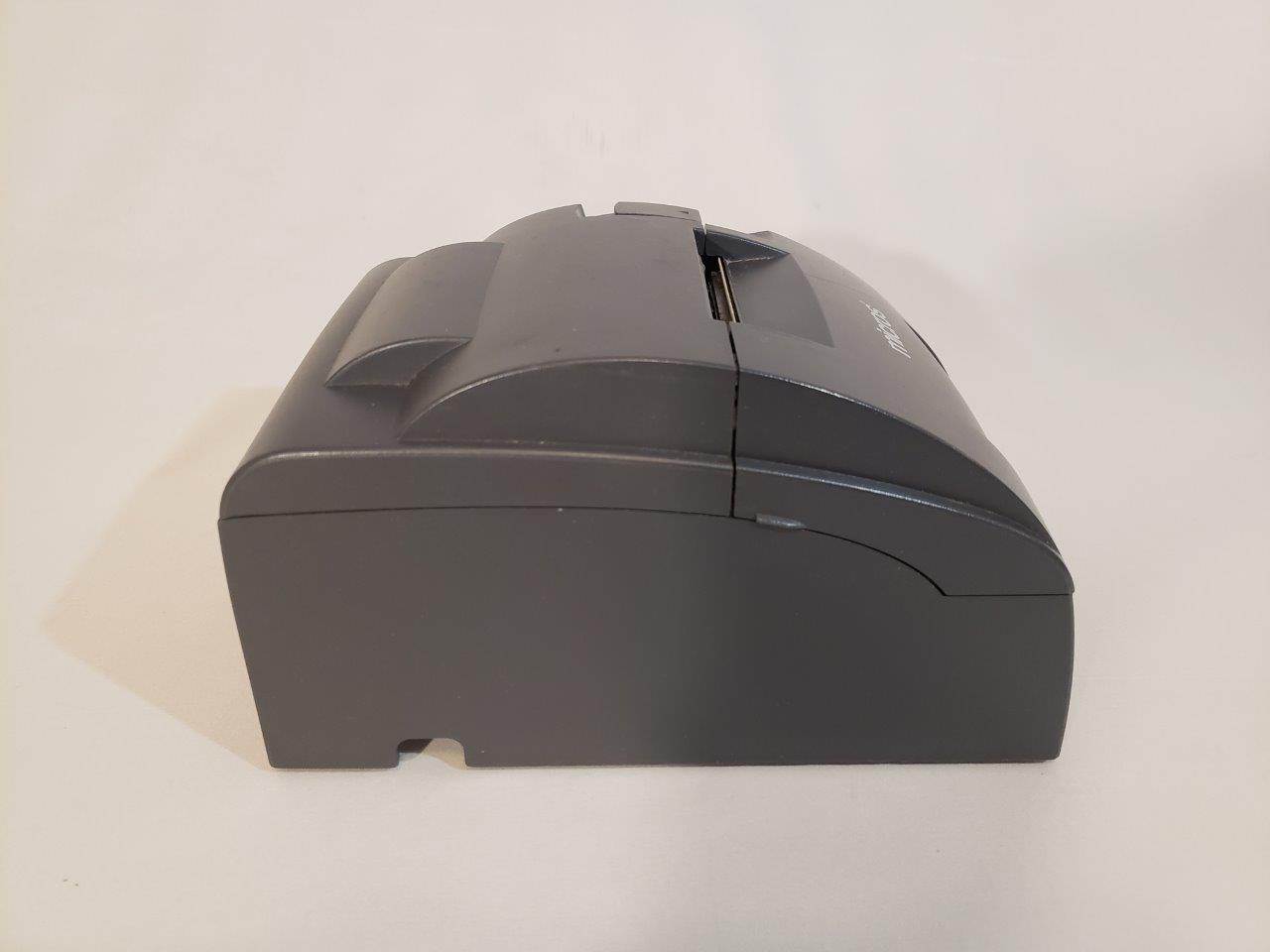

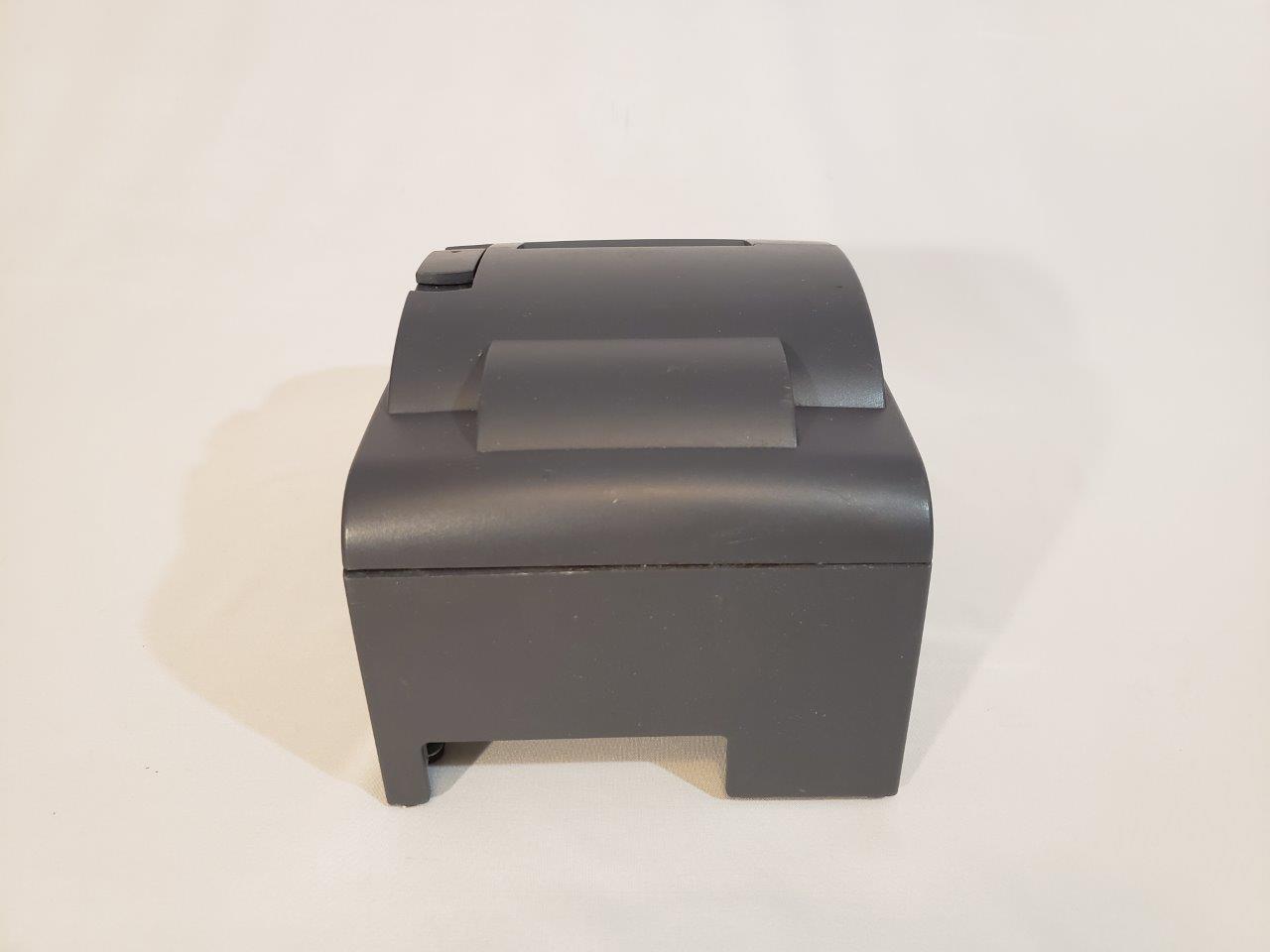

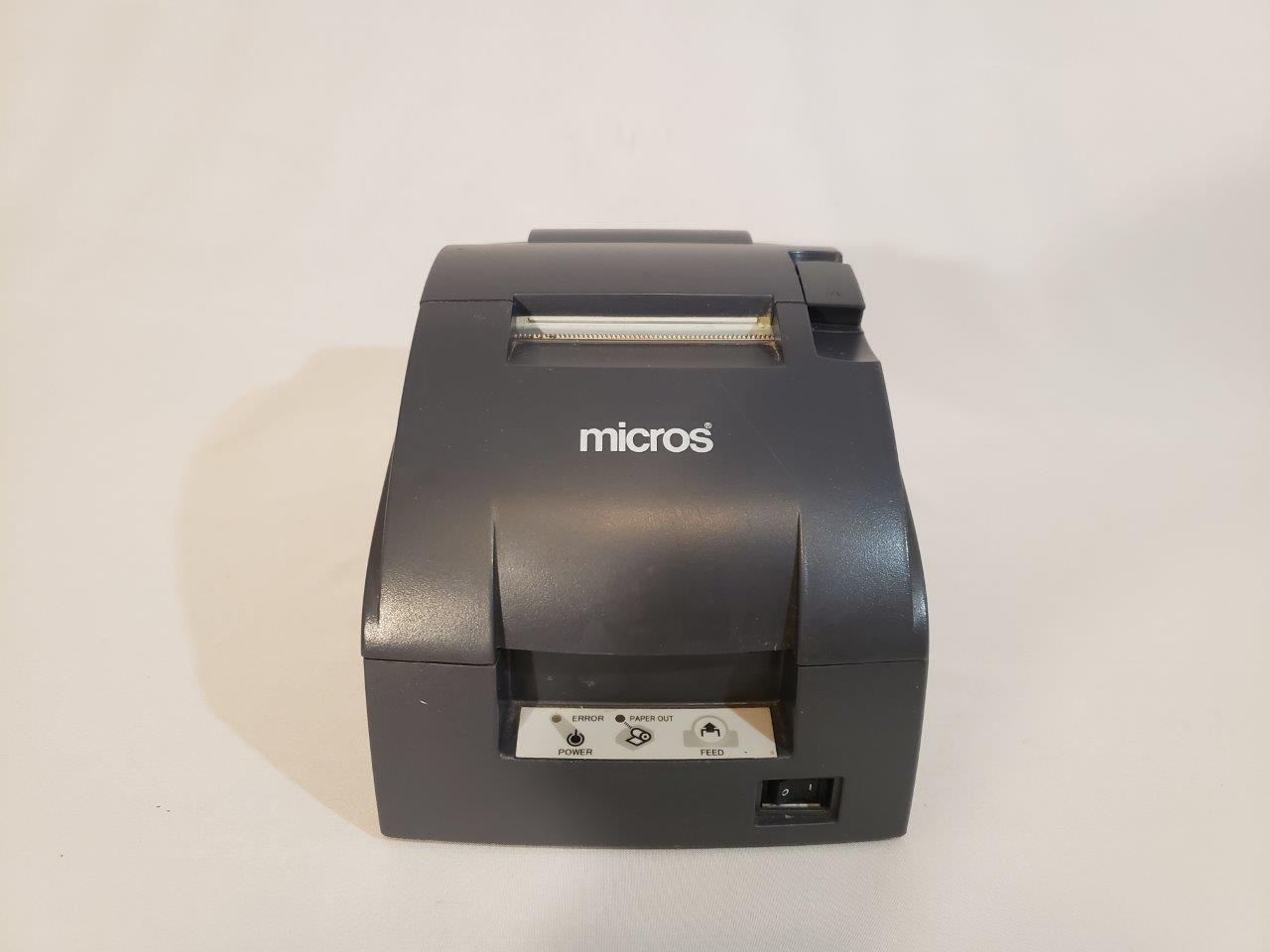

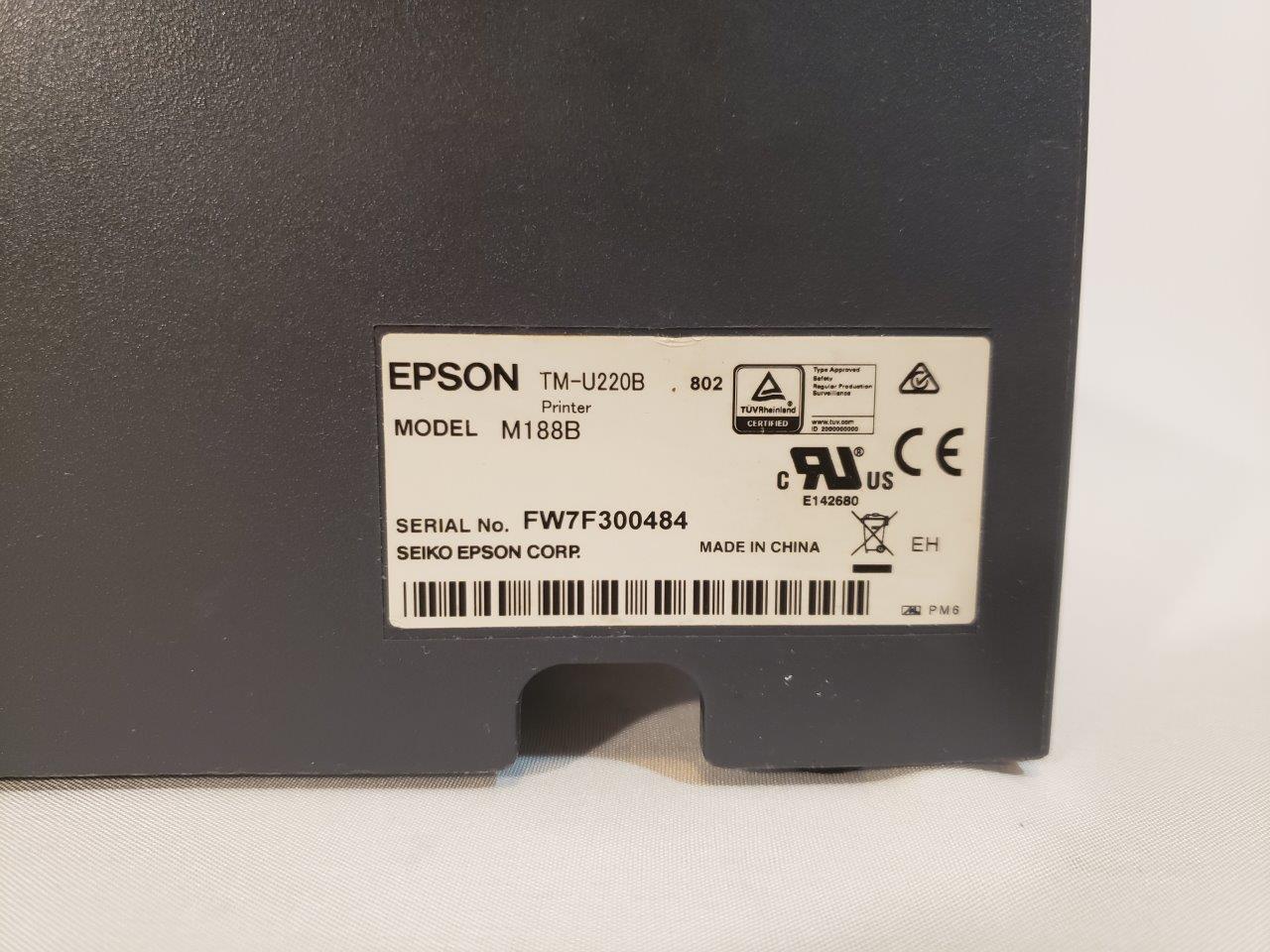

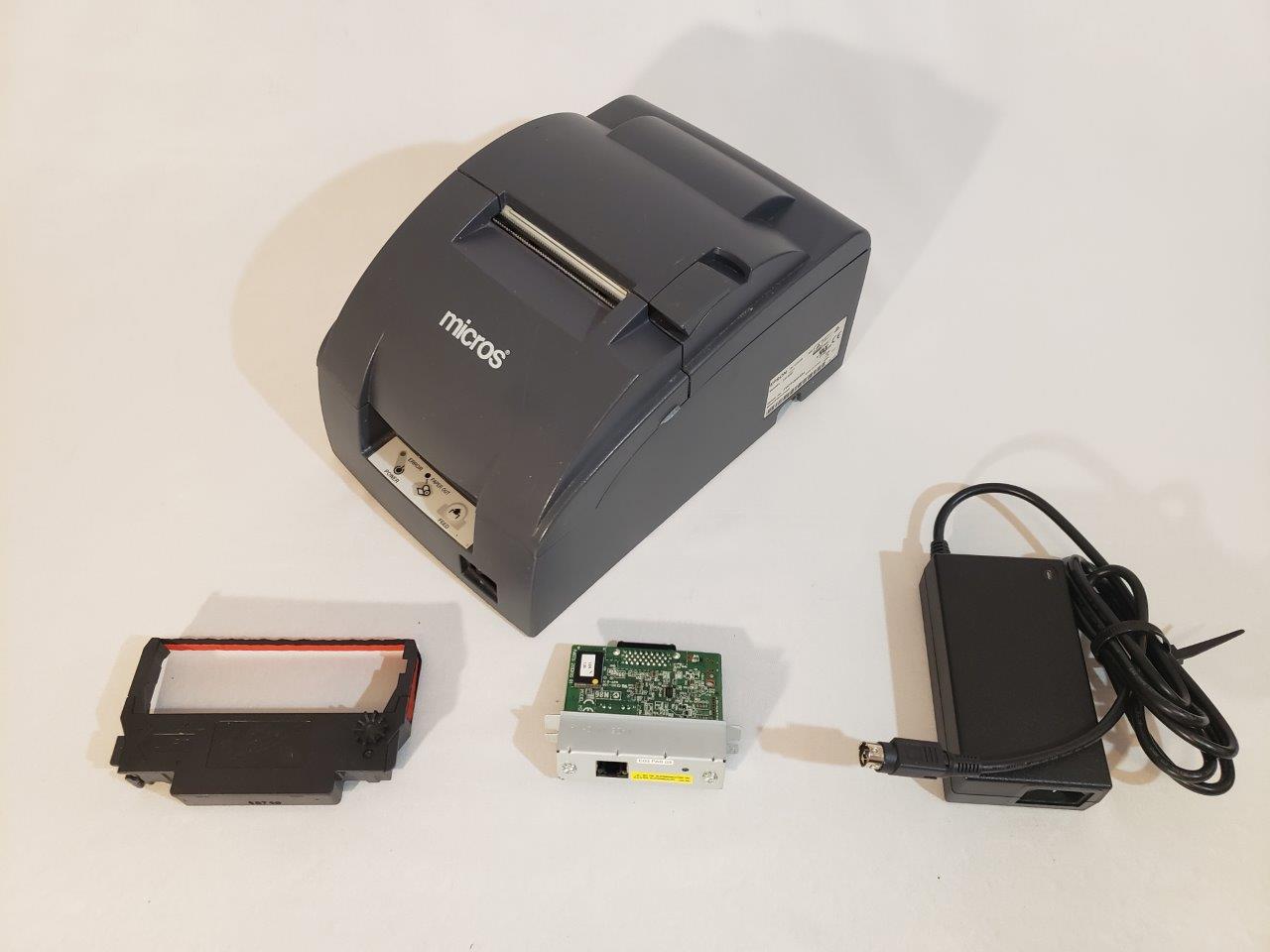

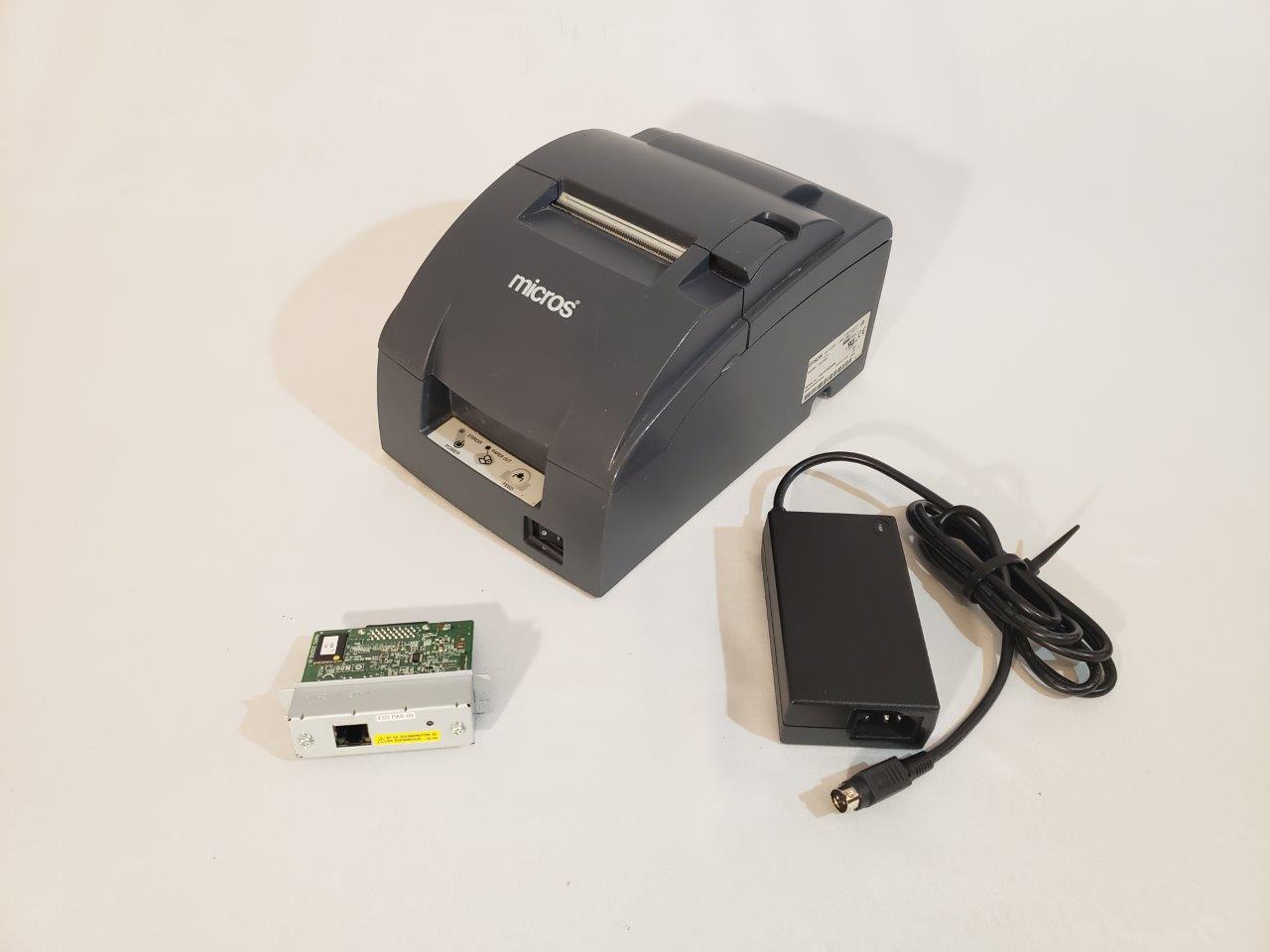

Epson TM-U220B M188B POS Receipt Printer Ethernet Interface – with Power Supply

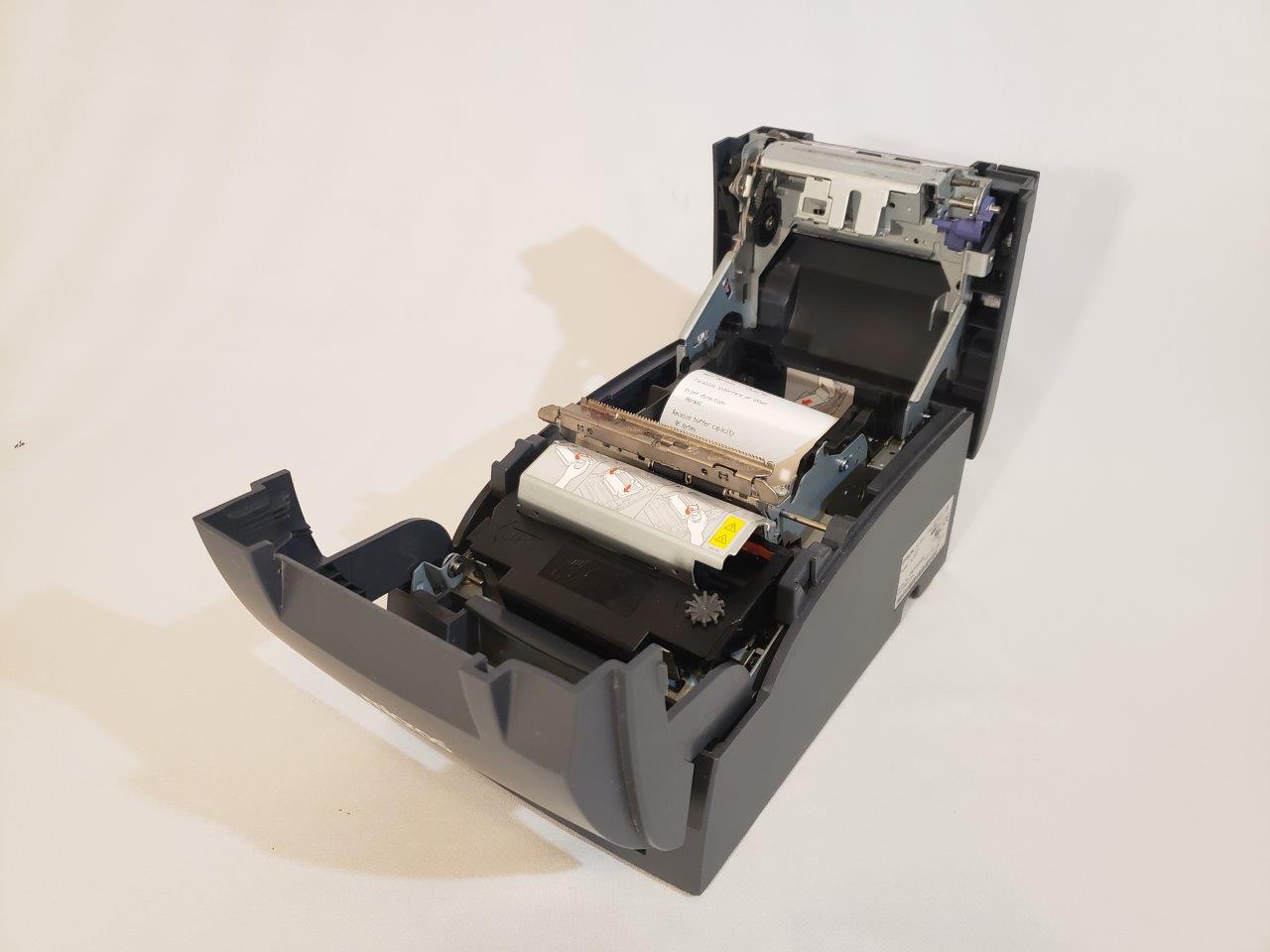

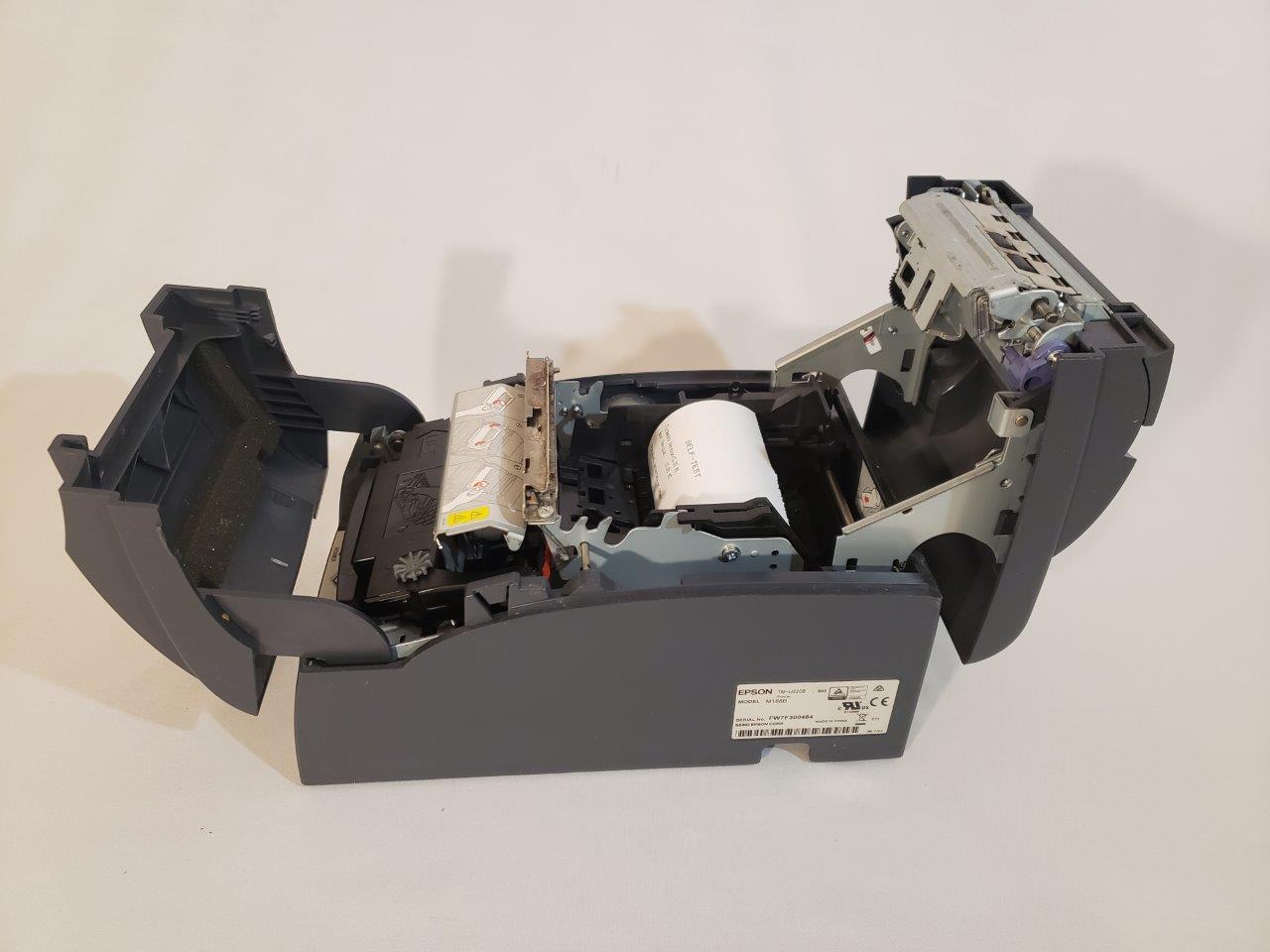

The TM-U220 is a robust, high performance impact receipt printer which is exceptionally easy to use. Featuring drop-in paper load, selectable auto-cutter and clamshell covers for easy access and maintenance, the TM-U220 is very reliable and prints on plain paper in three widths.
Features
– Flexible paper width: 76 / 69,5 / 58,5 mm

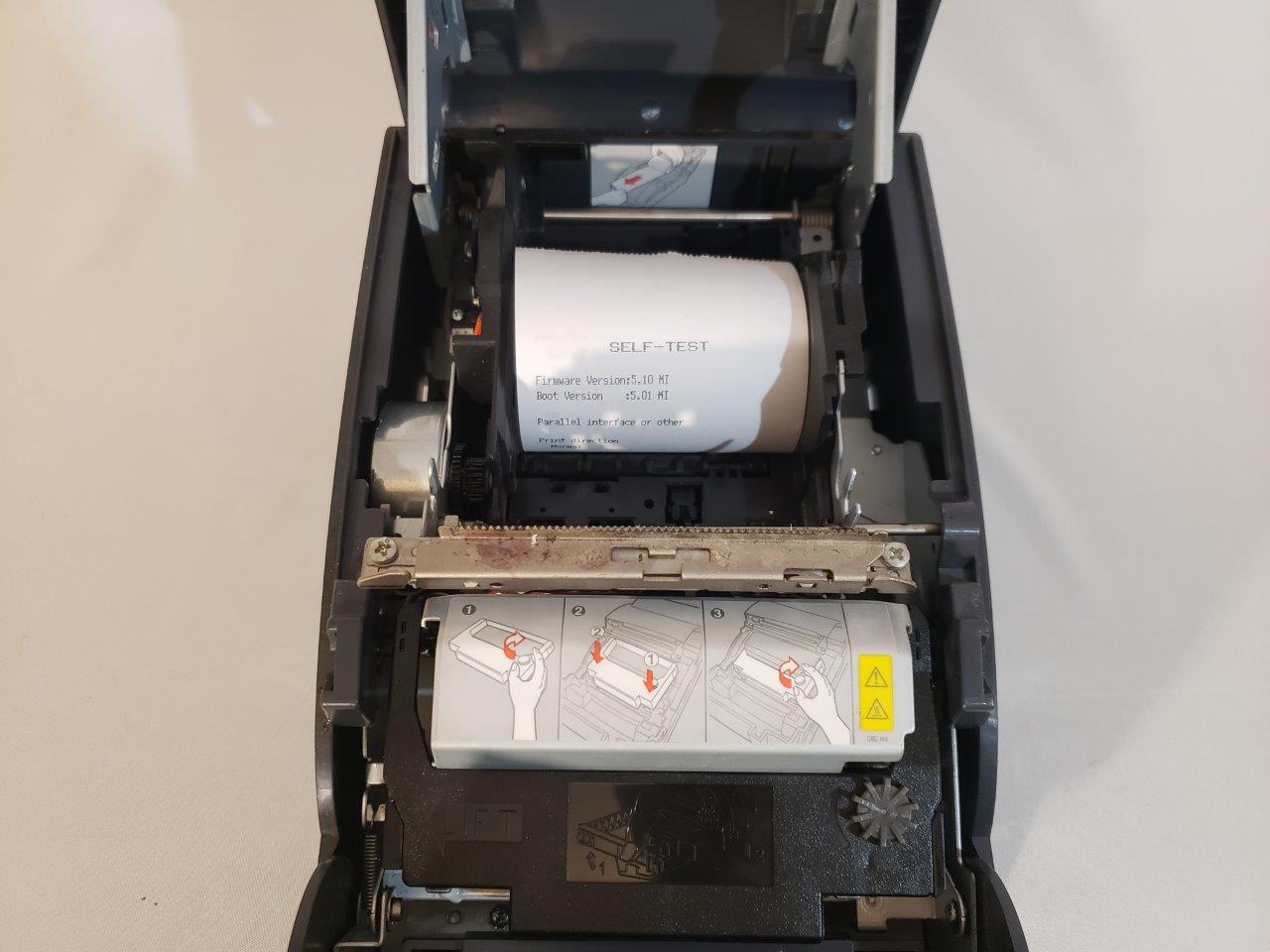

– Drop-in paper load
– Autocutter included
– High-speed printing through logical seeking control 6,0 lps (30cpl) / 4,7
– Wall mountable with optional kit

Specifications
Print method: 9-pin serial impact dot matrix
Technology: Serial Impact Dot Matrix
Print Speed: 4.70 lps (40 columns, 16.00 cpi)
Column capacity receipt: Paper width 76 mm, 33 / 40
Character size: 1.2 mm (W) x 3.1 mm (H) / 1.6 mm (W) x 3.1 mm (H)
Character set: 95 Alphanumeric, 48 International, 128 x 12 Graphic
Characters per inch: 13.3 cpi / 16 cpi
Paper Types: Receipt
Copy capability receipt: one copies plus one original
Paper size roll paper:
76.00 ± 0.50 (W) mm x dia 83.00 mm,
69.50 ± 0.50 (W) mm x dia 83.00 mm,
57.50 ± 0.50 (W) mm x dia 83.00 mm

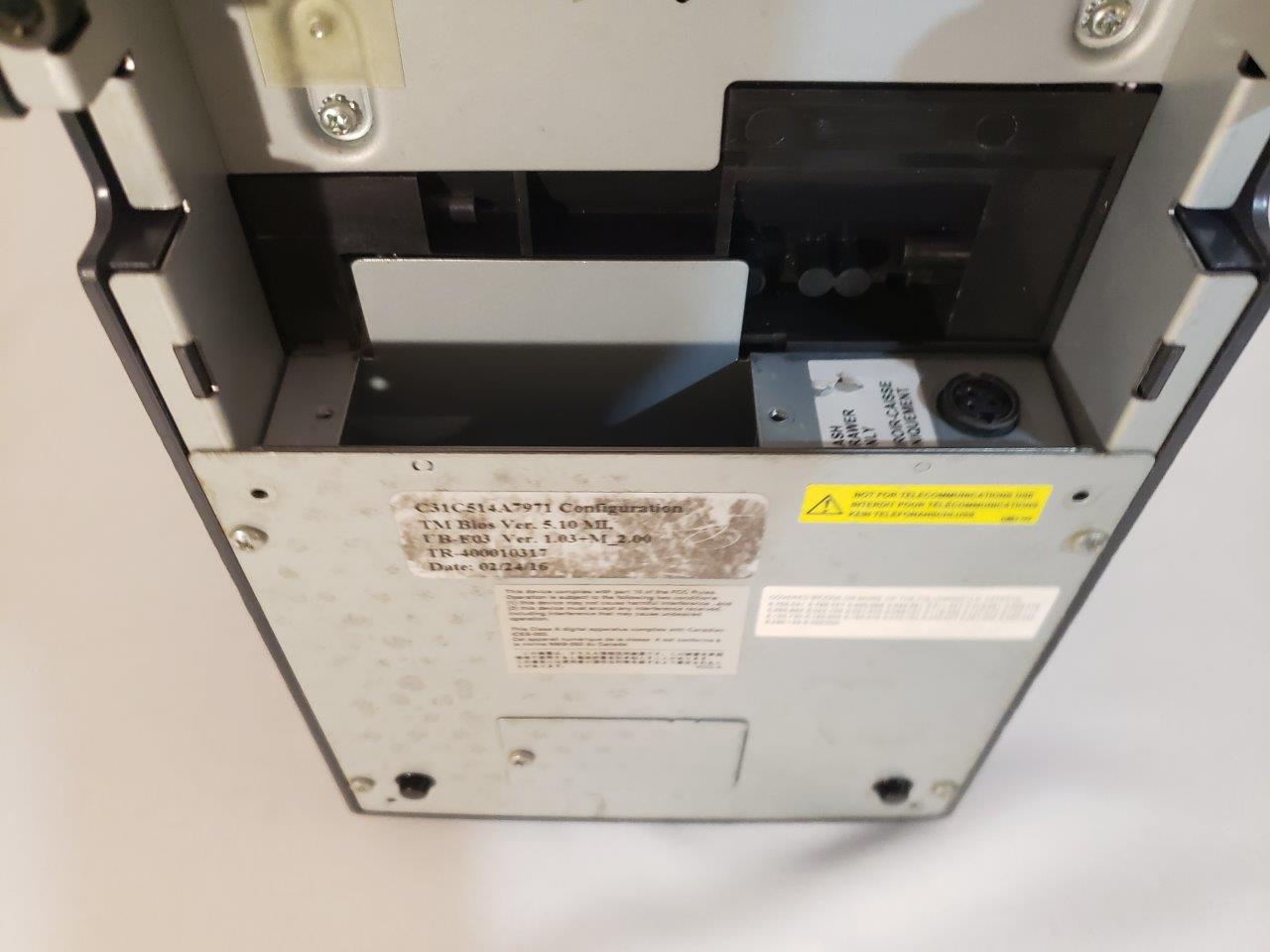

Interfaces: RS-232, Drawer kick-out, Bidirectional parallel
Power Supply: PS-180
Operating Voltage: 24 V
Product dimensions: 160‎ x 248 x 139 mm (Width x Depth x Height)
Product weight: 2.5 kg
Colour: Epson Dark Gray
Installation: horizontally, vertically with wall hanging bracket
Interface connectors: D.K.D. function (2 drivers)
Noise Level: Operation: 64 dB (A)
