Description

The second generation of RAK antennas for LoRa® incorporate high-performance omni-directional elements which support ultra high frequency (UHF) LoRa® bands (US915, AU915, KR920, and AS923).

Product Notice

This antenna is too long to be attached directly to your gateway. To avoid damaging your gateway connector especially in windy season, we recommend using a feeder line cable and secure the antenna with brackets.
This antenna cannot be used for the EU433 and CN470 frequencies.
Connector Options
IPEX: Small connector found on our concentrator cards like the RAK2287
RP-SMA: Connector found on our commercial and developer gateways, RAK Hotspot Miner and Helium™ Hotspot

Product Features

Frequency: 900-930MHz
Gain: 8.0dBi
VSWR: ≤1.5
Beamwidth: 360 degrees
Impedance: 50 Ohms
Polarization: Vertical
Radome Body: Fiberglass
Connector: N-Type Male
Bracket Inclusion: 2pcs brackets
Dimensions: 900 ± 20mm
Operation Temperature: -30°C~65°C
Storage Temperature: -30°C~75°C

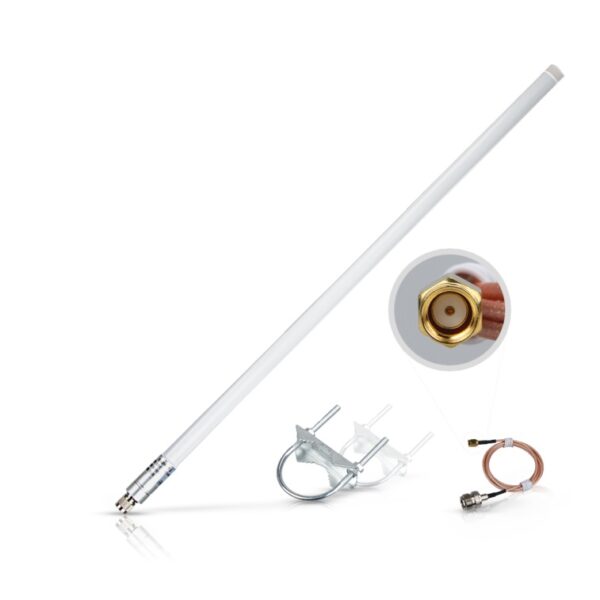

Package contents

1x Antenna
1x Pigtail interface converter
2x Mounting brackets
